基于能量感知的智能反射面輔助無人機時效數據收集策略

張濤 張遷 朱穎雯 代陳

張濤, 張遷, 朱穎雯, 代陳. 基于能量感知的智能反射面輔助無人機時效數據收集策略[J]. 電子與信息學報, 2025, 47(2): 427-438. doi: 10.11999/JEIT240866
引用本文: 張濤, 張遷, 朱穎雯, 代陳. 基于能量感知的智能反射面輔助無人機時效數據收集策略[J]. 電子與信息學報, 2025, 47(2): 427-438. doi: 10.11999/JEIT240866
ZHANG Tao, ZHANG Qian, ZHU Yingwen, DAI Chen. Energy Aware Reconfigurable Intelligent Surface Assisted Unmanned Aerial Vehicle Age of Information Enabled Data Collection Policies[J]. Journal of Electronics & Information Technology, 2025, 47(2): 427-438. doi: 10.11999/JEIT240866
Citation: ZHANG Tao, ZHANG Qian, ZHU Yingwen, DAI Chen. Energy Aware Reconfigurable Intelligent Surface Assisted Unmanned Aerial Vehicle Age of Information Enabled Data Collection Policies[J]. Journal of Electronics & Information Technology, 2025, 47(2): 427-438. doi: 10.11999/JEIT240866

基于能量感知的智能反射面輔助無人機時效數據收集策略

doi: 10.11999/JEIT240866 cstr: 32379.14.JEIT240866
基金項目: 國家自然科學基金(62402232),江蘇省高等學校自然科學研究項目(23KJB520024)
詳細信息
    作者簡介:

    張濤:男,博士,研究方向?yàn)闊o線異構網絡、通感一體低空網絡、自主決策技術、智能化無線網絡

    張遷:男,博士,研究方向?yàn)橛?jì)算機視覺、5gnr

    朱穎雯:女,副教授,研究方向?yàn)閿?shù)據挖掘、人工智能、機器學習

    代陳:男,博士,研究方向?yàn)槿怦町悩?gòu)網絡、感傳算一體網絡

    通訊作者:

    張遷 zhangqian@jsou.edu.cn

  • 中圖分類號: TN929.5

Energy Aware Reconfigurable Intelligent Surface Assisted Unmanned Aerial Vehicle Age of Information Enabled Data Collection Policies

Funds: The National Natural Science Foundation of China (62402232), The Natural Science Foundation of the Jiangsu Higher Education Institutions of China (23KJB520024)
  • 摘要: 為了應對智能反射面(RIS)輔助的無人機(UAV)在物聯網數據收集過程中能量高效利用與信息收集時效性之間的均衡問題,該文提出一種基于深度強化學習的數據收集優化策略。針對無人機在數據采集過程中的飛行能耗、通信復雜性及采集信息時效性(AoI)約束,設計了一種基于雙深度Q網絡(DDQN)的聯合優化方案,涵蓋無人機軌跡規劃、物聯網設備調度以及智能反射面相位調整。該方案有效緩解了傳統Q學習方法中Q值過估計的問題,使無人機能夠根據實時環境動態調整飛行軌跡和通信策略,從而在提升數據傳輸效率的同時降低能量消耗。仿真結果表明,與傳統方法相比,所提方案能夠顯著提高數據收集效率。此外,通過合理分配能量與通信資源,所提方案能夠動態適應不同通信環境參數變化,確保系統在能耗與AoI之間達到最佳均衡。

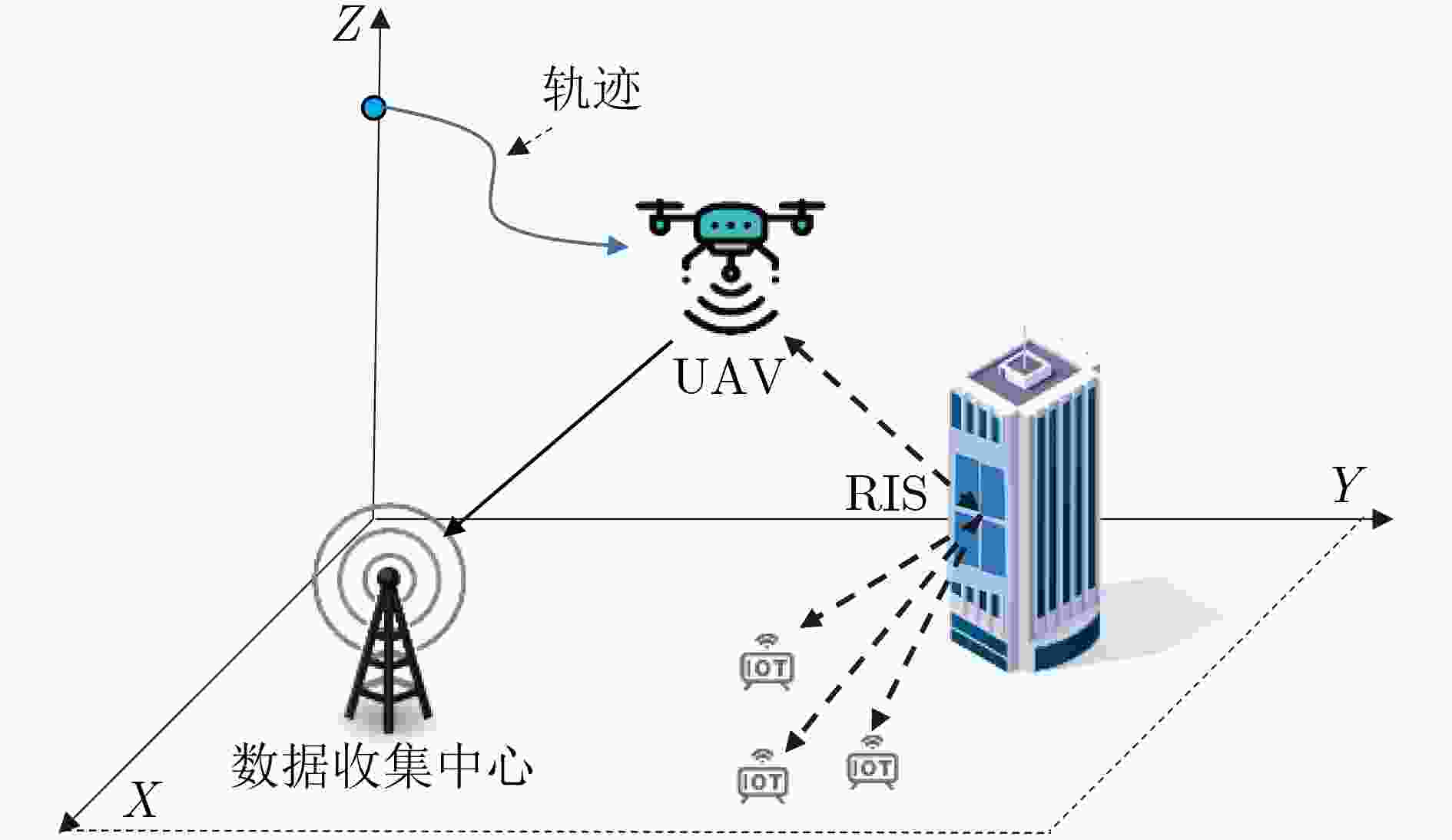

  • 圖  1  RIS輔助UAV數據收集模型

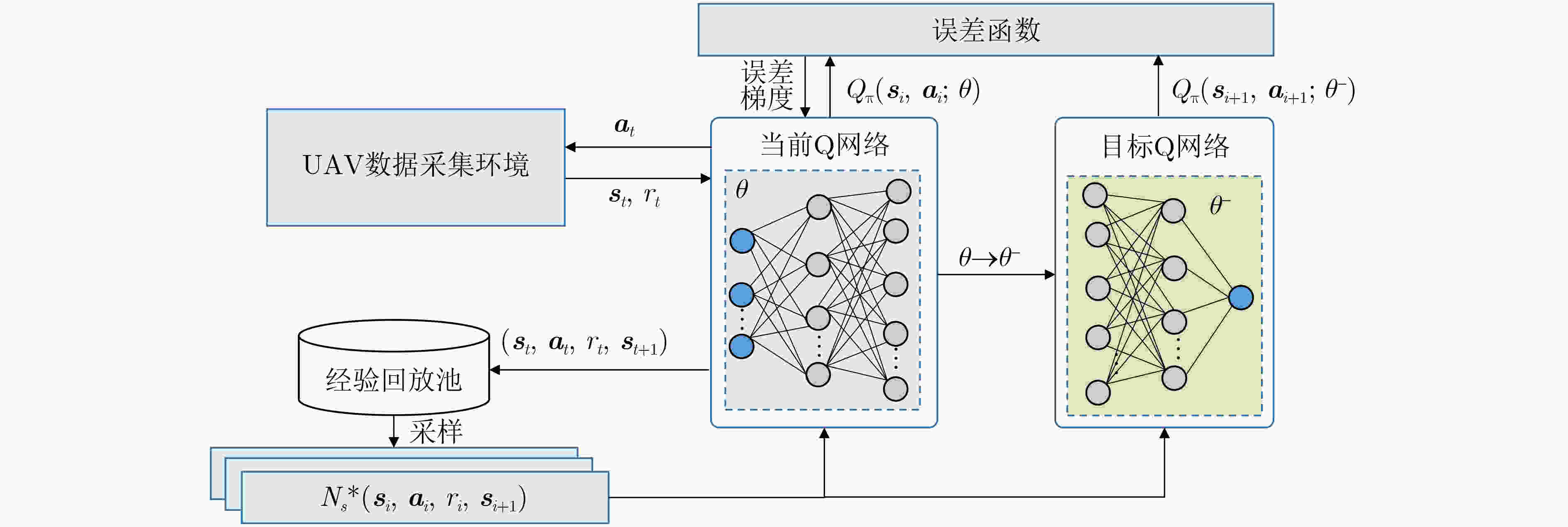

    圖  2  RIS輔助UAV時效數據收集策略結構

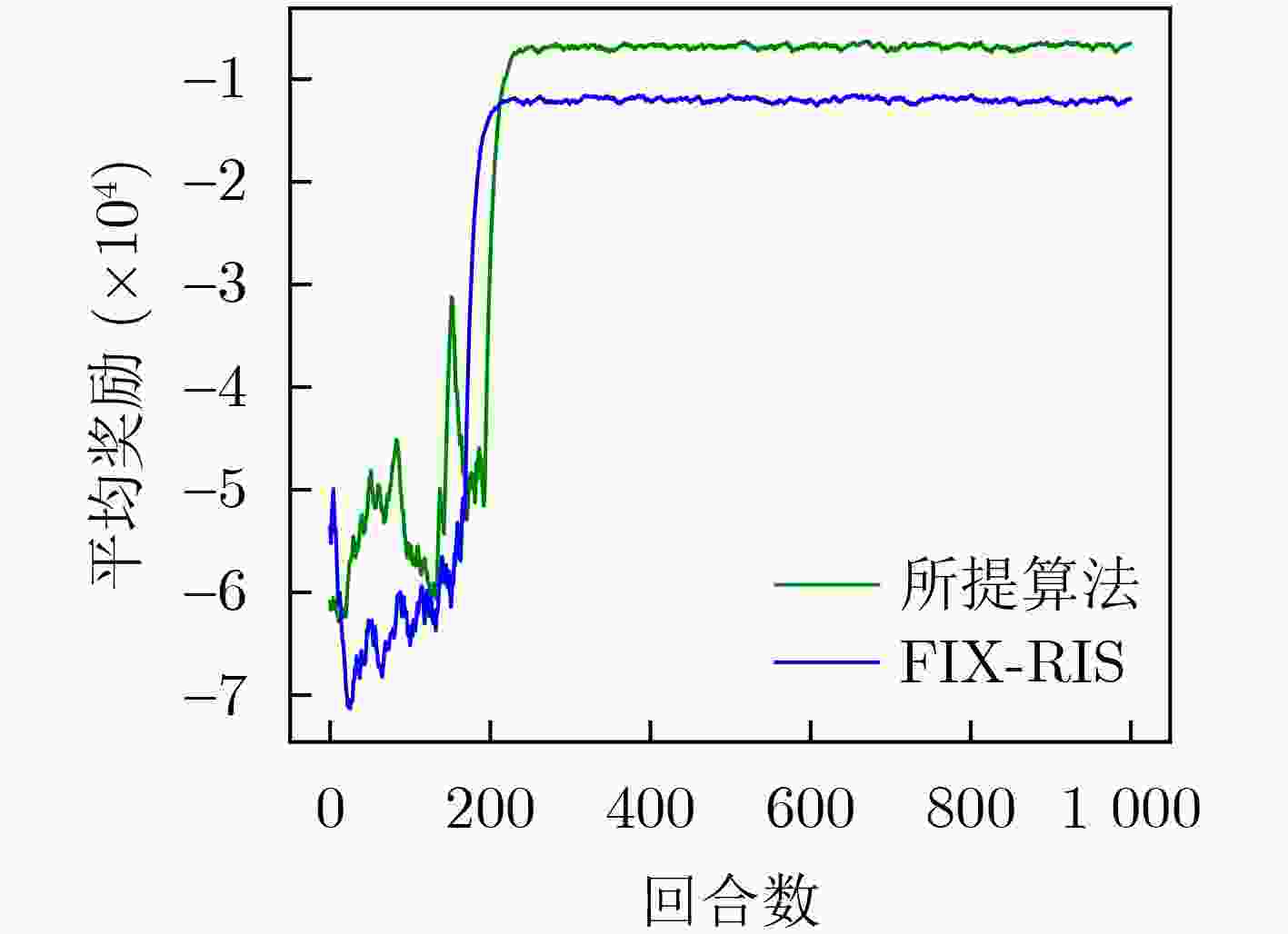

    圖  3  收斂曲線

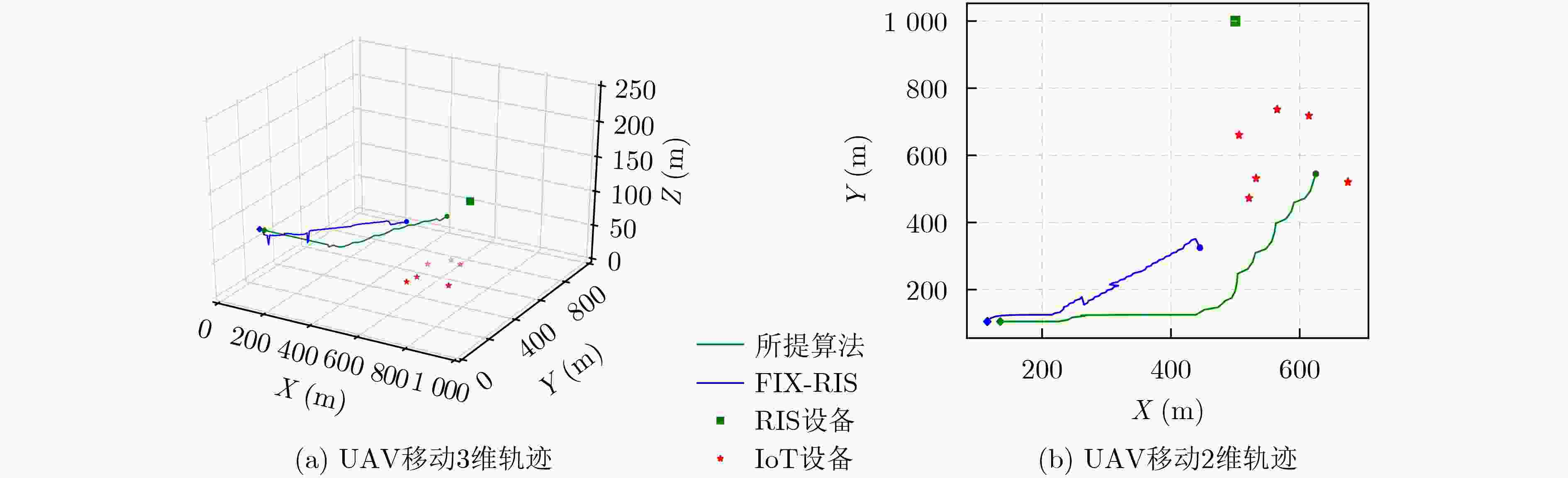

    圖  4  UAV移動軌跡圖

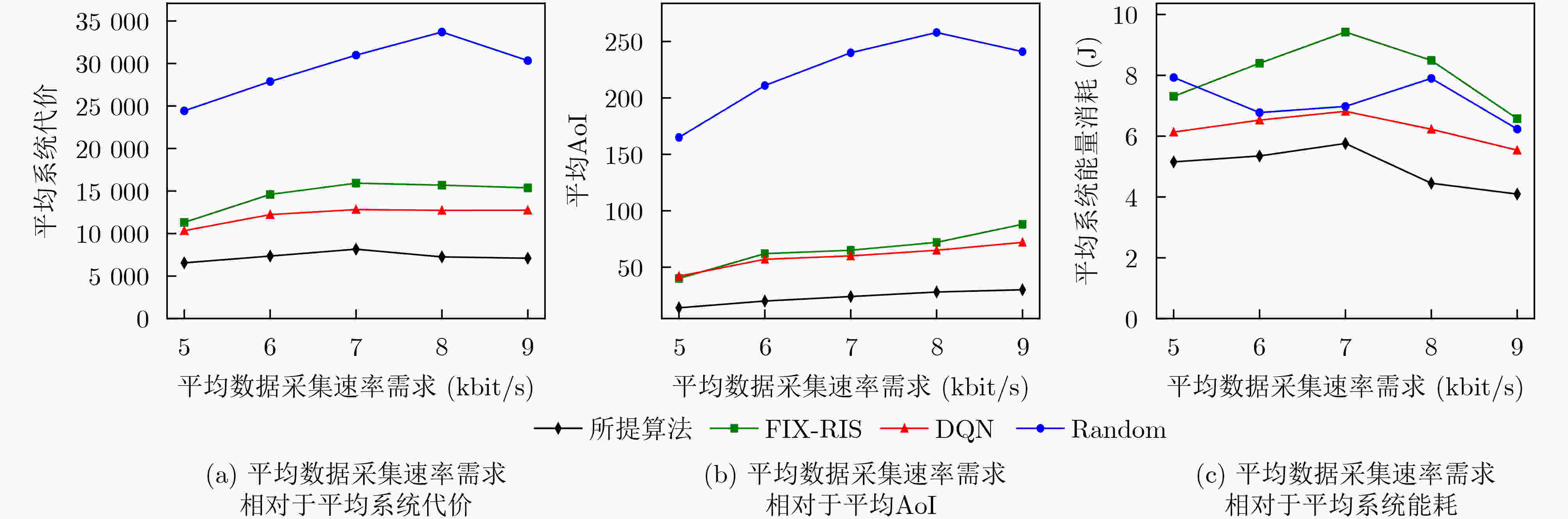

    圖  5  平均數據采集速率需求對優化性能的影響

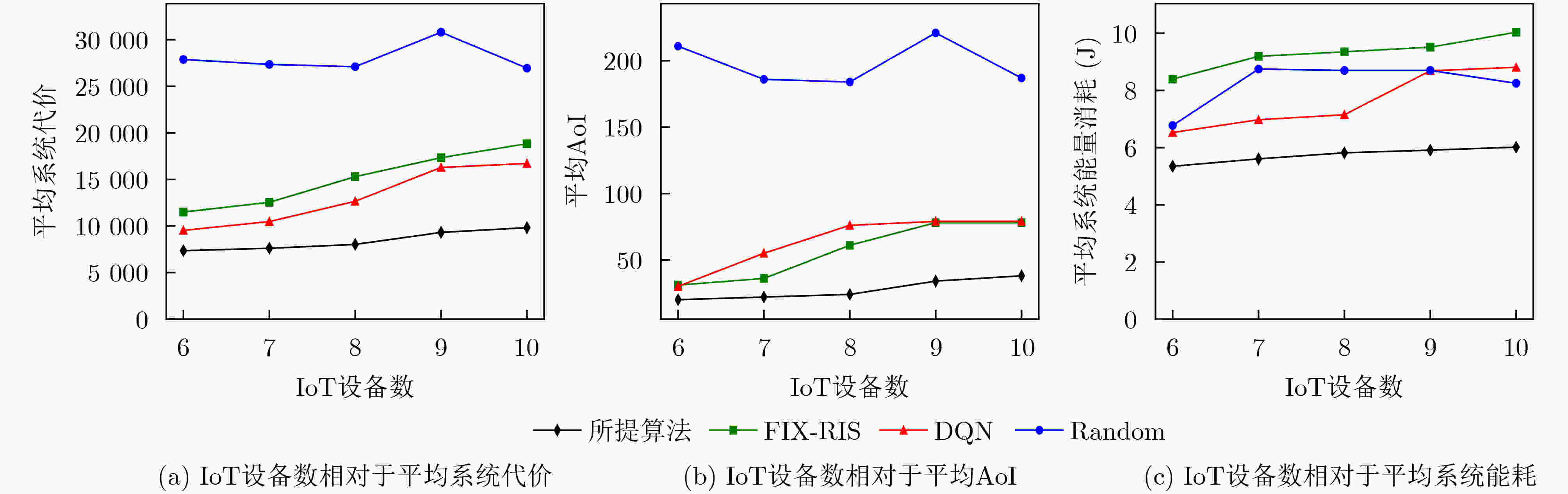

    圖  6  IoT設備數對優化性能的影響

    1  基于DDQN的UAV數據采集算法

     輸入:UAV觀測到的環境狀態
     輸出:UAV軌跡和IoT設備調度策略
     (1) 隨機初始化神經網絡參數
     (2) for episode = 1,2,···,NEP do
     (3)  初始化仿真環境參數
     (4)  for t = 1,2,···,T do
     (5)   根據$ {Q_\pi }({\boldsymbol{s}},{\boldsymbol{a}};\theta ) $選取狀態$ {\boldsymbol{s}} $對應的動作a;
     (6)   根據式(31)獲得RIS的相位偏移;
     (7)   執行動作控制UAV飛行和IoT調度后,使用式(23)計算
         瞬時獎勵$ r $并獲得下一時刻的狀態$ {\boldsymbol{s}}' $;
     (8)   if UAV移動躍出邊界 do
     (9)    狀態回滾$ {\boldsymbol{s}}' \leftarrow {\boldsymbol{s}} $,為$ r $添加懲罰項;
     (10)   將環境數據$ ({\boldsymbol{s}},{\boldsymbol{a}},{{r}},{\boldsymbol{s}}') $存入經驗池;
     (11)   if 經驗池存滿數據 do
     (12)    從經驗池取出Ns個樣本;
     (13)    對于每個樣本,用目標值網絡計算式(29);
     (14)    更新當前Q網絡以最小化損失式(30);
     (15)    每隔一定步長$ {\theta ^ - } \leftarrow \theta $;
     (16)  end
     (17) end
    下載: 導出CSV

    表  1  主要仿真參數

    參數 數值
    $ {x^{{\text{MAX}}}} $, $ {y^{{\text{MAX}}}} $(m) 1 000, 1 000
    $ L $,$ {z^{{\text{MIN}}}} $, $ {z^{{\text{MAX}}}} $(m) 10, 60, 80
    $ {l_t} $(m) {0, 1, 2}
    $ {c_1} $, $ {c_2} $ 12.081, 0.113 95[7]
    $ {\mu ^{{\text{LoS}}}} $ , $ {\mu ^{{\text{NLoS}}}} $ 1.445 44, 199.526[7]
    $ {K_1} $, $ {K_2} $ 3, 4
    $ \rho $, $ \beta $ (dBm) –30, –50[8]
    $ {\delta _1} $, $ {\delta _2} $(dBm/Hz) –174, –174
    $ {B_1} $, $ {B_2} $(MHz) 2, 2
    $ {P_1} $, $ {P_2} $(W) 0.5, 0.8
    $ {P_{\mathrm{B}}} $, $ {P_{\mathrm{I}}} $, $ {P_{\mathrm{V}}} $ 88.63, 79.85, 11.46
    $ {\zeta _1} $, $ {\zeta _2} $, $ {\zeta _3} $, $ {\zeta _4} $ 100, 1, 10, 10
    $ \varLambda $, $ \varXi $ 0.6, 0.05
    $ {U_{{\text{tip}}}} $(m/s) 120[29]
    $ \varUpsilon $(kg/m3) 1.225[29]
    $ G $(m2) 0.503[29]
    $ \chi $(bit) 1 000
    下載: 導出CSV
  • [1] 段潔, 胡顯靜, 林歡, 等. 面向物聯網數據特征的信息中心網絡緩存方案[J]. 電子與信息學報, 2021, 43(8): 2240–2248. doi: 10.11999/JEIT200631.

    DUAN Jie, HU Xianjing, LIN Huan, et al. Information-centric networking caching scheme for data characteristics of internet of things[J]. Journal of Electronics & Information Technology, 2021, 43(8): 2240–2248. doi: 10.11999/JEIT200631.
    [2] JAVAID S, SAEED N, QADIR Z, et al. Communication and control in collaborative UAVs: Recent advances and future trends[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24(6): 5719–5739. doi: 10.1109/TITS.2023.3248841.
    [3] 劉志新, 趙松晗, 楊毅, 等. 智能反射面輔助的無人機無線攜能通信網絡吞吐量最大化算法研究[J]. 電子與信息學報, 2022, 44(7): 2325–2331. doi: 10.11999/JEIT220195.

    LIU Zhixin, ZHAO Songhan, YANG Yi, et al. Throughput maximization algorithm for intelligent reflecting surface-aided unmanned aerial vehicle communication networks with wireless energy transfer[J]. Journal of Electronics & Information Technology, 2022, 44(7): 2325–2331. doi: 10.11999/JEIT220195.
    [4] 張?jiān)阼? 江浩. 智能超表面使能無人機高能效通信信道建模與傳輸機理分析[J]. 電子學報, 2023, 51(10): 2623–2634. doi: 10.12263/DZXB.20221352.

    ZHANG Zaichen and JIANG Hao. Channel modeling and characteristics analysis for high energy-efficient RIS-assisted UAV communications[J]. Acta Electronica Sinica, 2023, 51(10): 2623–2634. doi: 10.12263/DZXB.20221352.
    [5] SAVKIN A V, HUANG Chao, and NI Wei. Joint multi-UAV path planning and LoS communication for mobile-edge computing in IoT networks with RISs[J]. IEEE Internet of Things Journal, 2023, 10(3): 2720–2727. doi: 10.1109/JIOT.2022.3215255.
    [6] SAVKIN A V, HUANG Chao, and NI Wei. Collision-free 3-D navigation of a UAV team for optimal data collection in Internet-of-Things networks with reconfigurable intelligent surfaces[J]. IEEE Systems Journal, 2023, 17(3): 4070–4077. doi: 10.1109/JSYST.2023.3269095.
    [7] LIN Xinzhong, XIE Cong, XIE Wenwu, et al. Security performance analysis of RIS-assisted UAV wireless communication in industrial IoT[J]. The Journal of Supercomputing, 2022, 78(4): 5957–5973. doi: 10.1007/s11227-021-04095-7.
    [8] ZHAI Liangsen, ZOU Yulong, ZHU Jia, et al. RIS-assisted UAV-enabled wireless powered communications: System modeling and optimization[J]. IEEE Transactions on Wireless Communications, 2024, 23(5): 5094–5108. doi: 10.1109/TWC.2023.3324500.
    [9] RANJHA A and KADDOUM G. URLLC facilitated by mobile UAV relay and RIS: A joint design of passive beamforming, blocklength, and UAV positioning[J]. IEEE Internet of Things Journal, 2021, 8(6): 4618–4627. doi: 10.1109/JIOT.2020.3027149.
    [10] ESKANDARI M, HUANG Hailong, SAVKIN A V, et al. Model predictive control-based 3D navigation of a RIS-equipped UAV for LoS wireless communication with a ground intelligent vehicle[J]. IEEE Transactions on Intelligent Vehicles, 2023, 8(3): 2371–2384. doi: 10.1109/TIV.2022.3232890.
    [11] LI Linpei, GUAN Wanqing, ZHAO Chuan, et al. Trajectory planning, phase shift design, and IoT devices association in flying-RIS-assisted mobile edge computing[J]. IEEE Internet of Things Journal, 2024, 11(1): 147–157. doi: 10.1109/JIOT.2023.3300700.
    [12] AL-HILO A, SAMIR M, ELHATTAB M, et al. RIS-assisted UAV for timely data collection in IoT networks[J]. IEEE Systems Journal, 2023, 17(1): 431–442. doi: 10.1109/JSYST.2022.3215279.
    [13] TYROVOLAS D, MEKIKIS P V, TEGOS S A, et al. Energy-aware design of UAV-mounted RIS networks for IoT data collection[J]. IEEE Transactions on Communications, 2023, 71(2): 1168–1178. doi: 10.1109/TCOMM.2022.3229672.
    [14] LIU Jianghu and ZHANG Hongtao. Height-fixed UAV enabled energy-efficient data collection in RIS-aided wireless sensor networks[J]. IEEE Transactions on Wireless Communications, 2023, 22(11): 7452–7463. doi: 10.1109/TWC.2023.3250988.
    [15] ALMASOUD A M. Robust anti-jamming technique for UAV data collection in IoT using landing platforms and RIS[J]. IEEE Access, 2023, 11: 70635–70651. doi: 10.1109/ACCESS.2023.3294596.
    [16] YANG Bowen, YU Yao, LI Jianqi, et al. An AoI-guaranteed sensor data collection strategy for RIS-assisted UAV communication system[C]. 2023 IEEE/CIC International Conference on Communications in China, Dalian, China, 2023: 1–6. doi: 10.1109/ICCC57788.2023.10233285.
    [17] SAMIR M, ELHATTAB M, ASSI C, et al. Optimizing age of information through aerial reconfigurable intelligent surfaces: A deep reinforcement learning approach[J]. IEEE Transactions on Vehicular Technology, 2021, 70(4): 3978–3983. doi: 10.1109/TVT.2021.3063953.
    [18] HUANG Hongli, LIU Juan, and XIE Lingfu. Intelligent reflecting surface-assisted fresh data collection in UAV communications[C]. The 11th International Conference in Communications, Signal Processing, and Systems, Singapore, 2022: 189–197. doi: 10.1007/978-981-99-2362-5_24.
    [19] XIAO Xiongbing, WANG Xiumin, and LIN Weiwei. Joint AoI-aware UAVs trajectory planning and data collection in UAV-based IoT systems: A deep reinforcement learning approach[J]. IEEE Transactions on Consumer Electronics, 2024, 70(4): 6484–6495. doi: 10.1109/TCE.2024.3440406.
    [20] JIANG Wenwen, AI Bo, LI Mushu, et al. Average age-of-information minimization in aerial IRS-assisted data delivery[J]. IEEE Internet of Things Journal, 2023, 10(17): 15133–15146. doi: 10.1109/JIOT.2023.3264618.
    [21] CHEN Zhen, GUO Yeyong, ZHANG Peichang, et al. Physical layer security improvement for hybrid RIS-assisted MIMO communications[J]. IEEE Communications Letters, 2024, 28(11): 2493–2497. doi: 10.1109/LCOMM.2024.3427010.
    [22] RUAN Chengyao, ZHANG Zaichen, JIANG Hao, et al. Wideband near-field channel covariance estimation for XL-MIMO systems in the face of beam split[J]. IEEE Transactions on Vehicular Technology. doi: 10.1109/TVT.2024.3471733.
    [23] QIU Chen, WEI Zhiqing, YUAN Xin, et al. Multiple UAV-mounted base station placement and user association with joint fronthaul and backhaul optimization[J]. IEEE Transactions on Communications, 2020, 68(9): 5864–5877. doi: 10.1109/TCOMM.2020.3001136.
    [24] SHI Wangqi, JIANG Hao, XIONG Baiping, et al. RIS-empowered V2V communications: Three-dimensional beam domain channel modeling and analysis[J]. IEEE Transactions on Wireless Communications, 2024, 23(11): 15844–15857. doi: 10.1109/TWC.2024.3434568.
    [25] WEI Zhiqiang, CAI Yuanxin, SUN Zhuo, et al. Sum-rate maximization for IRS-assisted UAV OFDMA communication systems[J]. IEEE Transactions on Wireless Communications, 2021, 20(4): 2530–2550. doi: 10.1109/TWC.2020.3042977.
    [26] XU Peng, NIU Wenqi, CHEN Gaojie, et al. Performance analysis of RIS-assisted systems with statistical channel state information[J]. IEEE Transactions on Vehicular Technology, 2022, 71(1): 1089–1094. doi: 10.1109/TVT.2021.3126374.
    [27] JIANG Hao, SHI Wangqi, ZHANG Zaichen, et al. Large-scale RIS enabled air-ground channels: Near-field modeling and analysis[J]. arXiv: 2403.12781, 2024.
    [28] LIN Na, TANG Hailun, ZHAO Liang, et al. A PDDQNLP algorithm for energy efficient computation offloading in UAV-assisted MEC[J]. IEEE Transactions on Wireless Communications, 2023, 22(12): 8876–8890. doi: 10.1109/TWC.2023.3266497.
    [29] CHEN Guqiao, CHENG Changjun, XU Xiaoli, et al. Minimizing the age of information for data collection by cellular-connected UAV[J]. IEEE Transactions on Vehicular Technology, 2023, 72(7): 9631–9635. doi: 10.1109/TVT.2023.3249747.
    [30] WANG Xu, WANG Sen, LIANG Xingxing, et al. Deep reinforcement learning: A survey[J]. IEEE Transactions on Neural Networks and Learning Systems, 2024, 35(4): 5064–5078. doi: 10.1109/TNNLS.2022.3207346.
    [31] MNIH V, KAVUKCUOGLU K, SILVER D, et al. Human-level control through deep reinforcement learning[J]. Nature, 2015, 518(7540): 529–533. doi: 10.1038/nature14236.
    [32] VAN HASSELT H, GUEZ A, and SILVER D. Deep reinforcement learning with double q-learning[C]. The 30th AAAI Conference on Artificial Intelligence, Phoenix, USA, 2016: 2094–2100. doi: 10.1609/aaai.v30i1.10295.
    [33] WANG Liang, WANG Kezhi, PAN Cunhua, et al. Joint trajectory and passive beamforming design for intelligent reflecting surface-aided UAV communications: A deep reinforcement learning approach[J]. IEEE Transactions on Mobile Computing, 2023, 22(11): 6543–6553. doi: 10.1109/TMC.2022.3200998.
    [34] MEI Haibo, YANG Kun, LIU Qiang, et al. 3D-trajectory and phase-shift design for RIS-assisted UAV systems using deep reinforcement learning[J]. IEEE Transactions on Vehicular Technology, 2022, 71(3): 3020–3029. doi: 10.1109/TVT.2022.3143839.
