可重構智能超表面使能的協作無線攜能同傳-非正交多址接入系統安全傳輸方案

季薇; 劉子卿; 李飛; 李汀; 梁彥; 宋云超

doi:10.11999/JEIT240822

可重構智能超表面使能的協作無線攜能同傳-非正交多址接入系統安全傳輸方案

doi: 10.11999/JEIT240822 cstr: 32379.14.JEIT240822

季薇^1, ,,
劉子卿¹,
李飛¹,
李汀¹,
梁彥¹,
宋云超²

1.
南京郵電大學通信與信息工程學院南京 210003
2.
南京郵電大學電子與光學工程學院南京 210023

基金項目: 國家自然科學基金(61871238, 62271265)

詳細信息

作者簡介:
季薇：女，博士，教授，研究方向為無線通信與通信信號處理、智能信號處理等

劉子卿：男，碩士生，研究方向為RIS輔助的SWIPT通信系統

李飛：女，博士，教授，研究方向為量子智能計算、群智能和無線通信中的信號處理技術

李?。耗?，博士，副教授，研究方向為MIMO 技術、3D MIMO 技術、協作通信等

梁彥：女，博士，副教授，研究方向為無線通信與移動通信

宋云超：男，博士，副教授，研究方向為通信信號處理

通訊作者:
季薇　jiwei@njupt.edu.cn

中圖分類號: TN92
計量
- 文章訪問數: 245
- HTML全文瀏覽量: 82
- PDF下載量: 53
- 被引次數: 0
出版歷程
- 收稿日期: 2024-09-27
- 修回日期: 2025-02-21
- 網絡出版日期: 2025-02-25
- 刊出日期: 2025-02-28

Secure Transmission Scheme for Reconfigurable Intelligent Surface-enabled Cooperative Simultaneous Wireless Information and Power Transfer Non-Orthogonal Multiple Access System

1.
College of Telecommunications and Information Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
2.
College of Electronic and Optical Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210023, China

Funds: The National Natural Science Foundation of China (61871238, 62271265)

摘要

摘要: 可重構智能超表面(RIS)因能提供額外的無源波束增益被視為一項頗具前景的技術?？紤]到未來大型物聯網中不同用戶服務需求的多樣性及信息傳輸?shù)陌踩裕撐拿嫦騾f(xié)作無線攜能同傳-非正交多址接入(SWIPT-NOMA)系統，提出一種RIS使能的安全傳輸方案。通過合理部署RIS的位置，將其同時作用于直接傳輸階段和協作傳輸階段。在滿足非正交多址接入(NOMA)弱用戶信息速率需求、NOMA強用戶能量收集需求和基站最小發射功率的條件下，通過聯合優化基站的有源波束成形、RIS的相移矩陣、強用戶的功率分割系數等來最大化強用戶的保密速率。為解決所提的多變量耦合的非凸優化問題，該文基于交替迭代優化算法，對基站的有源波束成形、直接傳輸階段的RIS無源波束相移矩陣、協作傳輸階段的RIS有源波束相移矩陣以及強用戶的功率分割系數等進行了多次交替迭代優化，直至算法收斂。仿真結果驗證了該文算法的收斂性，且與其它基準方案相比，所提方案可進一步提高強用戶的保密速率。
- 可重構智能超表面 /
- 無線攜能同傳 /
- 非正交多址接入 /
- 安全傳輸
Abstract: Objective The Reconfigurable Intelligent Surface (RIS) is emerging as a promising technology due to its ability to provide passive beamforming gains, which can be seamlessly integrated into existing wireless networks without altering physical layer standards. The integration of RIS with other advanced technologies offers new opportunities for communication network design. In the context of future large-scale Internet of Things (IoT) systems, users are expected to have diverse requirements. These differences in structure and function lead to two distinct receiver operation modes: Power Splitting (PS) and Time Switching (TS). Furthermore, users’ service needs may vary, including energy harvesting and information transmission. In practice, IoT terminals often face energy constraints. Additionally, the network typically operates in an open wireless environment, where the inherent broadcasting nature of wireless channels may introduce security vulnerabilities. To address the diverse service demands in large-scale IoT networks and ensure secure information transmission, this study proposes an RIS-enabled secure transmission scheme for a cooperative Simultaneous Wireless Information and Power Transfer Non-Orthogonal Multiple Access (SWIPT-NOMA) system. Methods The RIS is strategically deployed to assist transmission during both the direct and cooperative transmission stages. The goal is to maximize the secrecy rate of the strong NOMA user, subject to the information rate requirements of the weak NOMA user, the energy harvesting needs of the strong NOMA user, and the base station’s minimum transmission power. To solve this multivariable-coupled, non-convex optimization problem, an alternating iterative optimization algorithm is applied. The algorithm optimizes the base station’s active beamforming, the RIS’s passive beam phase shift matrix in the direct transmission stage, the RIS’s active beam phase shift matrix in the cooperative transmission stage, and the PS coefficient of the strong user. These parameters are iteratively adjusted until convergence is achieved. Results and Discussions The convergence of the algorithm is demonstrated in (Fig. 3). As the number of RIS components increases and the number of iterations grows, the secrecy rate of the strong user (U2) gradually improves until it converges. To evaluate the effectiveness of the proposed scheme, it is compared with several benchmark schemes: (1) The random PS coefficient scheme, where RIS is used in both the direct and cooperative transmission stages, and the PS coefficients for strong user U2 are randomly generated. (2) The random RIS phase shift matrix scheme, where RIS enables both transmission stages, with phase shift matrices for both stages randomly generated. (3) The SDR scheme, in which RIS is used in both transmission stages, and the phase shift matrices are optimized using the SDR method. (4) The RIS-enabled direct transmission scheme, where RIS is used only in the direct transmission stage. The impact of the number of base station antennas on the system’s secrecy rate is shown in (Fig. 4), and the effect of the number of RIS components on the secrecy rate is explored in (Fig. 5). Compared to the other baseline schemes, the proposed scheme achieves a higher secrecy rate for the strong user. Conclusions This paper addresses the challenge of diverse service requirements for users in future large-scale IoT networks and the security of information transmission by designing a secure transmission scheme for an RIS-enabled cooperative SWIPT-NOMA communication system. RIS assists communication in both the direct and cooperative transmission stages. The secrecy rate of the strong user is maximized while considering the information rate requirements of weak NOMA users, the energy harvesting needs of strong NOMA users, and the base station’s minimum transmission power. The proposed optimization problem is a non-convex, multi-variable problem, which is difficult to solve directly. To address this, the problem is divided into several sub-problems, and the active beamforming of the base station, the passive beam phase shift matrix of the RIS in the direct transmission stage, the active beam phase shift matrix of the RIS in the cooperative transmission stage, and the power splitting coefficient of the strong user are iteratively optimized until convergence. Simulation results demonstrate that the secrecy rate of the proposed scheme outperforms that of the scheme where RIS is enabled only in the direct transmission stage. Compared to other baseline schemes, the proposed scheme further enhances the secrecy rate for strong users.

HTML全文

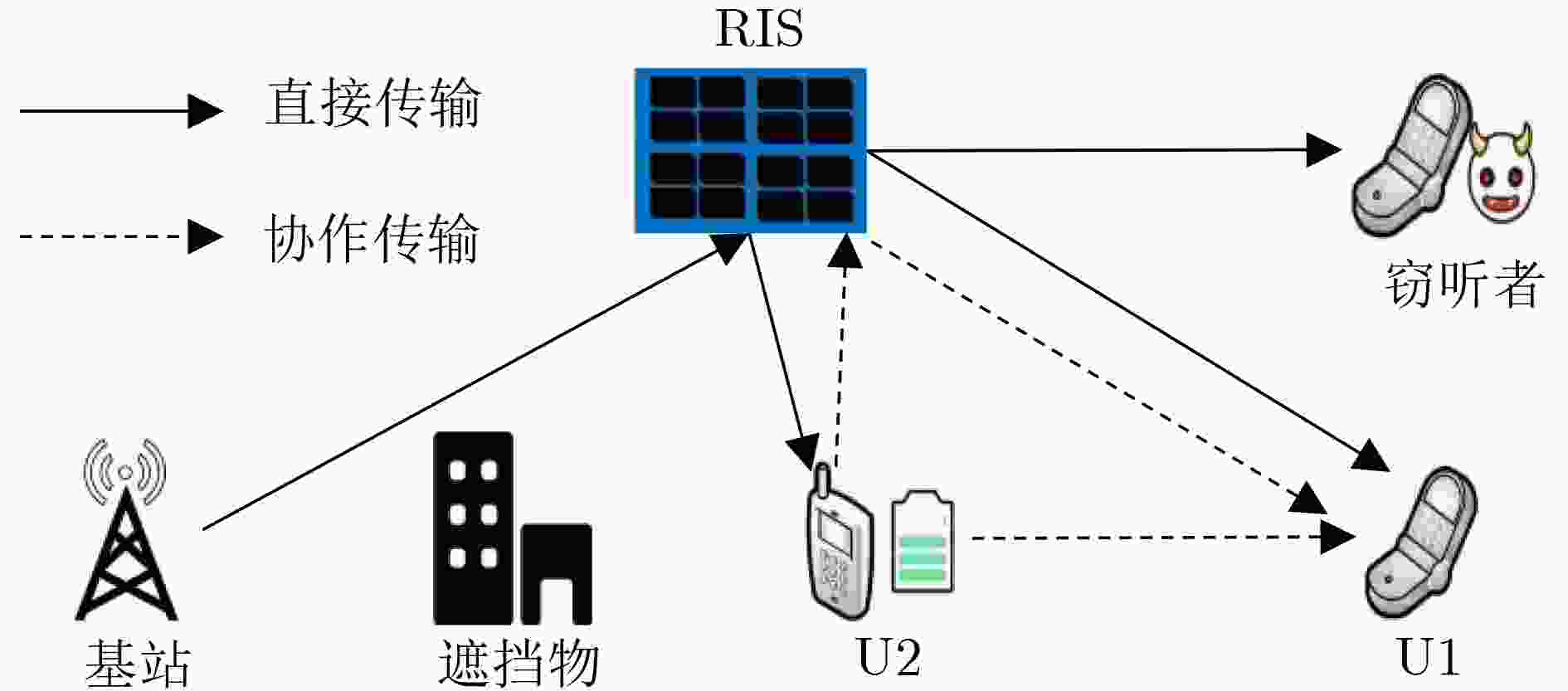

圖 1 系統模型

下載: 全尺寸圖片幻燈片

圖 2 強用戶U2的工作模式

下載: 全尺寸圖片幻燈片

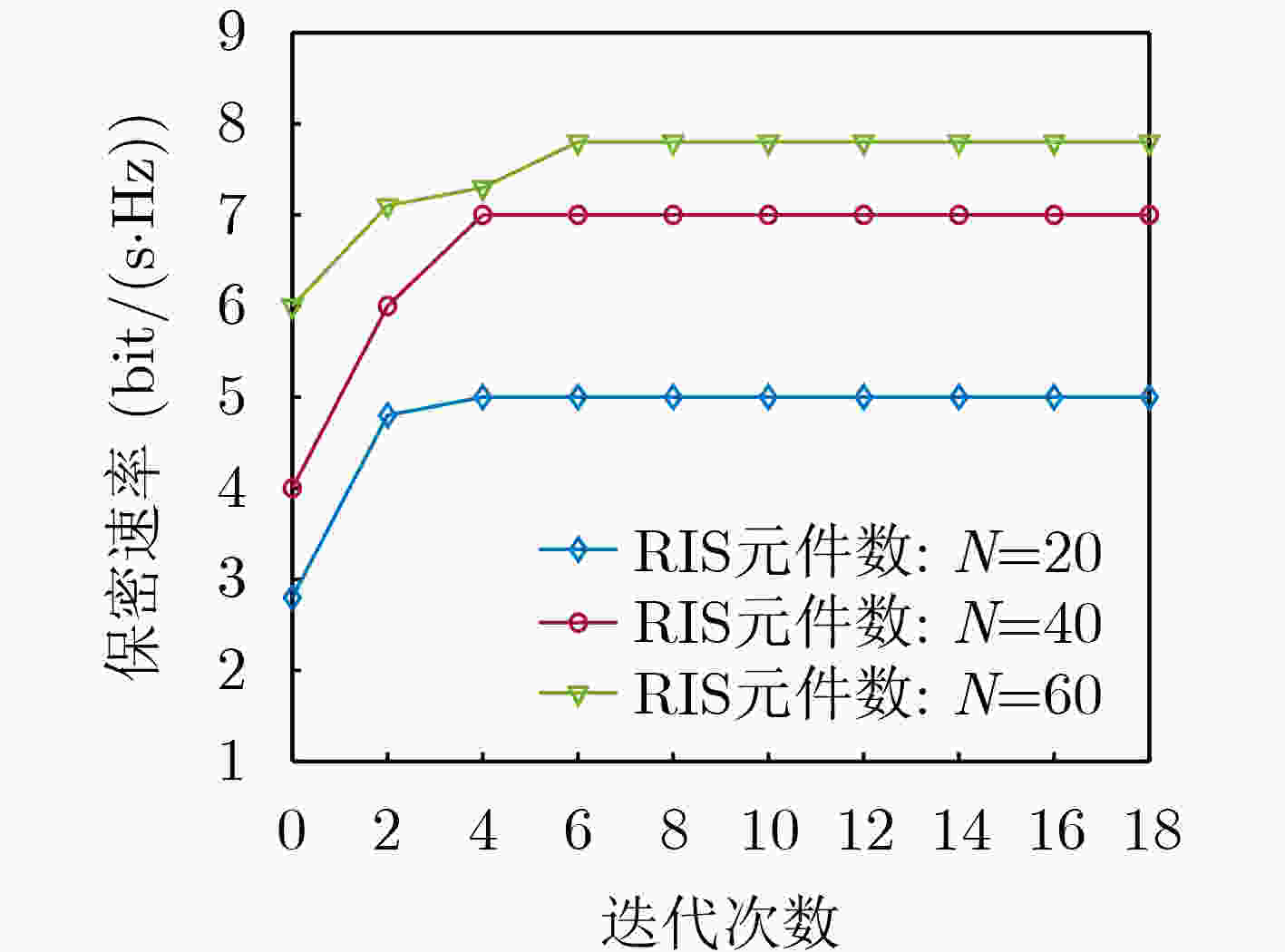

圖 3 RIS元件個數與算法迭代收斂圖

下載: 全尺寸圖片幻燈片

圖 4 基站天線數和保密速率關系圖

下載: 全尺寸圖片幻燈片

圖 5 RIS元件數和保密速率關系圖

下載: 全尺寸圖片幻燈片

1 基站有源波束成形子問題求解算法

令$ i = 0 $，初始化可行解$ {\boldsymbol{W}}_1^{(i)},\;{\boldsymbol{W}}_2^{(i)} $，輔助變量$ x_1^{(i)} $
for 交替更新求解
已知$ {\boldsymbol{W}}_1^{(i)},\;{\boldsymbol{W}}_2^{(i)} $，計算$ {t^{(i + 1)}} $
已知$ {\boldsymbol{W}}_1^{(i)},\;{\boldsymbol{W}}_2^{(i)},\;x_1^{(i)} $，計算$ {a^{(i + 1)}} $
已知$ {t^{(i + 1)}},{a^{(i + 1)}} $，求解問題P2，獲得${\boldsymbol{W}}_1^{(i + 1)},\;{\boldsymbol{W}}_2^{(i + 1)} $, 　　　$ x_1^{(i + 1)} $
更新$ i = i + 1 $
end for：收斂
輸出基站有源波束成形矩陣$ {\boldsymbol{W}}_1^{(i)},\;{\boldsymbol{W}}_2^{(i)} $，輔助變量$ x_1^{(i)} $

下載: 導出CSV

2 直接傳輸階段RIS無源波束成形優化子問題求解算法

令$ i = 0 $，初始化可行解$ {\boldsymbol{Q}}_1^{(i)} $，輔助變量$ x_2^{(i)} $
for 交替更新求解
已知$ {\boldsymbol{Q}}_1^{(i)} $，計算$ {z^{(i + 1)}} $
已知$ {\boldsymbol{Q}}_1^{(i)},\;x_2^{(i)} $，計算$ {b^{(i + 1)}} $
已知$ {z^{(i + 1)}},{b^{(i + 1)}} $，求解問題P4，獲得$ {\boldsymbol{Q}}_1^{(i + 1)},x_2^{(i + 1)} $
更新$ i = i + 1 $
end for：收斂
輸出基站有源波束成形矩陣$ {\boldsymbol{Q}}_1^{(i)} $，輔助變量$ x_2^{(i)} $

下載: 導出CSV

3 基于交替迭代的整體算法

令$ i = 0 $，初始化可行解$ {\boldsymbol{w}}_1^{(i)},{\boldsymbol{w}}_2^{(i)},{\boldsymbol{Q}}_1^{(i)},{\boldsymbol{Q}}_2^{(i)},{\rho ^{(i)}} $
for 交替更新求解$ {{\boldsymbol{w}}_1},{{\boldsymbol{w}}_2},{{\boldsymbol{Q}}_1},{{\boldsymbol{Q}}_2},\rho $
已知$ {\boldsymbol{Q}}_1^{(i)},{\boldsymbol{Q}}_2^{(i)},{\rho ^{(i)}} $，求解問題P2，獲得$ {\boldsymbol{w}}_1^{(i + 1)},{\boldsymbol{w}}_2^{(i + 1)} $
已知$ {\boldsymbol{w}}_1^{(i + 1)},{\boldsymbol{w}}_2^{(i + 1)},{\boldsymbol{Q}}_2^{(i)},{\rho ^{(i)}} $，求解問題P4，獲得$ {\boldsymbol{Q}}_1^{(i + 1)} $
已知$ {\boldsymbol{w}}_1^{(i + 1)},{\boldsymbol{w}}_2^{(i + 1)},{\boldsymbol{Q}}_1^{(i + 1)},{\rho ^{(i)}} $，求解問題P6，獲得　　$ {\boldsymbol{Q}}_2^{(i + 1)} $
已知$ {\boldsymbol{w}}_1^{(i + 1)},{\boldsymbol{w}}_2^{(i + 1)},{\boldsymbol{Q}}_1^{(i + 1)},{\boldsymbol{Q}}_2^{(i + 1)} $，求解問題P8，獲得　　$ {\rho ^{(i + 1)}} $
更新$ i = i + 1 $
end for：收斂

下載: 導出CSV
