探索快遞物流網的離散數學模型

張明軍; 張玉婧; 楊見青; 姚兵

doi:10.11999/JEIT240767

探索快遞物流網的離散數學模型

doi: 10.11999/JEIT240767

張明軍^{1, 2},
張玉婧^1, ,,
楊見青¹,
姚兵³

1.
蘭州財經大學信息工程與人工智能學院蘭州 730020
2.
甘肅省智慧商務重點實驗室蘭州 730020
3.
西北師范大學數學與統計學院蘭州 730070

基金項目: 國家自然科學基金(61363060, 61662066)，蘭州財經大學科研資助項目(Lzufe2022B-002)，甘肅省自然科學基金(23JRRA1785, 25JRRA232)

詳細信息

作者簡介:
張明軍：男，教授，研究方向為圖論及其應用，物聯網和供應鏈，網絡信息安全等

張玉婧：女，碩士生，研究方向為物聯網和供應鏈

楊見青：女，碩士生，研究方向為物聯網和供應鏈

姚兵：男，教授，研究方向為拓撲編碼及其應用，圖格和圖群，網絡信息安全

通訊作者:
張玉婧　zyjdm@qq.com

中圖分類號: TN911.7; O157.6
計量
- 文章訪問數: 243
- HTML全文瀏覽量: 134
- PDF下載量: 39
- 被引次數: 0
出版歷程
- 收稿日期: 2024-09-09
- 修回日期: 2025-02-19
- 網絡出版日期: 2025-03-05
- 刊出日期: 2025-03-10

Exploring The Discrete Mathematical Models of Express Logistics Networks

1.
School of Information Engineering and Artificial Intelligence, Lanzhou University of Finance and Economics, Lanzhou 730020, China
2.
Gansu Provincial Key Laboratory of Smart Commerce, Lanzhou 730020, China
3.
College of Mathematics and Statistics, Northwest Normal University, Lanzhou 730070, China

Funds: The National Natural Science Foundation of China (61363060, 61662066), Lanzhou University of Finance and Economics Research Funding Programme (Lzufe2022B-002), The Natural Science Foundation of Gansu Province (23JRRA1785, 25JRRA232)

摘要

摘要: 針對快遞物流網絡，該文研究：(1) 構建全新的快遞物流網的離散數學模型 (又稱拓撲模型)；(2) 根據理論基礎從圖論學科的角度對快遞物流網絡拓撲模型進行定性分析，通過數學模型法結合參數統計、優化算法等數學手段對模型進行定量分析。對拓撲模型中的邊賦予路長權重，并為快遞物流網拓撲模型設計了新的優化算法(集散算法、控制集算法、預先指定子圖算法)；(3) 以蘭州市城關區主城區作為快遞物流網拓撲模型的應用實例，實施了相應的優化算法。同時針對模型計算面臨的復雜度等困難提出了解決辦法，為進一步完善、優化快遞物流網絡提供了一定參考。
- 快遞物流網 /
- 拓撲模型 /
- 優化算法 /
- 計算復雜度 /
- 賦權圖
Abstract: Objective With the rapid growth of e-commerce, express delivery volumes have surged, placing increased demands on existing logistics infrastructure and operational models. An efficient express logistics network can help reduce costs, improve transportation efficiency, and enhance logistics management. Therefore, analyzing the structure and operation of express logistics networks, as well as identifying ways to optimize these networks, has become a critical focus for logistics companies. The goal is to improve operational efficiency and support balanced regional economic development. Current research on express logistics networks involves constructing various models, such as mathematical optimization models, decision models, and network evaluation models, and applying algorithms like heuristic, genetic, and greedy algorithms, as well as those based on complex network theory, to optimize network structure, performance, and planning decisions. However, a limitation of existing studies is the lack of models closely aligned with the practical realities of express logistics, and the absence of effective new algorithms to address the complex, evolving challenges faced by express logistics networks. This study proposes a novel discrete mathematical model, also known as a topology model, for express logistics networks from the perspective of graph theory. The model comprises a road network (physical network), a topology network (mathematical model), and an information network (soft control system), providing a closer alignment with real-world express logistics scenarios. Through both qualitative and quantitative analyses of the model, along with the design of corresponding optimization algorithms, this research offers a reference for the in-depth study and scientific optimization of express logistics networks. Methods This study employs various methods: (1) Mathematical Model Construction: A new discrete mathematical model for express logistics networks is developed, accounting for the nonlinear, stochastic, and discrete characteristics of the network. The model integrates physical, topological, and informational networks. (2) Qualitative Analysis: The topology model of the express logistics network is qualitatively analyzed using graph theory concepts and algorithms, where the network topology model is represented as a weighted structure in graph theory. (3) Quantitative Analysis: The mathematical model is analyzed quantitatively using statistical parameters, optimization algorithms, and other mathematical techniques. The edges in the topological model are assigned route length weights, and new optimization algorithms—such as the distribution algorithm, control set algorithm, and pre-designated subgraph algorithm—are proposed to optimize the express logistics network topology. (4) Case Study and Optimization: The topology model is applied to the express logistics network in the central district of Lanzhou City (Chengguan District), where corresponding optimization algorithms are implemented. Solutions to challenges, such as the computational complexity of the model, are proposed. Results and Discussions The mathematical model in this study is a topological graph based on graph theory, where various matrices are used to input the express logistics network’s topology into the computer for subsequent calculations. Innovation 1: A topological model of the express logistics network is created. Innovation 2: The topological model of the express logistics network is optimized and quantitatively analyzed, and a minimum weight path m-control set algorithm (m ≥ 2) and a pre-designated subgraph control algorithm are developed(Algorithm 3, Algorithm 4). These models and algorithms are then applied to the study of the express logistics network in the Chengguan District of Lanzhou City. Innovation 3: In response to the large-scale data and the limitations in computer computing power, as well as the absence of a super-large computer at the author’s institution, the large-scale matrix calculation is divided into smaller regional matrices for optimized computation. Innovation 4: Different optimization algorithms are selected for different areas of the road network map of Lanzhou City’s Chengguan District (Fig. 4, Fig. 5). Multiple calculation results are integrated to obtain the minimum weight path of the pre-designated subgraph for the Chengguan District, validating the effectiveness of the model and algorithms. Conclusions This study addresses existing issues in express logistics network research through the aforementioned work and innovations. A new model and new algorithms, better suited to practical logistics scenarios, are developed. Based on the case study, new problems and methods are proposed, offering further possibilities for optimizing express logistics networks. With the rapid development of emerging technologies such as the Internet of Things, big data, and artificial intelligence, future research could focus on deeply integrating these technologies to enable real-time and accurate collection and analysis of logistics data. Access to high-quality and diverse data can further improve the accuracy of the model’s calculations and enhance intelligent decision-making capabilities. This study has only considered assigning route length weights to the edges in the topological model; future work may explore multi-objective, multi-weight optimization models for express logistics networks to meet the practical decision-making needs of different logistics service providers.
- Express logistics networks /
- Topological model /
- Optimization algorithm /
- Computation complexity /
- Weighted graph

HTML全文

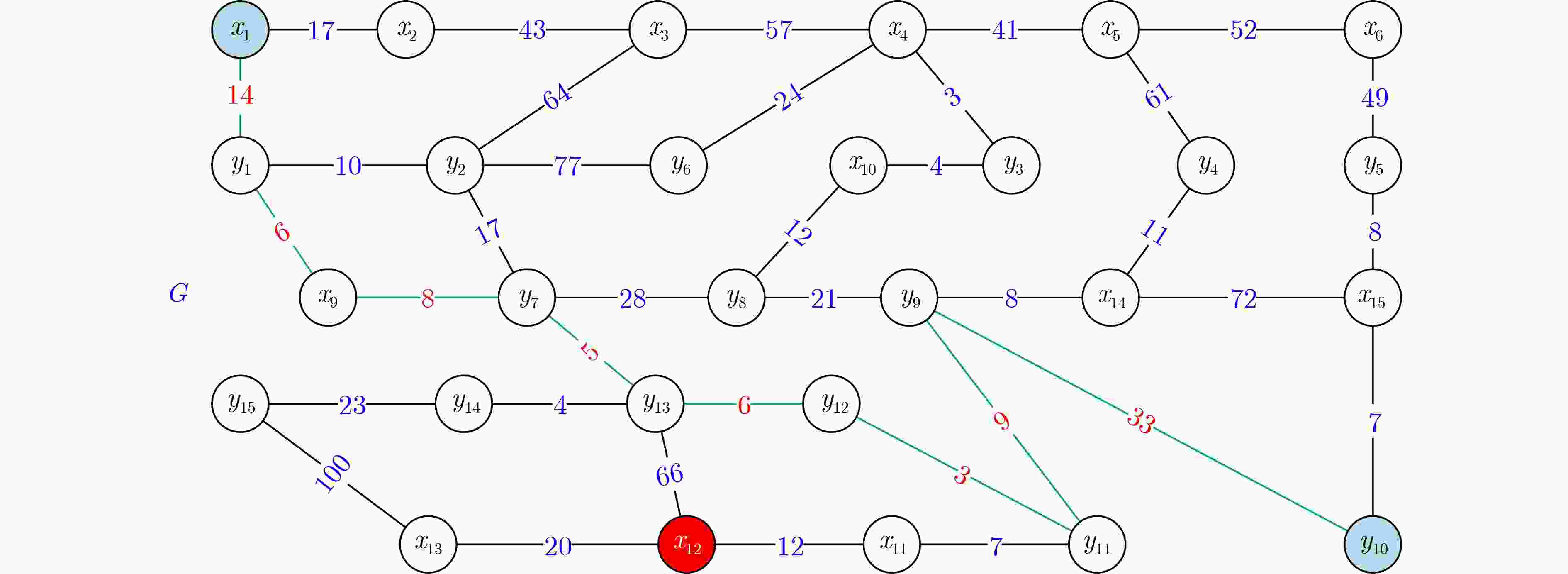

圖 1 一個具有權重的區域道路圖G

下載: 全尺寸圖片幻燈片

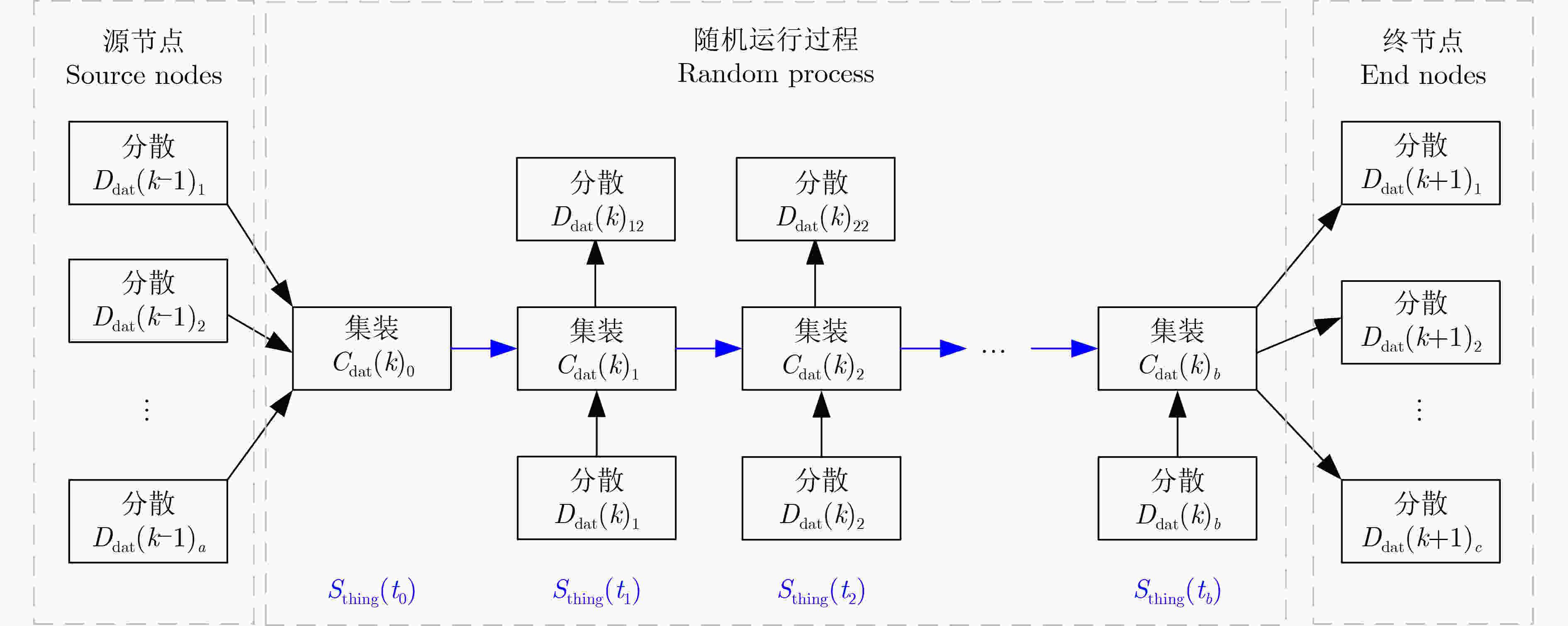

圖 2 解釋第k個集散過程及其算法模塊

下載: 全尺寸圖片幻燈片

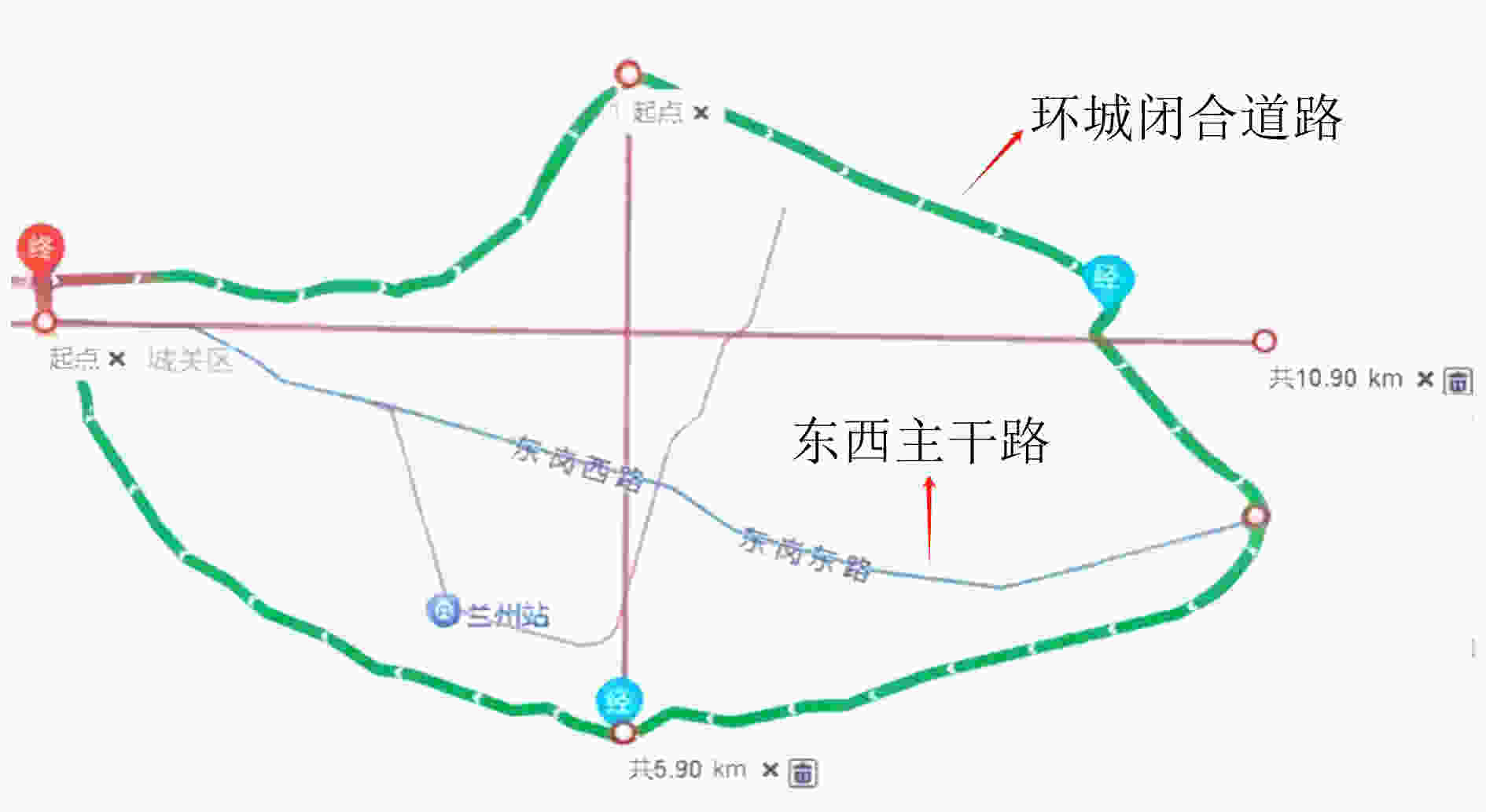

圖 3 蘭州市城關區道路圖(摘自高德地圖)

下載: 全尺寸圖片幻燈片

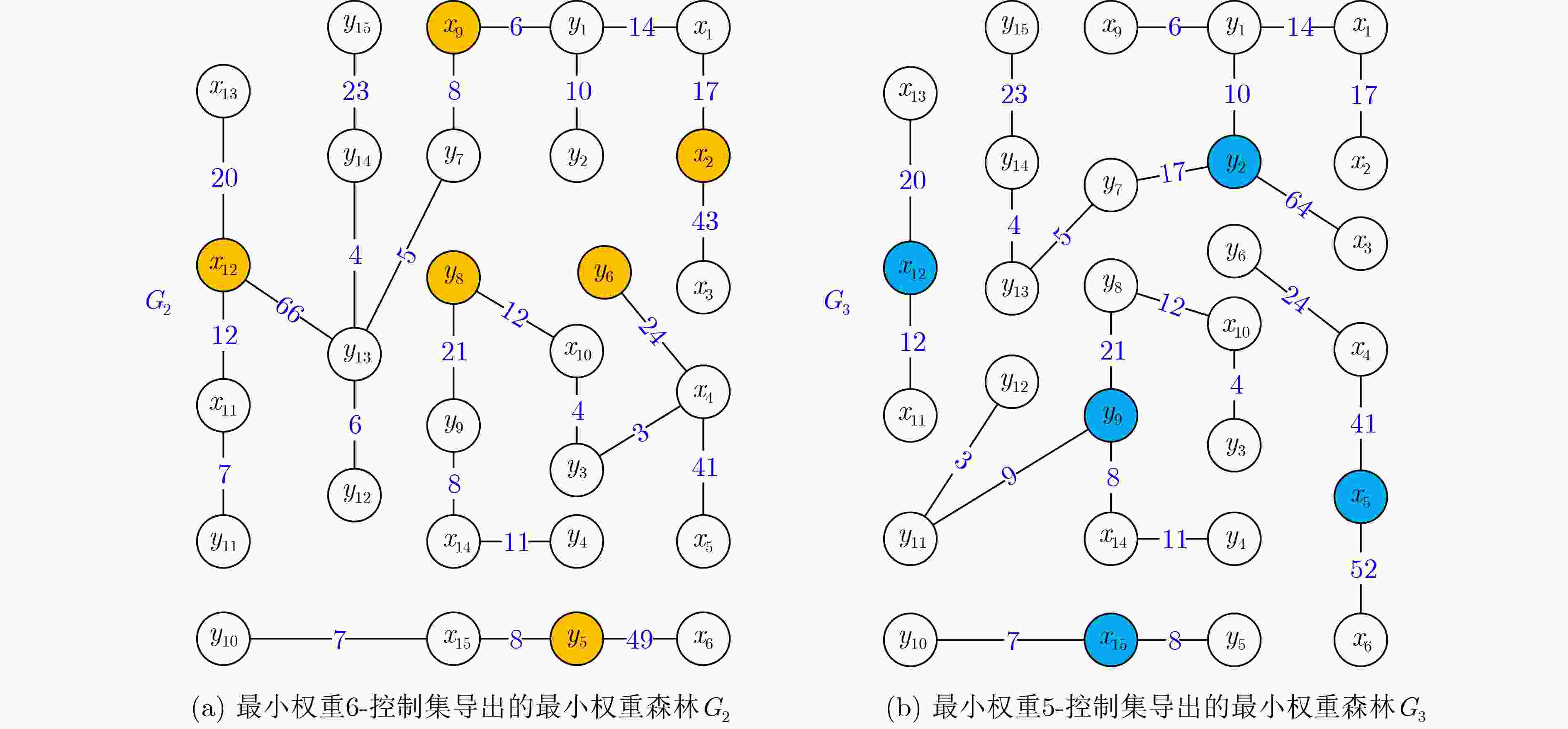

圖 4 基于圖G的兩個最小權重森林

下載: 全尺寸圖片幻燈片

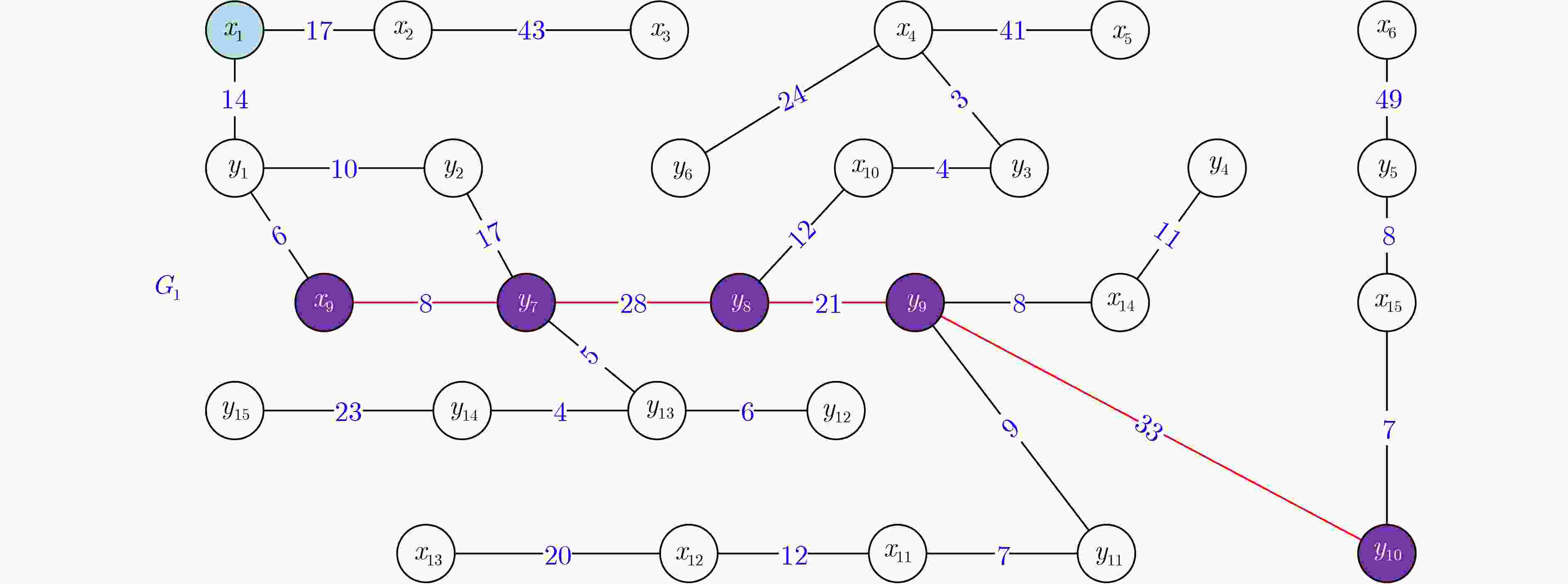

圖 5 基于圖G的最小權重支撐樹

下載: 全尺寸圖片幻燈片

1 無約束快遞集散 CD-算法

輸入：集裝$C(k) = \{ {A_{k,1}},{A_{k,2}}, \cdots ,{A_{k,n(k)}}\} $，其中${A_{k,j}}$是貨物，且有${A_{k,j}} \ne {A_{k,t}}$, $j \ne t$
輸出：分散$D(k + 1)$
在一般的快遞物流網中，不會為一個貨物進行式(1)的無約束快遞集散，而是進行下面的多個快遞貨物的集裝和分散：
步驟1　集裝$C(k)$被分散，形成分散$D(k)$：
(1) 分散集裝$C(k)$的貨物，其中有貨物${{\mathrm{ED}}_k} = \{ {A_{{k_i},1}},{A_{{k_i},2}}, \cdots ,{A_{{k_i},a({k_i})}}\} $被發送到客戶手中；
(2) 又有新的貨物${{\mathrm{NB}}_k} = \{ {B_{k,1}},{B_{k,2}}, \cdots ,{B_{k,m(k)}}\} $補充進來。
步驟2　形成集裝$C(k + 1)$：將集合$(C(k)\backslash {{\mathrm{ED}}_k}) \cup {{\mathrm{NB}}_k}$中的貨物組裝成小集裝模塊${C_{k + 1,1}},{C_{k + 1,2}}, \cdots ,{C_{k + 1,n(k + 1)}}$，其中　$n(k + 1) \le n(k) - a({k_i}) + m(k)$，使得集裝$C(k + 1)$由這$n(k + 1)$個集裝模塊構成。
步驟3　由集裝$C(k + 1)$返回分散$D(k + 1)$。

下載: 導出CSV

2 最小權重路控制集算法

輸入：權重路拓撲模型 ${G_{\rm{weight}}}(t)$
輸出：權重路拓撲模型 ${G_{\rm{weight}}}(t)$ 的一個最小權重路控制集
步驟1　選擇節點 ${u_1} \in V({G_{\rm{weight}}}(t))$ 以及與節點 ${u_1}$ 相鄰的節點 ${w_1} \in {N_{\rm{ei}}}({u_1})$，使得路 $P({u_1},{w_1})$ 的權重之和為最小。得到節點集　合： ${U_1} \leftarrow \{ {u_1}\} $, ${W_1} \leftarrow \{ {w_1}\} $, ${V_1} = V({G_{\rm{weight}}}(t))\backslash ({U_1} \cup {W_1})$。
步驟2　選擇節點 ${u_k} \in {V_k}$ 以及與節點 ${u_k}$ 相鄰的節點 ${w_k} \in {N_{\rm{ei}}}({u_k})$，使得路 $P({u_k},{w_k})$ 的權重之和是最小的，且 ${w_k}\not \in {U_{k - 1}}$。得到　節點集合：${U_k} \leftarrow {U_{k - 1}} \cup \{ {u_k}\} $, ${W_k} \leftarrow {W_{k - 1}} \cup \{ {w_k}\} $, ${V_k} = V({G_{\rm{weight}}}(t))\backslash ({U_k} \cup {W_k})$。轉到步驟3。
步驟3　如果有節點 $x \in {V_k}$ 使得路 $P(x,y)$ ($y \in {N_{\rm{ei}}}(x)$) 的權重之和達到最小值，但是 $y\not \in {W_k}$，則令 ${W_k} \leftarrow {W_{k - 1}} \cup \{ x\} $，以及　${U_k} \leftarrow {U_{k - 1}} \cup \{ y\} $, ${V_k} = V({G_{\rm{weight}}}(t))\backslash ({U_k} \cup {W_k})$。轉到步驟4。
步驟4　如果有 $\|{V_k}\| \ge 2$，轉到步驟2。否則，轉到步驟5。
步驟5　如果 ${V_k} = \{ z\} $，且有節點$ z' \in {N_{\rm{ei}}}(z) $，使得路 $ P(z,z') $ 的權重之和達到最小。當節點 $ z' \in {U_k} $，則令 ${W_{k + 1}} \leftarrow {W_k} \cup \{ z\} $, 　${U_{k + 1}} \leftarrow {U_k}$；當節點 $ z' \in {W_k} $，則令 ${U_{k + 1}} \leftarrow {U_k} \cup \{ z\} $, ${W_{k + 1}} \leftarrow {W_k}$, ${V_{k + 1}} = V({G_{\rm{weight}}}(t))\backslash ({U_{k + 1}} \cup {W_{k + 1}}) = \varnothing $。轉到步驟6。
步驟6　返回權重路拓撲模型 ${G_{\rm{weight}}}(t)$ 的最小權重路控制集 ${W_{k + 1}}$。

下載: 導出CSV

3 最小權重路 m-控制集算法 (m≥2)

輸入：在最小權重路控制集算法2中，最小權重路控制集 ${W_{k + 1}}$ 導出權重路拓撲圖${H_1} = G[{W_{k + 1}}]$，它是權重路拓撲模型 ${G_{\rm{weight}}}(t)$ 的一　個子圖
輸出：權重路拓撲圖 ${H_m}$ 的最小權重路 m-控制集算法 (m≥2)
步驟1　對圖${H_1} = G[{W_{k + 1}}]$運用最小權重路控制集算法，得到權重路拓撲圖${H_1}$的一個最小權重路控制集${S_1}$，它是權重路拓撲模型　${G_{\rm{weight}}}(t)$的一個最小權重路 2-控制集，使得權重路拓撲模型${G_{\rm{weight}}}(t)$的任何一個節點$a$滿足：$a \in {S_1}$，或者有節點$b \in {S_1}$，使得路　$P(a,b)$的權重之和達到最小值，且有邊集$\|E(P(a,b))\| \le 2$。
步驟2　節點集${S_1}$導出權重路拓撲圖${H_2} = G[{S_1}]$。實施最小權重路控制集算法2，得到權重路拓撲圖${H_1}$的一個最小權重路控制集${S_2}$，它　是權重路拓撲模型${G_{\rm{weight}}}(t)$的一個最小權重路 3-控制集。
步驟$(m - 1)$　節點集${S_{m - 2}}$ 導出權重路拓撲圖${H_{m - 1}} = G[{S_{m - 2}}]$。實施最小權重路控制集算法2后，得到權重路拓撲圖${H_m}$的一個最　小權重路控制集${S_{m - 1}}$，它是權重路拓撲模型${G_{\rm{weight}}}(t)$的一個最小權重路m-控制集。

下載: 導出CSV

4 預先指定子圖控制算法

輸入：連通邊賦權圖$G(t)$，指定連通圖$G(t)$的一個真子圖$H(t)$
輸出：連通圖$G(t)$的一個子圖$L(t)$，使得$H(t) \subset L(t)$，每個節點$u \in V(L(t))$到真子圖$H(t)$的距離最小
步驟1　選擇最大的節點子集合${V_1} \subset {V^} = V(G(t))\backslash V(H(t))$，使對每一個節點 $x \in {V_1}$，有節點$y \in V(H(t))$ 與x 相鄰，并且邊　$xy \in {E^} = E(G)\backslash E(H(t))$ 的權重最小，${V_1}$叫做 1-層節點集。做：${E_1} \leftarrow E(H(t))$, ${E_2} \leftarrow ({E_1} \cup E({V_1},V(H(t)))$，其中邊集合　$E({V_1},V(H(t)))$中的邊$ xy $權重最小，且滿足$x \in {V_1}$和$y \in V(H(t))$。
步驟2　選擇最大的節點子集合${V_2} \subseteq {V^}\backslash {V_1}$，使對每一個節點$x \in {V_2}$，有節點$y \in {V^}\backslash {V_1}$與x相鄰，并且邊$xy \in {E^*}\backslash E({V_1},V(H(t)))$ 的　權重最小，${V_2}$叫做 2-層節點集。做：${E_3} \leftarrow {E_2} \cup E({V_2},{V_1})$，其中邊集合$E({V_2},{V_1})$中的邊$ xy $權重最小，且滿足$x \in {V_1}$和$y \in {V_2}$。
步驟3　如果$k$-層節點集${V_k} = {V^*}\backslash \cup _{i = 1}^{k - 1}{V_i} \ne \varnothing $，轉到步驟2，否則轉到步驟4。
步驟4　如果$k$-層節點集${V_k} = {V^*}\backslash \cup _{i = 1}^{k - 1}{V_i} = \varnothing $，做：$V(L(t)) \leftarrow V(G(t))$, $E(L(t)) \leftarrow {E_2} \cup E({V_2},{V_1}) \cup E({V_3},{V_2}) \cup \cdots \cup E({V_{k - 1}},{V_{k - 2}})$ 　到步驟5
步驟5　返回連通圖$G(t)$的子圖$L(t)$，每個節點 $u \in V(L(t))$到真子圖$H(t)$的距離最小。

下載: 導出CSV

表 1 相關算法比較和評估

算法	核心思想	性能比較及適用范圍
最小權重路控制集算法	通過貪心選擇和迭代構建的方式，逐步逼近最優解，即在滿足控制集條件下使權重之和最小。	計算過程較為直觀，其時間、空間復雜度與圖的規模和迭代次數有關，可能在大規模復雜網絡中效率較低。適用于規模較小或結構簡單、連通性較強的網絡。
最小權重路 m-控制集 (m≥2)算法	通過基于子圖的迭代操作，利用算法2作為基礎步驟，逐步構建出權重路拓撲模型的最小權重m-控制集。這種方法通過分解問題為多個子問題來解決尋找特定階數最小權重控制集的復雜問題。	在計算上比最小權重路控制集算法更復雜，但通過多次迭代和基于子圖的操作，其求解精度相對算法 2會更高。適用于多層網絡的層次化資源管理等，特別是當問題的求解依賴于前一階控制集的結果，并且需要不斷細化和擴展控制集以滿足更復雜的條件時。
預先指定子圖控制算法	算法通過層次選擇節點集逐步找到最優路徑。通過最大化節點集和最小化邊權重來保證每個節點都與指定的真子圖保持最小距離。	在優化子圖和控制集的過程中，能更好地處理特定拓撲結構，計算復雜度也是較高的。適合處理較為特殊的拓撲結構，如環型、樹型網等，尤其適合實際應用中先給定子圖的情況。

下載: 導出CSV
