一種基于Transformer特征金字塔的自蒸餾目標分割方法

陳雷; 楊吉斌; 曹鐵勇; 鄭云飛; 王楊; 張波; 林振華; 李文斌

doi:10.11999/JEIT240735

一種基于Transformer特征金字塔的自蒸餾目標分割方法

doi: 10.11999/JEIT240735 cstr: 32379.14.JEIT240735

陳雷^{1, 2},
楊吉斌^1, ,,
曹鐵勇¹,
鄭云飛^{1, 3},
王楊¹,
張波⁴,
林振華²,
李文斌⁵

1.
陸軍工程大學指揮控制工程學院南京 210007
2.
31150部隊 南京 210000
3.
陸軍炮兵防空兵學院南京校區 南京 210000
4.
國防科技大學外國語學院南京 210000
5.
94895部隊 汕頭 515800

基金項目: 國家自然科學基金(61801512, 62071484)，江蘇省優秀青年基金(BK20180080)，陸軍工程大學基礎前沿項目(KYZYJKQTZQ23001)，國防科技大學2021年校立科研項目(ZK21-43)

詳細信息

作者簡介:
陳雷：男，博士，助理研究員，研究方向?yàn)樯疃葘W(xué)習、計算機視覺

楊吉斌：男，博士，副教授，研究方向?yàn)樯疃葘W(xué)習、信號處理

曹鐵勇：男，博士，教授，研究方向?yàn)樯疃葘W(xué)習、信號處理

鄭云飛：男，博士，講師，研究方向?yàn)樯疃葘W(xué)習、信號處理

王楊：男，博士，研究方向?yàn)樯疃葘W(xué)習、計算機視覺

張波：男，博士，講師，研究方向?yàn)樯疃葘W(xué)習、信號處理

林振華：男，副研究員，研究方向?yàn)樾畔⑾到y(tǒng)工程

李文斌：男，研究方向?yàn)橹笓]控制

通訊作者:
楊吉斌　yjbice@sina.com

中圖分類號: TN919.8; TP391.4
計量
- 文章訪問數: 410
- HTML全文瀏覽量: 221
- PDF下載量: 91
- 被引次數: 0
出版歷程
- 收稿日期: 2024-08-26
- 修回日期: 2024-12-12
- 網絡出版日期: 2024-12-20
- 刊出日期: 2025-02-28

A Self-distillation Object Segmentation Method Based on Transformer Feature Pyramid

CHEN Lei^{1, 2},
YANG Jibin^{1
, ,},
CAO Tieyong¹,
ZHENG Yunfei^{1, 3},
WANG Yang¹,
ZHANG Bo⁴,
LIN Zhenhua²,
LI Wenbin⁵

1.
Institute of Command and Control Engineering, Army Engineering University of PLA, Nanjing 210007, China
2.
31150 Troops of PLA, Nanjing 210000, China
3.
PLA Army Academy of Artillery and Air Defense (Nanjing Campus), Nanjing 210000, China
4.
Institute of Foreign Language, National University of Defense Technology, Nanjing 210000, China
5.
94895 Troops of PLA, Shantou 515800, China

Funds: The National Natural Science Foundation of China (61801512, 62071484), Jiangsu Provincial Excellent Young Scientists Fund (BK20180080), The Army Engineering University of PLA Basic Frontier Project (KYZYJKQTZQ23001), The University of National Defense Science and Technology 2021 School Scientific Research Project (ZK21-43)

摘要

摘要: 為在不增加網絡參數規模的情況下提升目標分割性能，該文提出一種基于Transformer特征金字塔的自蒸餾目標分割方法，提升了Transformer分割模型的實用性。首先，以Swin Transformer為主干網構建了像素級的目標分割模型；然后，設計了適合Transformer的蒸餾輔助分支，該分支由密集連接空間空洞金字塔(DenseASPP)、相鄰特征融合模塊(AFFM)和得分模塊構建而成，通過自蒸餾方式指導主干網絡學習蒸餾知識；最后，利用自上而下的學習策略指導模型學習，以保證自蒸餾學習的一致性。實驗表明，在4個公開數據集上所提方法均能有效提升目標分割精度，在偽裝目標檢測(COD)數據集上比次優的Transformer知識蒸餾(TKD)方法的F_β值提高了約2.29%。
- 自蒸餾 /
- Transformer /
- 目標分割 /
- 特征金字塔
Abstract: Objective Neural networks that demonstrate superior performance often necessitate complex architectures and substantial computational resources, thereby limiting their practical applications. Enhancing model performance without increasing network parameters has emerged as a significant area of research. Self-distillation has been recognized as an effective approach for simplifying models while simultaneously improving performance. Presently, research on self-distillation predominantly centers on models with Convolutional Neural Network (CNN) architectures, with less emphasis on Transformer-based models. It has been observed that due to their structural differences, different network models frequently extract varied semantic information for the same spatial locations. Consequently, self-distillation methods tailored to specific network architectures may not be directly applicable to other structures; those designed for CNNs are particularly challenging to adapt for Transformers. To address this gap, a self-distillation method for object segmentation is proposed, leveraging a Transformer feature pyramid to improve model performance without increasing network parameters. Methods First, a pixel-wise object segmentation model is developed utilizing the Swin Transformer as the backbone network. In this model, the Swin Transformer produces four layers of features. Each layer of mapped features is subjected to Convolution-Batch normalization-ReLU (CBR) processing to ensure that the backbone features maintain a uniform channel size. Subsequently, all backbone features are concatenated along the channel dimension, after which convolution operations are performed to yield pixel-wise feature representations. In the next phase, an auxiliary branch is designed that integrates Densely connected Atrous Spatial Pyramid Pooling (DenseASPP), Adjacent Feature Fusion Modules (AFFM), and a scoring module, facilitating self-distillation to guide the main network. The specific architecture is depicted. The self-distillation learning framework consists of four sub-branches, labeled FZ1 to FZ4, alongside a main branch labeled FZ0. Each auxiliary sub-branch is connected to different layers of the backbone network to extract layer-specific features and produce a Knowledge Representation Header (KRH) that serves as the segmentation result. The main branch is linked to the fully connected layer to extract fused features and optimize the mixed features from various layers of the backbone network. Finally, a top-down learning strategy is employed to guide the model’s training, ensuring consistency in self-distillation. The KRH0 derived from the main branch FZ0 integrates the knowledge KRH1-KRH4 obtained from each sub-branch FZ1–FZ4, steering the overall optimization direction for self-distillation learning. Consequently, the main branch and sub-branches can be regarded as teacher and student entities, respectively, forming four distillation pairs, with FZ0 directing FZ1–FZ4. This top-down distillation strategy leverages the main branch to instruct the sub-branches to learn independently, thereby enabling the sub-branches to acquire more discriminative features from the main branch while maintaining consistency in the optimization direction between the sub-branches and the main branch. Results and Discussions The results quantitatively demonstrate the segmentation performance of the proposed method. The data indicates that the proposed method consistently achieves superior segmentation results across all four datasets. On average, the metric F_β of the proposed method exceeds that of the suboptimal method, Transformer Knowledge Distillation (TKD), by 1.18%. Additionally, the mean Intersection over Union (mIoU) metric of the proposed method is 0.86% higher than that of the suboptimal method, Target-Aware Transformer (TAT). These results demonstrate that the proposed method effectively addresses the challenge of camouflage target segmentation. Notably, on the Camouflage Object Detection (COD) dataset, the proposed method improves F_β by about 2.29% compared to TKD, while achieving an enhancement of 1.72% in mIoU relative to TAT. Among CNN methods, Poolnet+ (POOL+) attained the highest average F_β, yet it falls short of the proposed method by 5.05%. This difference can be attributed to the Transformer’s capability to overcome the limitations of the restricted receptive field inherent in CNNs, thereby extracting a greater amount of semantic information from images. The results also show that the self-distillation method is similarly effective within the Transformer framework, significantly enhancing the segmentation performance of the Transformer model. The proposed method outperforms other self-distillation strategies, achieving the best segmentation results across all four datasets. When compared to the baseline model, the average metrics for F_β and mIoU exhibit increases of 2.42% and 3.54%, respectively. Conclusions The proposed self-distillation algorithm enhances object segmentation performance and demonstrates the efficacy of self-distillation within the Transformer architecture.
- Self-distillation /
- Transformer /
- Object segmentation /
- Feature pyramid

HTML全文

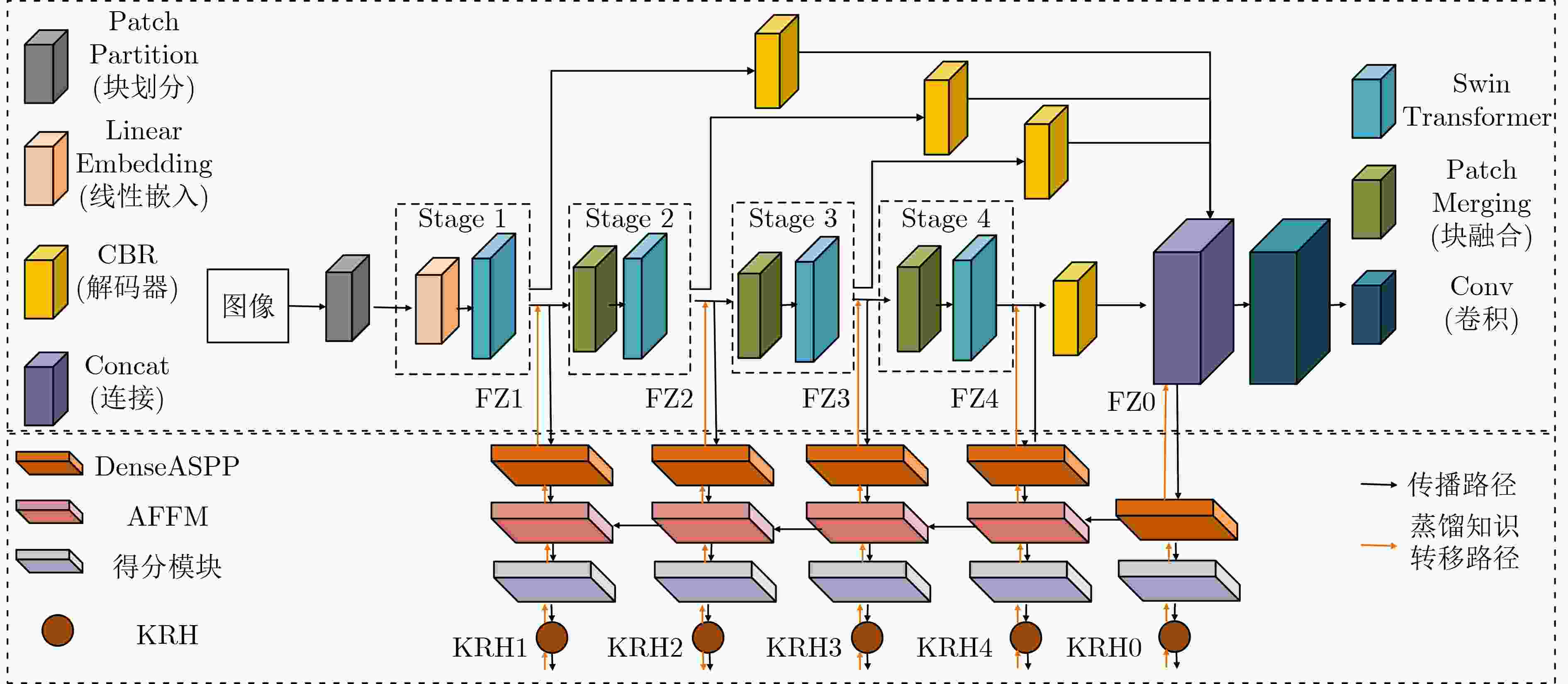

圖 1 基于Transformer的自蒸餾目標分割模型示意圖

下載: 全尺寸圖片幻燈片

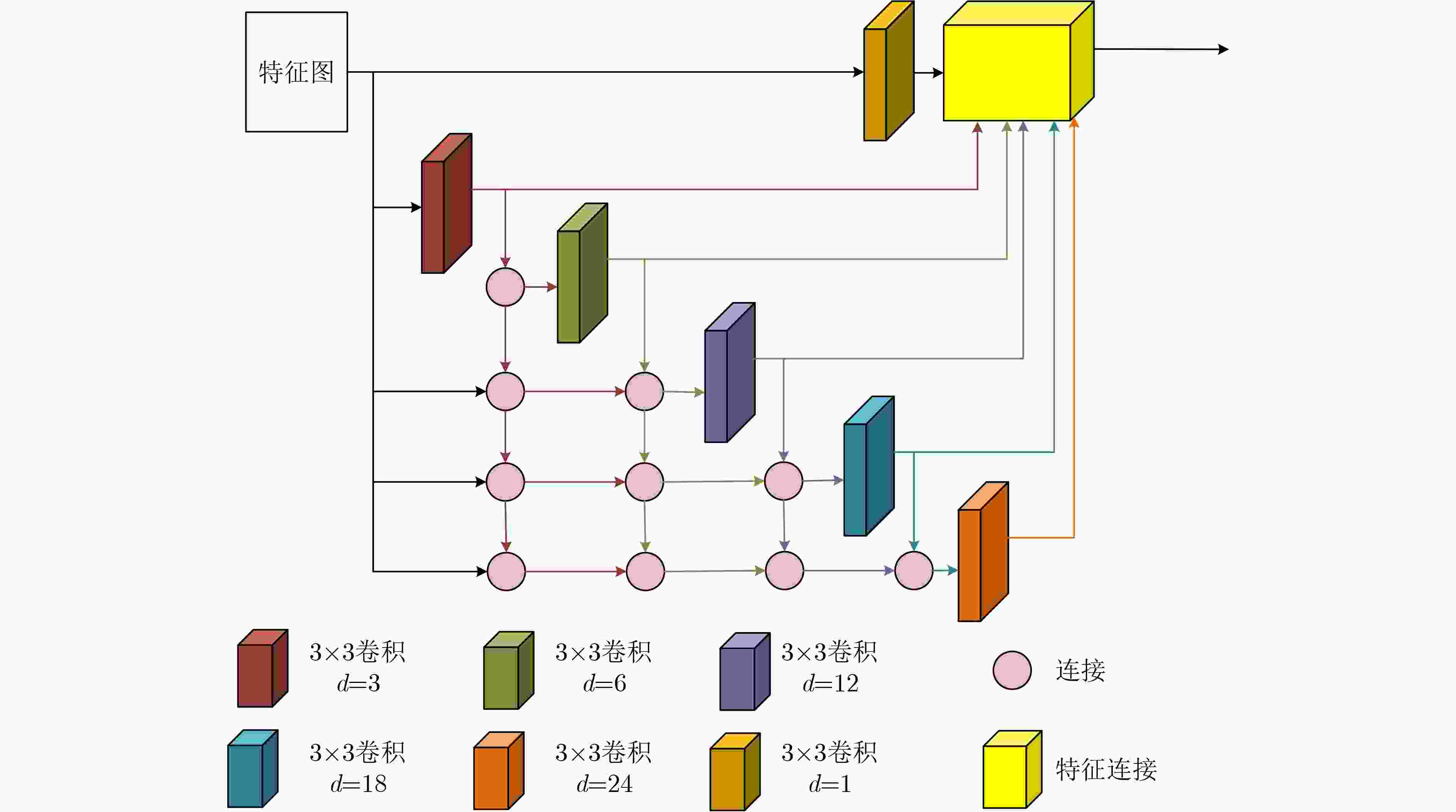

圖 2 DenseASPP結構示意圖

下載: 全尺寸圖片幻燈片

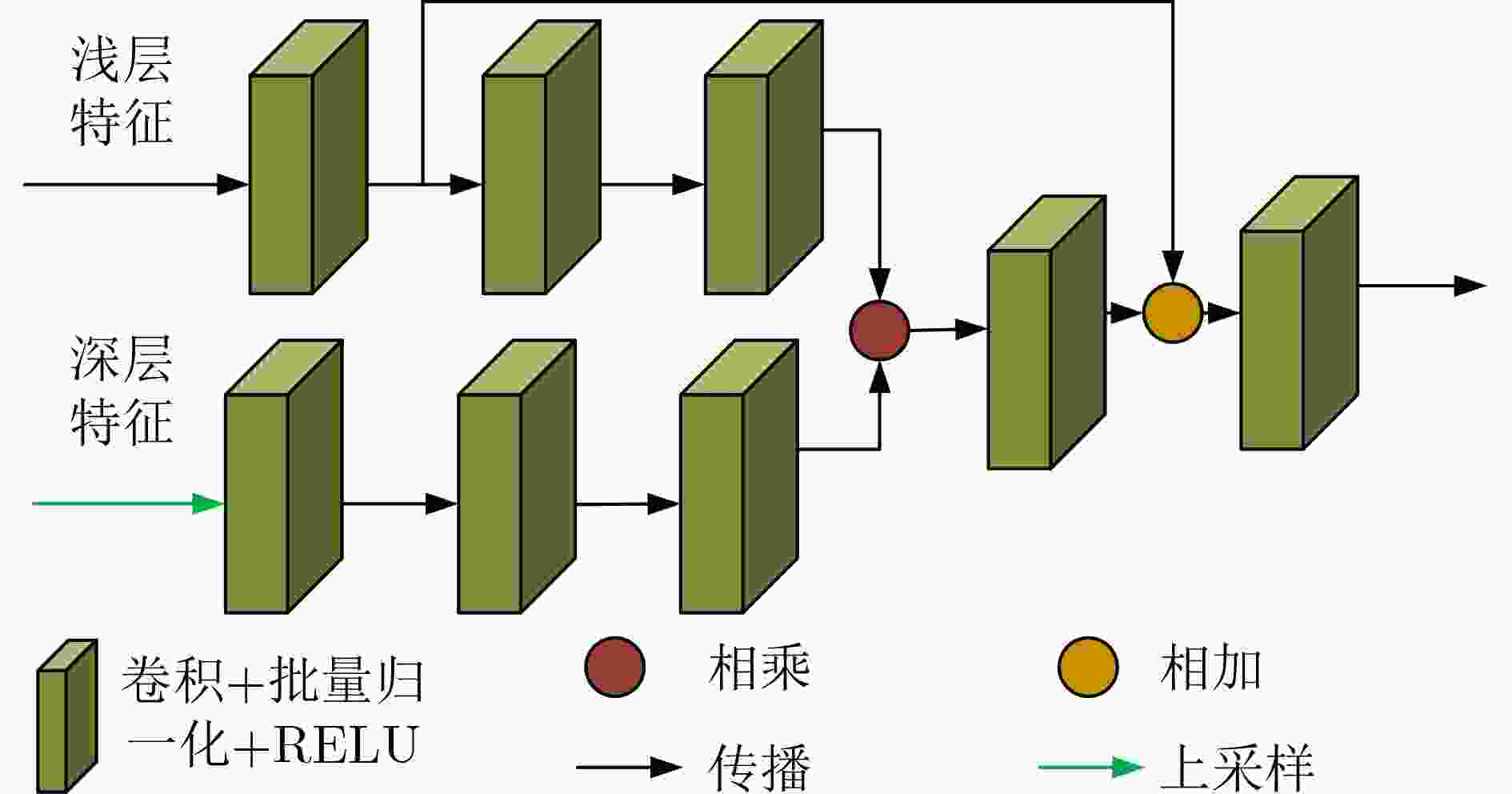

圖 3 AFFM結構示意圖

下載: 全尺寸圖片幻燈片

圖 4 得分模塊結構示意圖

下載: 全尺寸圖片幻燈片

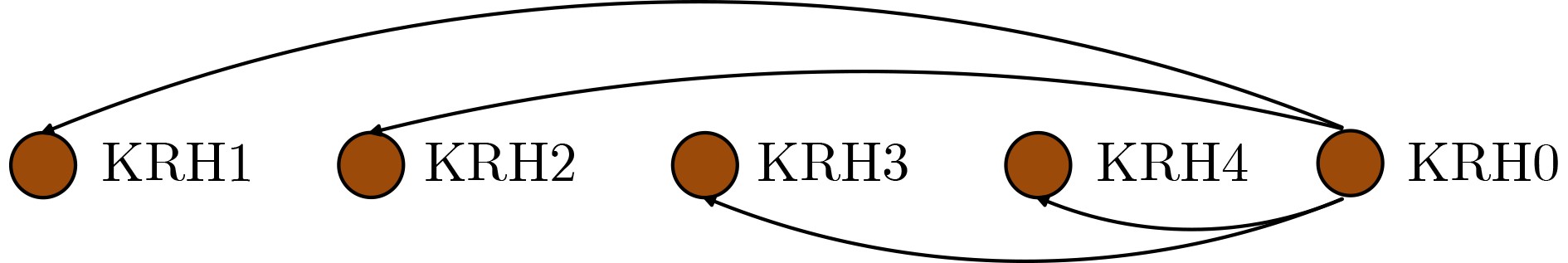

圖 5 學習策略示意圖

下載: 全尺寸圖片幻燈片

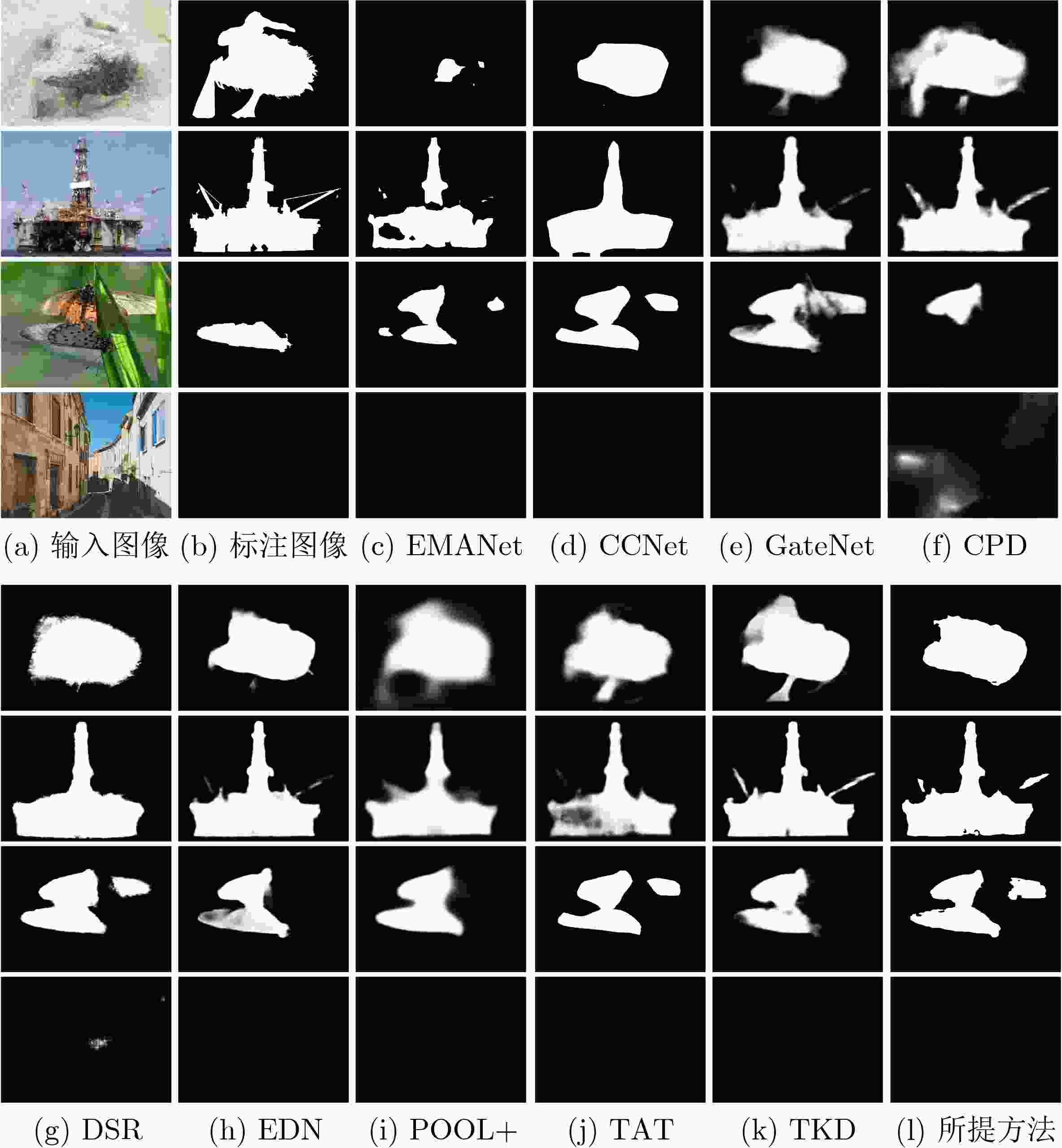

圖 6 不同目標分割算法效果圖

下載: 全尺寸圖片幻燈片

表 1 不同分割方法的分割結果(%)

方法	COD		DUT-O		THUR		SOC		平均值
方法	F_β	mIoU	F_β	mIoU	F_β	mIoU	F_β	mIoU	F_β	mIoU
EMANet	63.07	26.42	78.38	59.86	82.60	62.70	86.83	71.63	74.02	51.61
CCNet	64.44	41.27	79.70	63.15	84.80	70.10	87.27	77.79	74.90	56.91
GateNet	65.81	46.11	82.22	70.04	87.59	78.60	88.20	79.71	78.40	64.33
CPD	60.42	42.94	83.38	72.33	87.90	79.38	83.59	71.42	76.53	62.46
DSR	54.68	36.25	80.63	66.83	84.04	72.25	82.44	73.04	69.69	55.24
EDN	65.27	46.04	84.23	75.38	88.71	83.31	74.89	63.94	78.71	68.40
POOL+	61.55	45.39	82.95	70.84	85.25	74.74	87.92	79.39	79.42	67.59
TAT	67.95	47.05	84.28	71.65	88.65	78.34	89.45	80.36	82.58	69.35
TKD	68.46	46.83	83.96	71.27	88.86	78.35	89.35	80.06	82.66	69.13
所提方法	70.03	47.86	85.34	71.87	89.54	79.78	89.64	81.34	83.64	70.21

下載: 導出CSV

表 2 不同自蒸餾方法的分割結果(%)

方法	COD		DUT-0		THUR		SOC		平均值
方法	F_β	mIoU	F_β	mIoU	F_β	mIoU	F_β	mIoU	F_β	mIoU
BL	67.34	46.09	83.03	68.25	88.24	77.54	88.03	79.34	81.66	67.81
BL+DKS	68.45	47.26	84.78	70.37	88.62	78.52	89.26	80.54	82.78	69.17
BL+BYOT	68.38	46.32	85.03	70.34	88.57	77.83	88.36	80.37	82.58	68.72
BL+DHM	67.52	45.67	84.23	69.53	89.32	76.97	88.75	81.13	82.45	68.33
BL+SA	69.21	46.23	84.16	69.30	89.24	78.24	88.69	80.24	82.83	68.50
所提方法	70.03	47.86	85.34	71.87	89.54	79.78	89.64	81.34	83.64	70.21

下載: 導出CSV

表 3 不同目標分割方法效率

	EMANet	CCNet	GateNet	CPD	DSR	POOL+	TAT	所提方法
參數(MB)	34.80	52.10	128.63	47.85	75.29	70.50	140.21	132.25
速度	37.59	35.34	33.03	32.60	8.80	21.53	18.54	36.15

下載: 導出CSV

表 4 消融實驗結果

序號	自蒸餾模塊		學習策略	結果(%)
序號	DenseASPP	AFFM	自上而下	F_β	mIoU
1	×	×	×	67.34	46.09
2	×	×	√	67.53	46.28
3	√	×	√	69.03	47.11
4	×	√	√	68.34	46.84
5	√	√	×	69.23	46.96
6	√	√	√	70.03	47.86

下載: 導出CSV
