STAR-RIS輔助URLLC-NOMA系統的聯合波束成形設計

朱建月; 吳雨桐; 陳曉; 謝亞琴; 許堯; 張治中

doi:10.11999/JEIT240717

STAR-RIS輔助URLLC-NOMA系統的聯合波束成形設計

doi: 10.11999/JEIT240717 cstr: 32379.14.JEIT240717

1.
南京信息工程大學電子與信息工程學院南京 210044
2.
東南大學網絡空間安全學院南京 211189
3.
南京信息工程大學人工智能學院(未來技術學院) 南京 210044

基金項目: 國家自然科學基金(62101273)，江蘇省自然科學基金(BK20220439, BK20220438)，江蘇省高等學?；A(chǔ)科學(自然科學)研究面上項目(22KJB510005, 22KJB510033)，江蘇省重點研發計劃(BE2023088)，江蘇省雙創團隊((2023)200008號)

詳細信息

作者簡介:
朱建月：女，講師，研究方向?yàn)槎嘀方尤爰夹g(shù)、大規模MIMO無線傳輸技術、無線資源管理等

吳雨桐：女，學士，研究方向?yàn)槎嗵炀€傳輸技術、多址接入技術等

陳曉：女，講師，研究方向?yàn)橹悄艹砻?、大?guī)模MIMO系統、基于深度學習通信技術等

謝亞琴：女，副教授，研究方向?yàn)闊o線定位技術、衛星導航、通信網絡規劃與優化等

許堯：男，講師，博士，研究方向?yàn)榉钦欢嘀方尤?、正交時頻空間調制等

張治中：男，教授，博士，研究方向?yàn)橐苿?dòng)通信、通信網絡與測試技術等

通訊作者:
朱建月　zhujy@nuist.edu.cn

中圖分類號: TN929.5
計量
- 文章訪問數: 260
- HTML全文瀏覽量: 115
- PDF下載量: 49
- 被引次數: 0
出版歷程
- 收稿日期: 2024-08-19
- 修回日期: 2025-02-14
- 網絡出版日期: 2025-02-24
- 刊出日期: 2025-02-28

Joint Beamforming Design for STAR-RIS Assisted URLLC-NOMA System

1.
School of Electronic and Information Engineering, Nanjing University of Information Science and Technology, Nanjing 210044, China
2.
School of Cyberspace Security, Southeast University, Nanjing 211189, China
3.
School of Artificial Intelligence/School of Future Technology, Nanjing University of Information Science, Nanjing University of Information Science and Technology, Nanjing 210044, China

Funds: The National Natural Science Foundation of China (62101273), The Natural Science Foundation of Jiangsu Province of China (BK20220439, BK20220438), The Natural Science Foundation of the Jiangsu Higher Education Institutions of China (22KJB510005, 22KJB510033), Jiangsu Provincial Key Research and Development Program (BE2023088), Jiangsu Provincial Innovation and Entrepreneurship Team ((2023)200008)

摘要

摘要: 針對超可靠低時延通信(URLLC)場景，該文研究了融合透射與反射功能的智能超表面(STAR-RIS)輔助的非正交多址接入(NOMA)系統的傳輸設計。具體而言，該文聯合設計了基站端的波束成形向量、RIS端的透射相移矩陣和反射相移矩陣，以在滿足基站總功率約束的條件下實現能耗最小化。為解決所提出的非凸問題，該文首先分析了有限塊長傳輸下的用戶速率函數特性，并據此將優化問題進行等價轉換。隨后，采用交替優化和半正定松弛(SDR)方法來解決聯合波束設計問題。實驗結果表明，與正交多址接入和傳統RIS方案相比，所提出的方法在能耗性能上有顯著提升。
- 智能反射面 /
- 非正交多址接入技術 /
- 波束成形設計
Abstract: Objective This paper addresses the energy efficiency challenge in Ultra-Reliable Low-Latency Communication (URLLC) systems, crucial for mission-critical applications such as industrial automation and remote surgery. The integration of Simultaneously Transmitting and Reflecting Reconfigurable Intelligent Surfaces (STAR-RIS) with Non-Orthogonal Multiple Access (NOMA) is proposed to improve spectral efficiency and coverage while meeting URLLC’s stringent reliability and latency requirements. However, the joint optimization of base station beamforming, STAR-RIS transmission, and reflection matrices presents a non-trivial problem due to non-convexity and coupled variables. This work aims to minimize energy consumption under a total power constraint by jointly designing these parameters, advancing STAR-RIS-aided NOMA systems for URLLC. Methods To address the non-convex optimization problem, the proposed methodology involves several key steps. First, the user rate function under finite blocklength transmission is analyzed, considering the specific requirements of URLLC. This analysis facilitates the reformulation of the original problem into an equivalent form more amenable to optimization. Specifically, the rate function is approximated using a Taylor series expansion, and the effect of finite blocklength on decoding error probability is incorporated into the optimization framework.Next, an alternating optimization framework is adopted to decouple the joint design problem into subproblems, each focused on optimizing either the base station beamforming, the STAR-RIS transmission matrix, or the reflection matrix. Semidefinite Relaxation (SDR) techniques are then applied to address the non-convexity of these subproblems, ensuring efficient and tractable solutions. The SDR method transforms the original non-convex constraints into convex ones by relaxing certain matrix rank constraints, which are subsequently recovered using randomization techniques.The proposed approach is validated through extensive simulations, comparing its performance with Orthogonal Multiple Access (OMA) and traditional RIS-aided schemes. The simulation setup includes a multi-user scenario with varying channel conditions, blocklengths, and reliability requirements. Results and Discussions The main contributions of this paper are summarized as follows:(1) Joint Optimization of Active and Passive Beamforming Vectors: To minimize system transmission power, the paper jointly optimizes the active beamforming vector at the base station and the passive beamforming vector at the reflective surface, presenting an efficient joint beamforming design algorithm (Algorithm 1). (2) Validation and Energy Efficiency Comparison: Experimental results confirm the effectiveness of the proposed joint beamforming design. A comparison of energy consumption performance for STAR-RIS under different modes is provided. Specifically, the proposed STAR-RIS-aided NOMA scheme demonstrates a significant reduction in power consumption compared to OMA and conventional RIS-aided systems (Fig. 2 and Fig. 5). The proposed joint beamforming and STAR-RIS optimization framework effectively addresses the trade-offs between energy consumption, reliability, and latency in URLLC systems. Conclusions This paper presents a comprehensive framework for the transmission design of STAR-RIS-aided NOMA systems in URLLC scenarios. By jointly optimizing beamforming, transmission, and reflection matrices, the proposed method significantly enhances energy efficiency while meeting the stringent requirements of URLLC. The use of alternating optimization and SDR techniques effectively addresses the non-convexity of the problem, providing practical and scalable solutions.The results highlight the potential of STAR-RIS-aided NOMA systems to support next-generation wireless communication applications, laying the foundation for further research in this area. Future work will explore the integration of machine learning techniques to further enhance the performance and adaptability of the proposed framework. Additionally, the impact of hardware impairments and imperfect channel state information on system performance will be investigated to ensure robustness in real-world deployments.
- Reconfigurable intelligent surface /
- Non-Orthogonal Multiple Access (NOMA) /
- Beamforming design

HTML全文

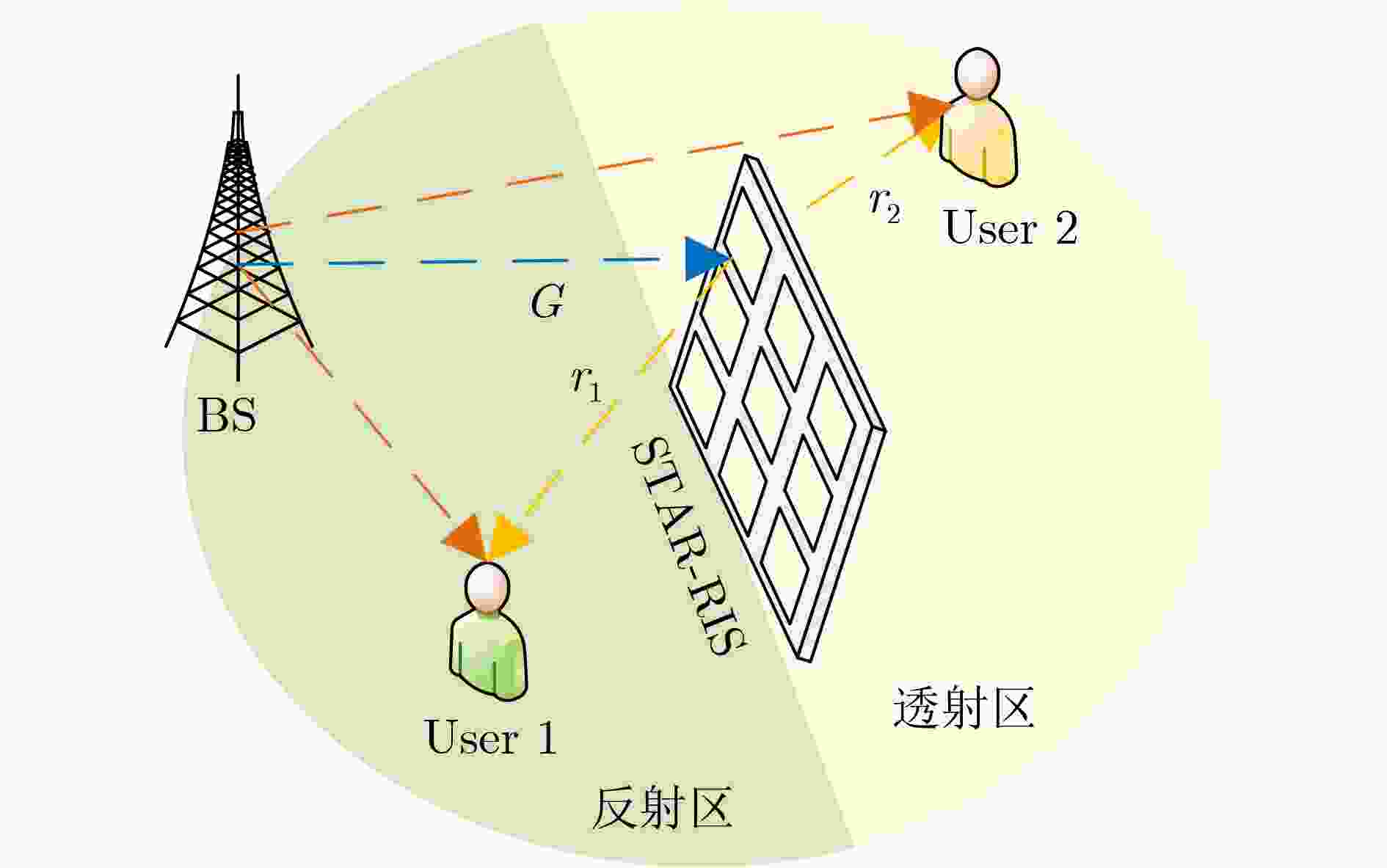

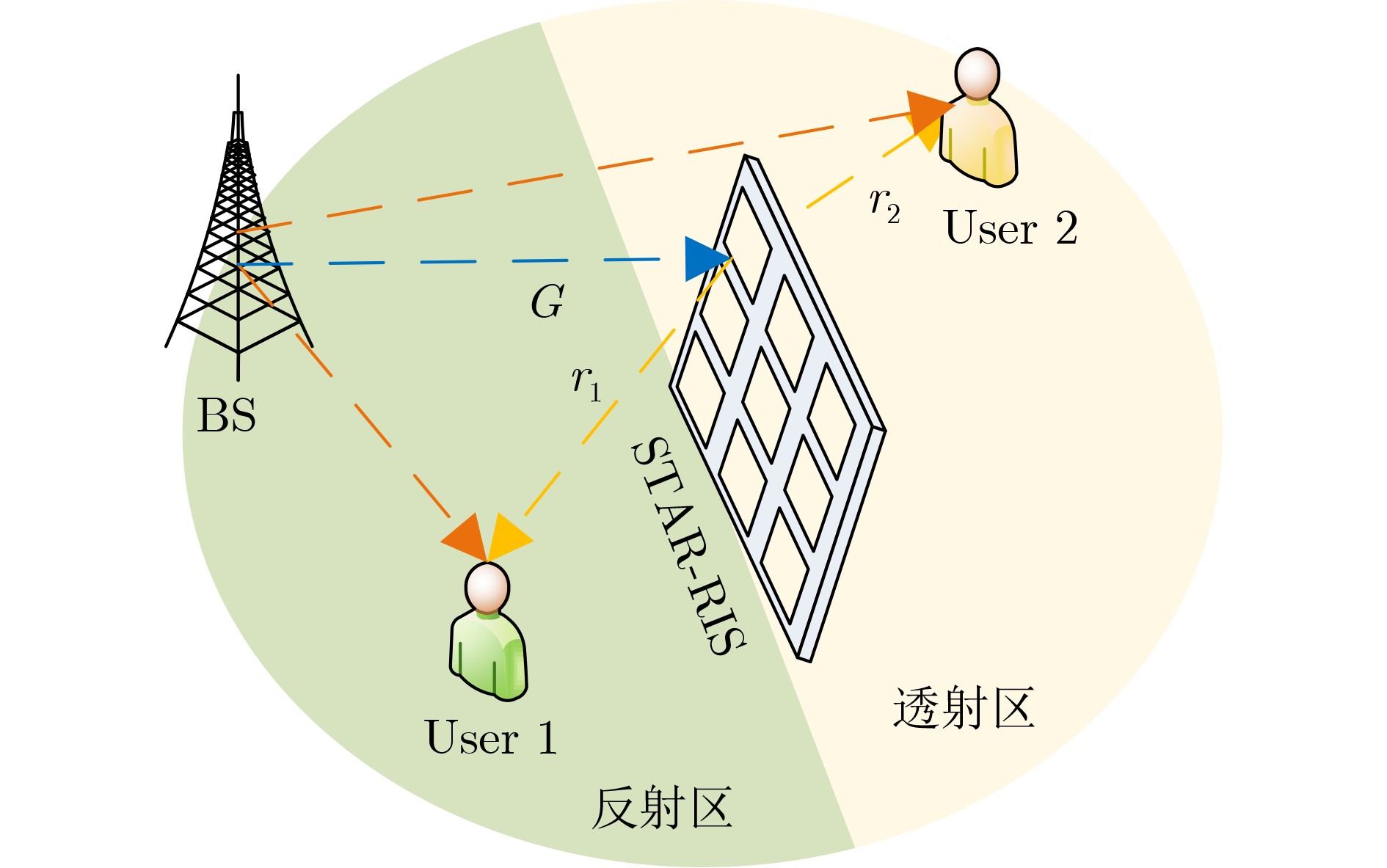

圖 1 STAR-RIS輔助NOMA URLLC系統模型

下載: 全尺寸圖片幻燈片

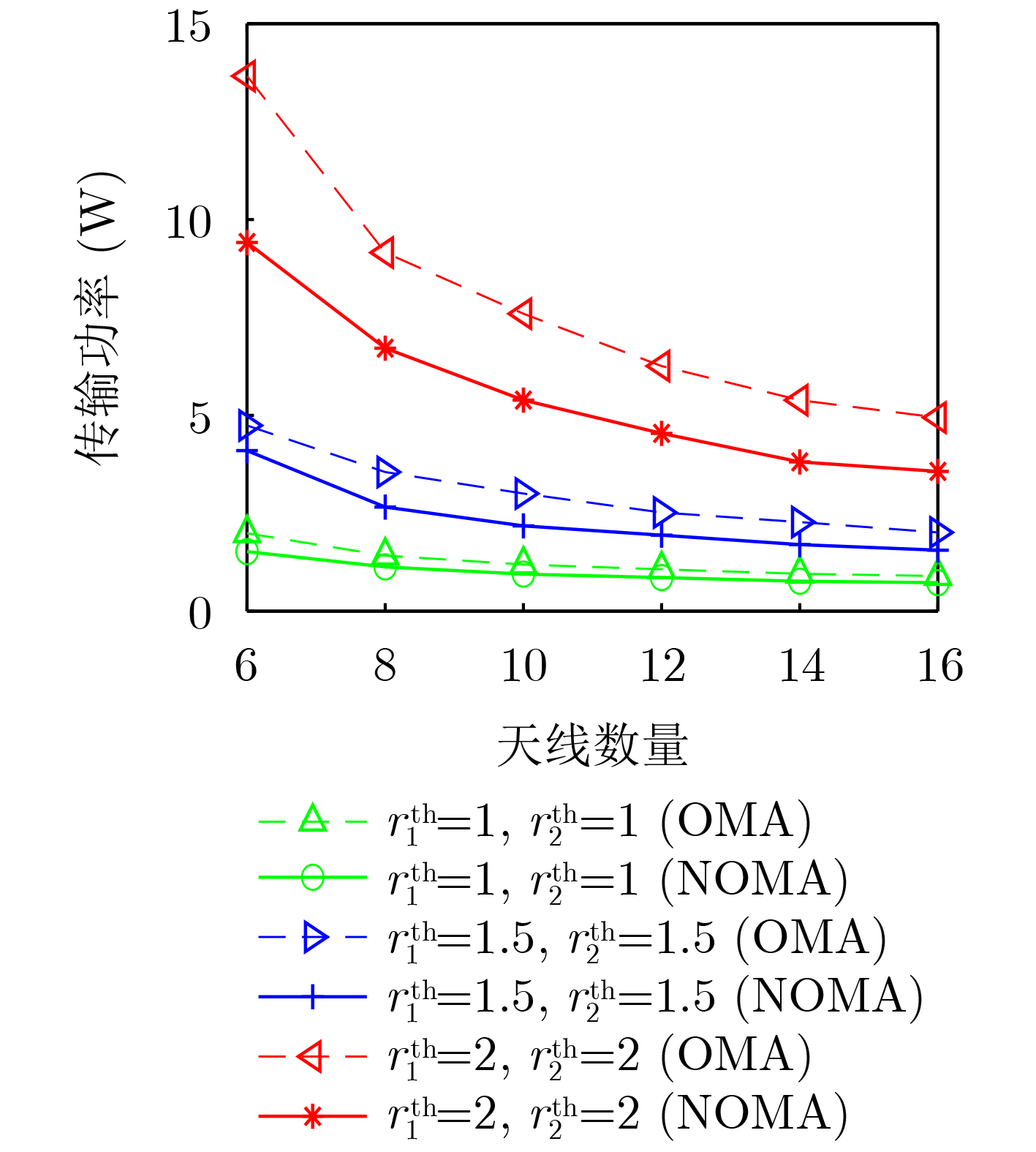

圖 2 在用戶不同的目標數據速率下天線數量與傳輸功率的關系

下載: 全尺寸圖片幻燈片

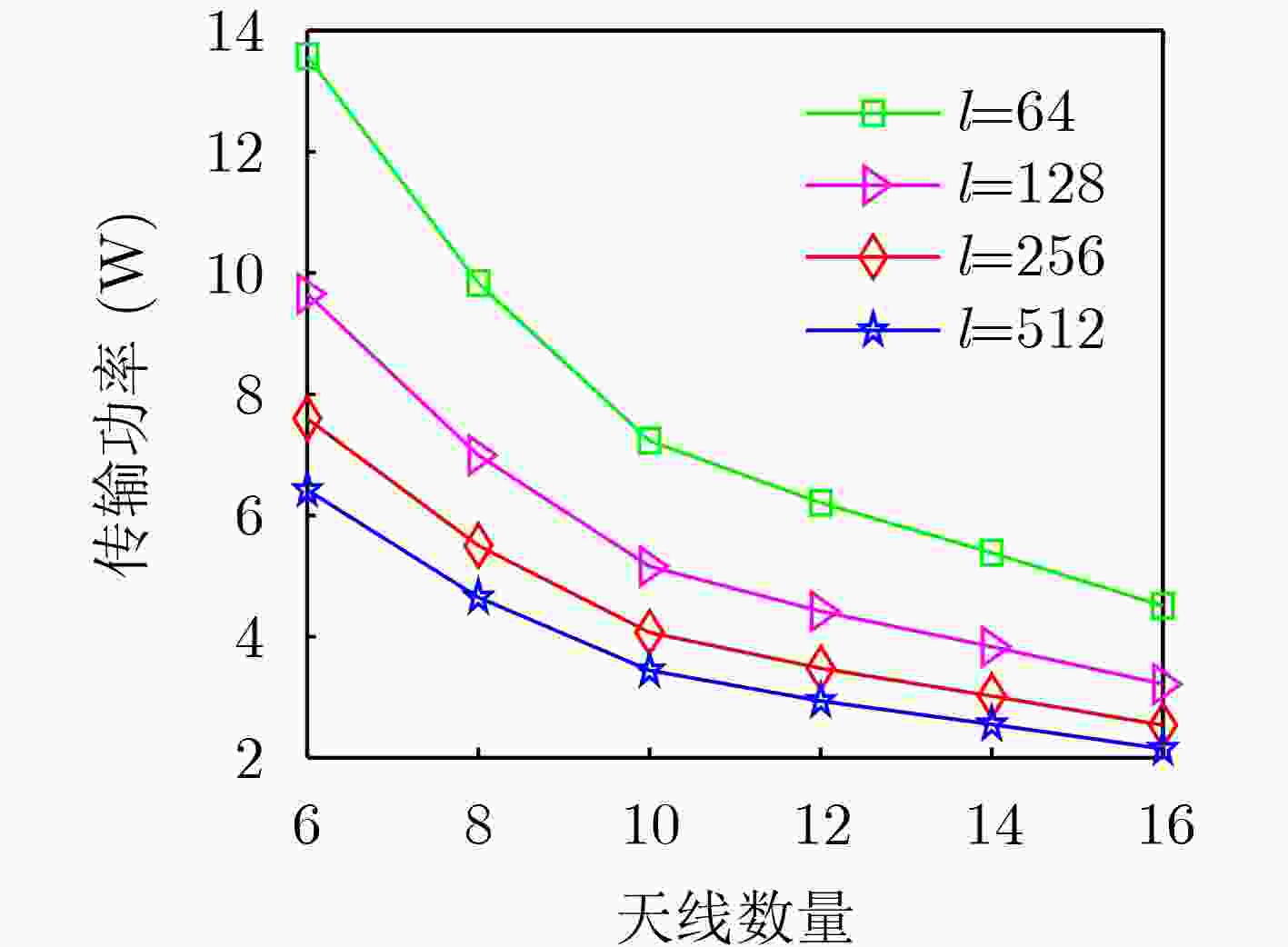

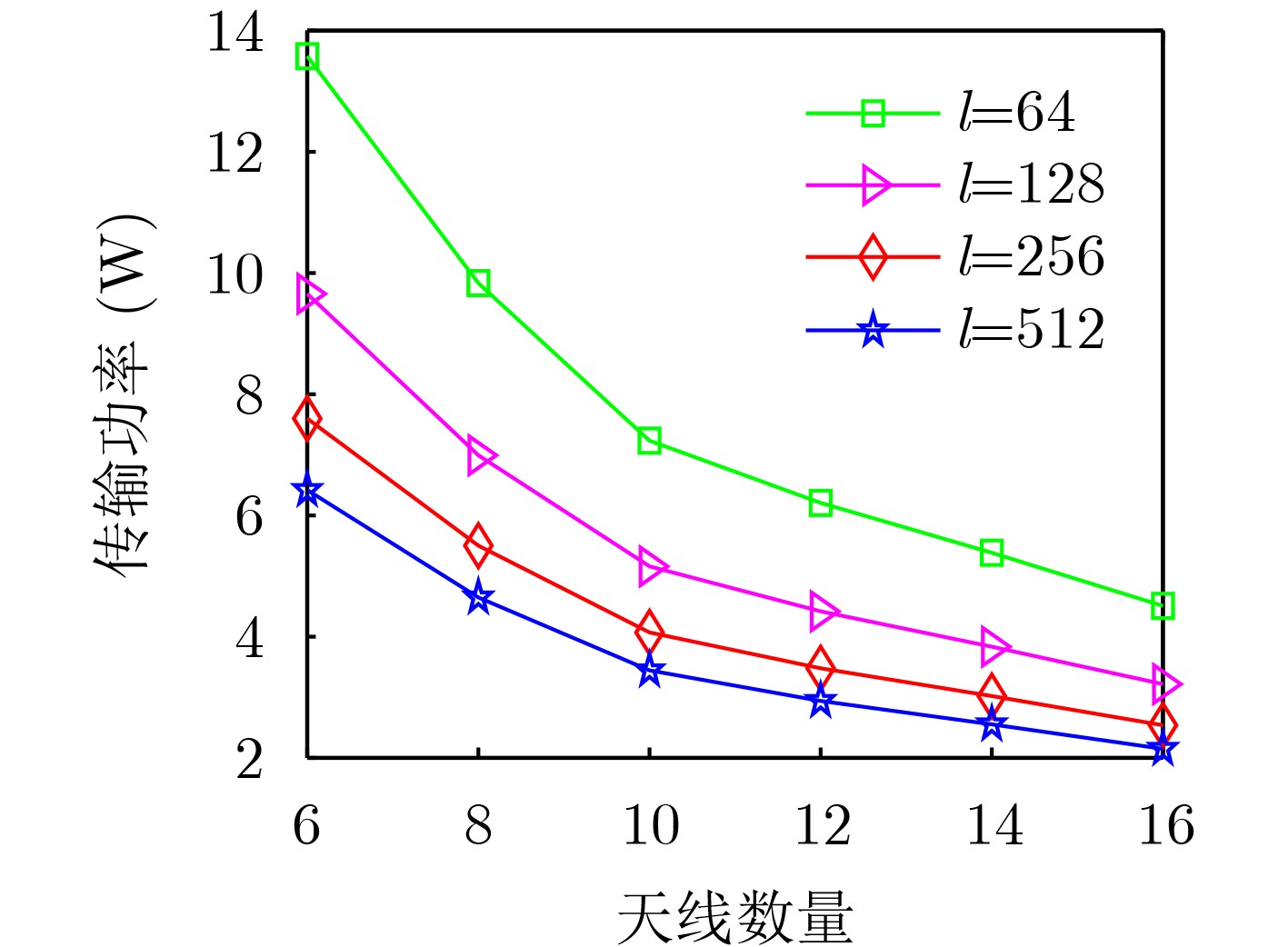

圖 3 在不同塊長$l$ 下天線數量與發射功率的關系

下載: 全尺寸圖片幻燈片

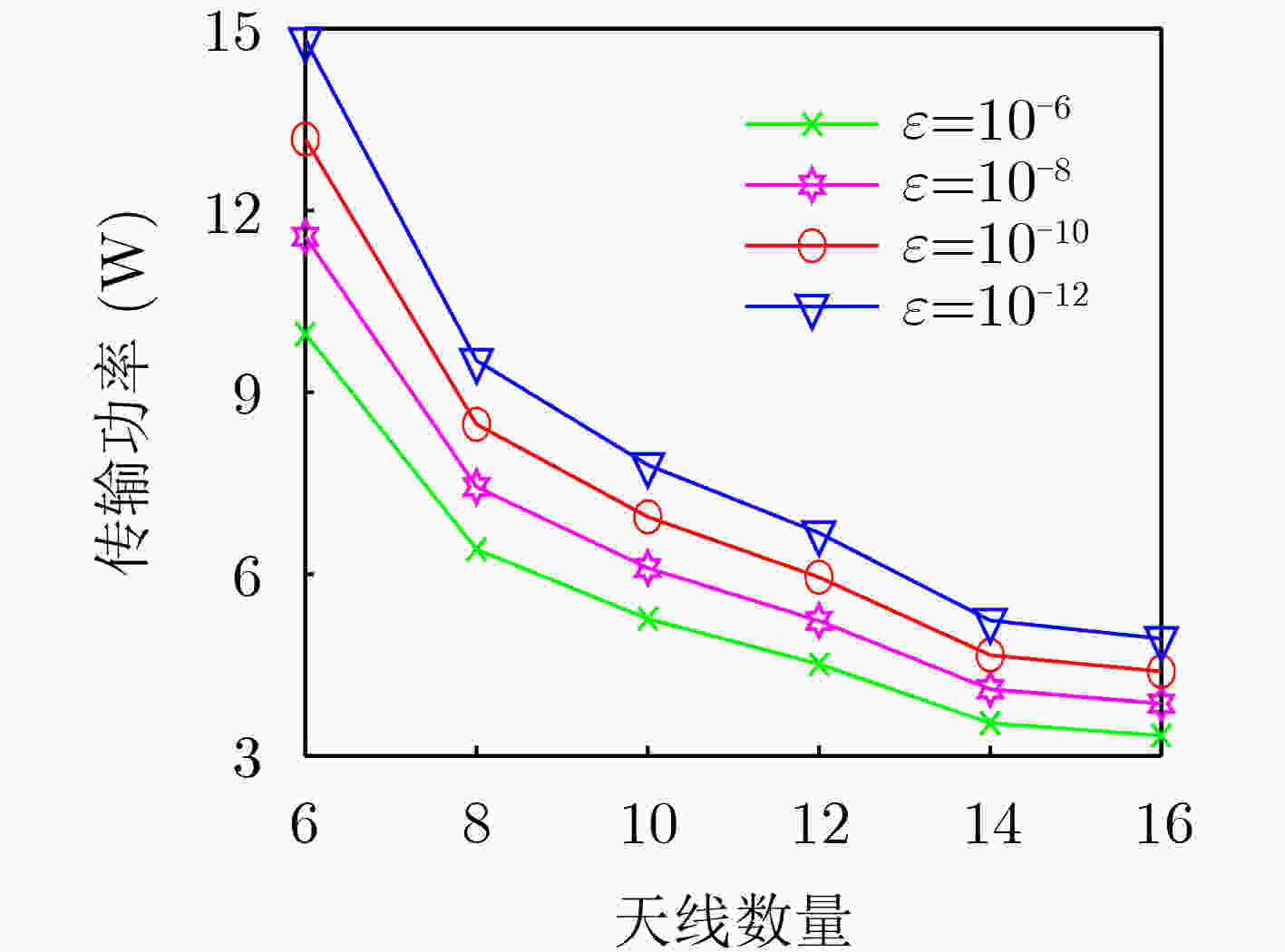

圖 4 在不同解碼錯誤概率$ \varepsilon $下天線數量與發射功率的關系

下載: 全尺寸圖片幻燈片

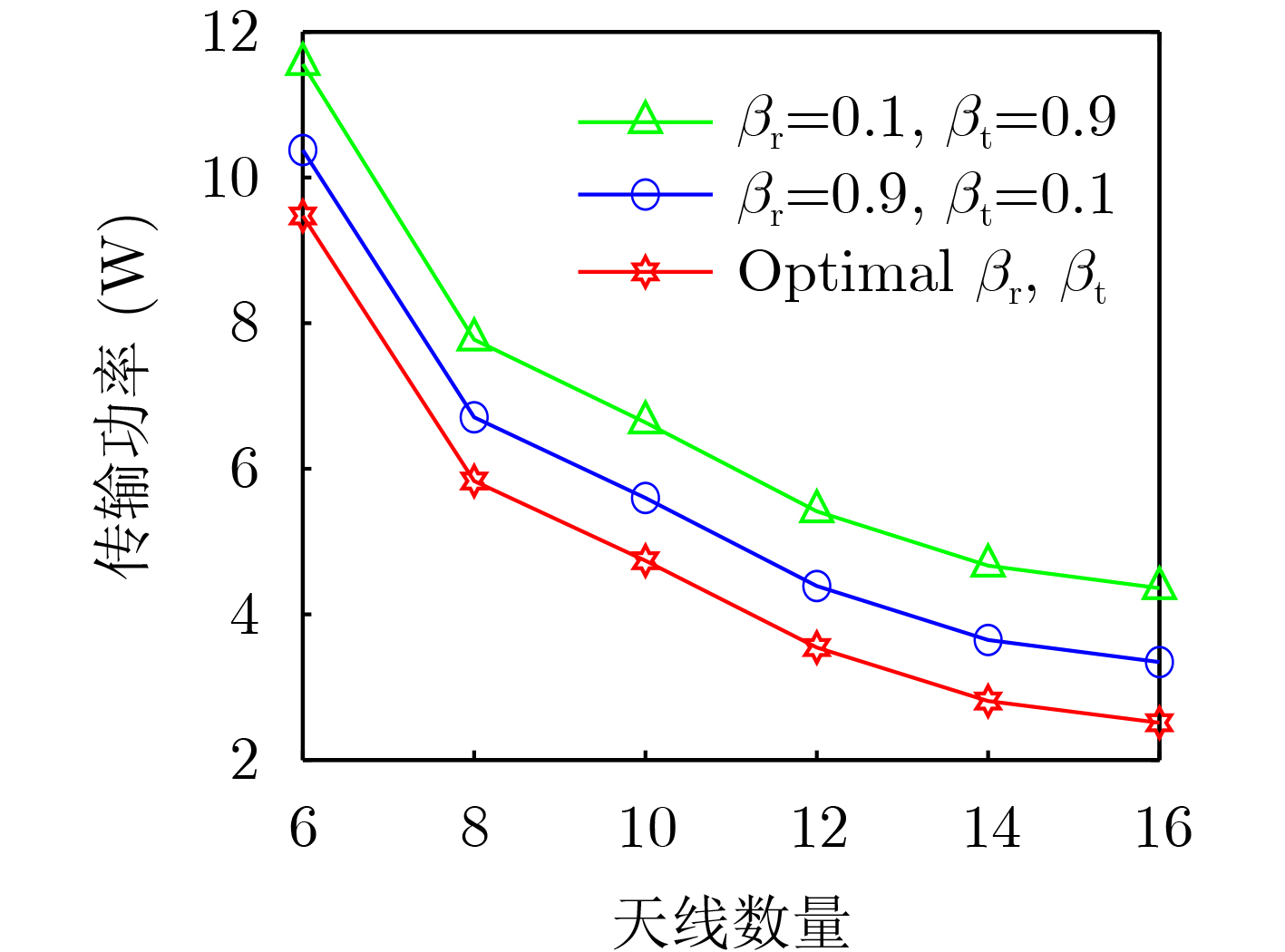

圖 5 ${\beta _{\mathrm{r}}}$和${\beta _{\mathrm{t}}}$不同取值時天線數量與發射功率的關系

下載: 全尺寸圖片幻燈片

1 主被動波束成形聯合優化設計算法

1. 初始化：迭代次數iter=0，${\boldsymbol{\varTheta }}_{\mathrm{t}}^{(0)}$, ${\boldsymbol{\varTheta }}_{\mathrm{r}}^{(0)}$，臨界值$\eta \gt 0$；
2. 重復步驟3–步驟4：
3. 給定${\boldsymbol{\varTheta }}_{\mathrm{t}}^{({\text{iter}})}$, ${\boldsymbol{\varTheta }}_{\mathrm{r}}^{({\text{iter}})}$，通過求解問題式得到${\boldsymbol{w}}_i^$，$i = 1,2$，　令${\boldsymbol{w}}_i^{({\text{iter}})} = {\boldsymbol{w}}_i^$，$i = 1,2$；
4. 給定${\boldsymbol{w}}_i^{({\text{iter}})}$，$i = 1,2$，通過求解問題式得到${\boldsymbol{\varTheta }}_{\mathrm{t}}^$和${\boldsymbol{\varTheta }}_{\mathrm{r}}^$，令　${\boldsymbol{\varTheta }}_{\mathrm{t}}^{({\text{iter}})} = {\boldsymbol{\varTheta }}_{\mathrm{t}}^$，${\boldsymbol{\varTheta }}_{\mathrm{r}}^{({\text{iter}})} = {\boldsymbol{\varTheta }}_{\mathrm{r}}^$；
5. 直到系統的最小功率收斂到精度$\eta $或達到指定的迭代次數。

下載: 導出CSV

參考文獻(25)

[1]	DANG Shuping, AMIN O, SHIHADA B, et al. What should 6G be?[J]. Nature Electronics, 2020, 3(1): 20–29. doi: 10.1038/s41928-019-0355-6.
[2]	CHOWDHURY M Z, SHAHJALAL M, AHMED S, et al. 6G wireless communication systems: Applications, requirements, technologies, challenges, and research directions[J]. IEEE Open Journal of the Communications Society, 2020, 1: 957–975. doi: 10.1109/OJCOMS.2020.3010270.
[3]	CHENG Qiang, JIN Shi, CUI Tiejun. Reconfigurable intelligent surfaces for wireless communications[J]. Frontiers of Information Technology Electronic Engineering, 2023, 24(12): 1665–1668. doi: 10.1631/FITEE.2320000.
[4]	ZHAO Yajun. Reconfigurable intelligent surfaces for 6G: Applications, challenges, and solutions[J]. Frontiers of Information Technology & Electronic Engineering, 2023, 24(12): 1669–1688. doi: 10.1631/FITEE.2200666.
[5]	DING Zhiguo, LV Lu, FANG Fang, et al. A state-of-the-art survey on reconfigurable intelligent surface-assisted non-orthogonal multiple access networks[J]. Proceedings of the IEEE, 2022, 110(9): 1358–1379. doi: 10.1109/JPROC.2022.3174140.
[6]	HOU Tianwei, LIU Yuanwei, SONG Zhengyu, et al. Reconfigurable intelligent surface aided NOMA networks[J]. IEEE Journal on Selected Areas in Communications, 2020, 38(11): 2575–2588. doi: 10.1109/JSAC.2020.3007039.
[7]	YANG Gang, XU Xinyue, LIANG Yingchang, et al. Reconfigurable intelligent surface-assisted non-orthogonal multiple access[J]. IEEE Transactions on Wireless Communications, 2021, 20(5): 3137–3151. doi: 10.1109/TWC.2020.3047632.
[8]	ZHU Jianyue, HUANG Yongming, WANG Jiaheng, et al. Power efficient IRS-assisted NOMA[J]. IEEE Transactions on Communications, 2021, 69(2): 900–913. doi: 10.1109/TCOMM.2020.3029617.
[9]	WU Qingqing, ZHANG Shuowen, ZHENG Beixiong, et al. Intelligent reflecting surface-aided wireless communications: A tutorial[J]. IEEE transactions on Communications, 2021, 69(5): 3313–3351. doi: 10.1109/TCOMM.2021.3051897.
[10]	LIU Yuanwei, MU Xidong, XU Jiaqi, et al. STAR: Simultaneous transmission and reflection for 360° coverage by intelligent surfaces[J]. IEEE Wireless Communications, 2021, 28(6): 102–109. doi: 10.1109/MWC.001.2100191.
[11]	MU Xidong, LIU Yuanwei, GUO Li, et al. Simultaneously transmitting and reflecting (STAR) RIS aided wireless communications[J]. IEEE Transactions on Wireless Communications, 2022, 21(5): 3083–3098. doi: 10.1109/TWC.2021.3118225.
[12]	LIU Yuanwei, XU Jiaqi, WANG Zhaolin, et al. Simultaneously transmitting and reflecting (STAR) RISs for 6G: Fundamentals, recent advances, and future directions[J]. Frontiers of Information Technology & Electronic Engineering, 2023, 24(12): 1689–1707. doi: 10.1631/FITEE.2300490.
[13]	ZUO Jiakuo, LIU Yuanwei, DING Zhiguo, et al. Joint design for simultaneously transmitting and reflecting (STAR) RIS assisted NOMA systems[J]. IEEE Transactions on Wireless Communications, 2023, 22(1): 611–626. doi: 10.1109/TWC.2022.3197079.
[14]	WU Chenyu, LIU Yuanwei, MU Xidong, et al. Coverage characterization of STAR-RIS networks: NOMA and OMA[J]. IEEE Communications Letters, 2021, 25(9): 3036–3040. doi: 10.1109/LCOMM.2021.3091807.
[15]	GUO Yi, FANG Fang, CAI Donghong, et al. Energy-efficient design for a NOMA assisted STAR-RIS network with deep reinforcement learning[J]. IEEE Transactions on Vehicular Technology, 2023, 72(4): 5424–5428. doi: 10.1109/TVT.2022.3224926.
[16]	GAO Qiling, LIU Yuanwei, MU Xidong, et al. Joint location and beamforming design for STAR-RIS assisted NOMA systems[J]. IEEE Transactions on Communications, 2023, 71(4): 2532–2546. doi: 10.1109/TCOMM.2023.3247753.
[17]	侯天為, 李潔, 王俊, 等. 非正交多址接入的同步透射反射智能超表面信號增強算法[J]. 北京郵電大學學報, 2024, 47(1): 7–12. doi: 10.13190/j.jbupt.2022-279. HOU Tianwei, LI Jie, WANG Jun, et al. A signal enhancement algorithm for simultaneous-transmitting- and-reflecting reconfigurable intelligent surface based on non-orthogonal multiple access networks[J]. Journal of Beijing University of Posts and Telecommunications, 2024, 47(1): 7–12. doi: 10.13190/j.jbupt.2022-279.
[18]	YUE Chentao, MILOSLAVSKAYA V, SHIRVANIMOGHADDAM M, et al. Efficient decoders for short block length codes in 6G URLLC[J]. IEEE Communications Magazine, 2023, 61(4): 84–90. doi: 10.1109/MCOM.001.2200275.
[19]	DURISI G, KOCH T, and POPOVSKI P. Toward massive, ultrareliable, and low-latency wireless communication with short packets[J]. Proceedings of the IEEE, 2016, 104(9): 1711–1726. doi: 10.1109/JPROC.2016.2537298.
[20]	POLYANSKIY Y, POOR H V, and VERDú S. Channel coding rate in the finite blocklength regime[J]. IEEE Transactions on Information Theory, 2010, 56(5): 2307–2359. doi: 10.1109/TIT.2010.2043769.
[21]	HE Shiwen, AN Zhenyu, ZHU Jianyue, et al. Beamforming design for multiuser uRLLC with finite blocklength transmission[J]. IEEE Transactions on Wireless Communications, 2021, 20(12): 8096–8109. doi: 10.1109/TWC.2021.3090197.
[22]	SUTTON G J, ZENG Jie, LIU Renping, et al. Enabling technologies for ultra-reliable and low latency communications: From PHY and MAC layer perspectives[J]. IEEE Communications Surveys & Tutorials, 2019, 21(3): 2488–2524. doi: 10.1109/COMST.2019.2897800.
[23]	MAIGNAN A and SCOTT T C. Fleshing out the generalized Lambert W function[J]. ACM Communications in Computer Algebra, 2016, 50(2): 45–60. doi: 10.1145/2992274.2992275.
[24]	LUO Zhiquan, MA W K, SO A M C, et al. Semidefinite relaxation of quadratic optimization problems[J]. IEEE Signal Processing Magazine, 2010, 27(3): 20–34. doi: 10.1109/MSP.2010.936019.
[25]	GRIFFIN J D and DURGIN G D. Complete link budgets for backscatter-radio and RFID systems[J]. IEEE Antennas and Propagation Magazine, 2009, 51(2): 11–25. doi: 10.1109/MAP.2009.5162013.
