可調制光學IRS輔助無蜂窩VLC網絡的接入資源管理算法

賈林瓊; 馮事成; 樂淑娟; 施唯; 束鋒

doi:10.11999/JEIT240710

可調制光學IRS輔助無蜂窩VLC網絡的接入資源管理算法

doi: 10.11999/JEIT240710 cstr: 32379.14.JEIT240710

1.
南京理工大學電子工程與光電技術學院南京 210094
2.
海南大學信息與通信工程學院術學院 ?？? 570228

基金項目: 國家自然科學基金(62301257)，江蘇省基礎研究計劃(自然科學基金)(BK20200488)

詳細信息

作者簡介:
賈林瓊：女，博士，副教授，研究方向為可見光通信、智能反射面和人工智能

馮事成：男，研究方向為可見光通信和人工智能

樂淑娟：女，研究方向為可見光通信

施唯：女，研究方向為可見光通信

束鋒：男，博士，教授，研究方向為無線通信、物理層安全和新一代智慧網絡等

通訊作者:
賈林瓊　jialinqiong@njust.edu.cn

中圖分類號: TN926
計量
- 文章訪問數: 251
- HTML全文瀏覽量: 93
- PDF下載量: 42
- 被引次數: 0
出版歷程
- 收稿日期: 2024-08-15
- 修回日期: 2024-12-27
- 網絡出版日期: 2025-01-09
- 刊出日期: 2025-02-28

Joint Resource Management for Tunable Optical IRS-aided Cell-Free VLC Networks

1.
School of Electronic Engineering and Optoelectronic Technology, Nanjing University of Science and Technology, Nanjing 210094, China
2.
School of Information and Communication Engineering, Hainan University, Haikou 570228, China

Funds: The National Natural Science Foundation of China (62301257), The Natural Science Foundation of Jiangsu Province (BK20200488)

摘要

摘要: 該文研究了一種基于新型光學可調制智能超表面(IRS)輔助的無蜂窩可見光通信(VLC)網絡接入方案，其中IRS可以為收發端提供額外的反射信道，也可以利用反射系數可調制的特性，直接為網絡用戶提供無線接入。該文建立了可調制IRS輔助的無蜂窩VLC接入網絡的系統模型，推導了網絡吞吐量與發光二極管(LED)照明通信設備的工作模式、IRS的工作模式和用戶接入關聯之間的關系，并提出以最大化網絡吞吐量為目標的接入優化問題。該優化問題分兩步求解：(1) 當調制模式的LED數和調制模式的IRS數給定時，基于深度確定性策略梯度(DDPG)的深度強化學習(DRL)算法可以得到最優的接入點工作模式和用戶接入關聯策略；(2) 遍歷可能的調制LED數和調制IRS元件數即可得到優化問題的解。仿真結果表明，聯合優化接入點的工作模式和用戶接入關聯矩陣可以提高IRS輔助無蜂窩VLC網絡的吞吐量。
- 可見光通信 /
- 光學智能反射面 /
- 接入資源管理 /
- 最大化吞吐量 /
- DDPG算法
Abstract: Objective Visible Light Communication (VLC) is emerging as a key technology for future communication systems, offering advantages such as abundant and license-free spectrum, immunity to electromagnetic interference, and low-cost front-end devices. Light Emitting Diodes (LEDs) serve a dual purpose, providing both communication and illumination in indoor environments. However, VLC links are vulnerable, as the interruption of the Line of Sight (LoS) can disrupt communication. The Optical Intelligent Reconfigurable Surface (IRS) has been proposed to enhance communication performance and robustness by reconfiguring optical channels. Two main types of optical IRS materials, mirror-based and meta-surface-based, are commonly used. Mirror-based IRS units introduce additional Non-LoS (NLoS) links with constant reflectance.A cell-free VLC network with the assistance of a newly proposed tunable IRS is proposed and fully investigated. The reflectance of the optical IRS can be dynamically adjusted, allowing it to function as a transmitter by modulating signals on the reflectance with stable incident light. In this system, at least one LED must operate in illumination mode to emit light with constant intensity when any IRS unit is in modulation mode. The IRS can also function in reflection mode to provide additional reflective links, enhancing signal strength. The tunable IRS increases the number of Access Points (APs), enabling ultra-dense VLC networks that significantly improve throughput and spectral efficiency. The system model for a tunable IRS-assisted cell-free VLC network is derived, and the channel gain is calculated using the Lambertian model. The transmission rate for each user is determined by the work mode of the APs and the IRS’s association with the LEDs and users, represented by binary variables. The primary objective of this study is to maximize the total throughput of the IRS-aided VLC network. Methods An optimization problem is formulated to maximize network throughput by jointly optimizing the work mode of the LEDs and IRS units, along with user-IRS associations. Given the non-convex nature of this integer optimization problem, it is decomposed into two sub-problems. (1) Problem P2: With fixed numbers of LEDs and IRS units in modulation mode, a Deep Deterministic Policy Gradient (DDPG)-based Deep Reinforcement Learning (DRL) algorithm is applied to optimize the work mode of each AP and the user-AP associations. The binary variables are relaxed to continuous values in the range [0,1]. The optimization problem is modeled as a Markov Decision Process (MDP), where the state corresponds to the channel gains, the action represents the optimization variables, and the reward is the network throughput. To ensure convergence, the reward is adjusted to reflect the negative of any unsatisfied constraints, and the noise in the DDPG model is dynamically modeled using two random variables. (2) Problem P1: The optimization problem is then solved by considering all possible combinations of the number of LEDs and IRS units in modulation mode. Results and Discussions Simulations for the indoor tunable IRS-aided system are performed using Python with PyTorch. The simulation parameters for the indoor scenario and the neural network configurations in the DDPG algorithm are shown (Table 1, Table 2), respectively. The results demonstrate the following: (1) The convergence and final reward of the modified DDPG algorithm (denoted as DDPG-O) are compared with the unmodified version (denoted as DDPG-N) in solving Problem P2 (Fig. 4). The results show that the modified DDPG algorithm converges efficiently and achieves an access and association policy that maximizes network throughput. (2) The maximized throughput for various numbers of LEDs in modulation mode, along with varying optical power, is presented when solving Problem P1 (Fig. 5). It is observed that the policy with one lighting LED achieves the maximum throughput with appropriate IRS units in modulation mode. (3) The relationship between maximized throughput and the number of IRS units is analyzed in (Fig. 6). The total throughput increases as the number of IRS units grows, although the increase is not linear. (4) Simulations with the same number of users and LEDs are also considered (Fig. 7). It is observed that the total network throughput with and without IRS APs is nearly identical when the number of users does not exceed the number of LEDs. Thus, the VLC network benefits more when the number of users exceeds the number of LEDs. Conclusions A tunable IRS-assisted cell-free VLC network has been proposed, where IRS units either operate in reflection mode to provide additional NLoS channels or in modulation mode to enable wireless access for users. The channel and transmission models are developed, and an optimization problem is formulated to jointly select the working mode of APs and user associations with the objective of maximizing network throughput. A modified DDPG algorithm is applied to solve for the optimal policy. The optimization problem is further tackled by exploring all possible combinations of modulating LEDs and IRS units. Simulation results verify the effectiveness of the proposed algorithm, showing that the network throughput can be significantly improved by incorporating IRS APs, particularly when the number of users is large.
- Visible Light Communication (VLC) /
- Optical intelligent reconfigurable surface /
- Resource management /
- Throughput maximization /
- Deep Deterministic Policy Gradient (DDPG) algorithm.

HTML全文

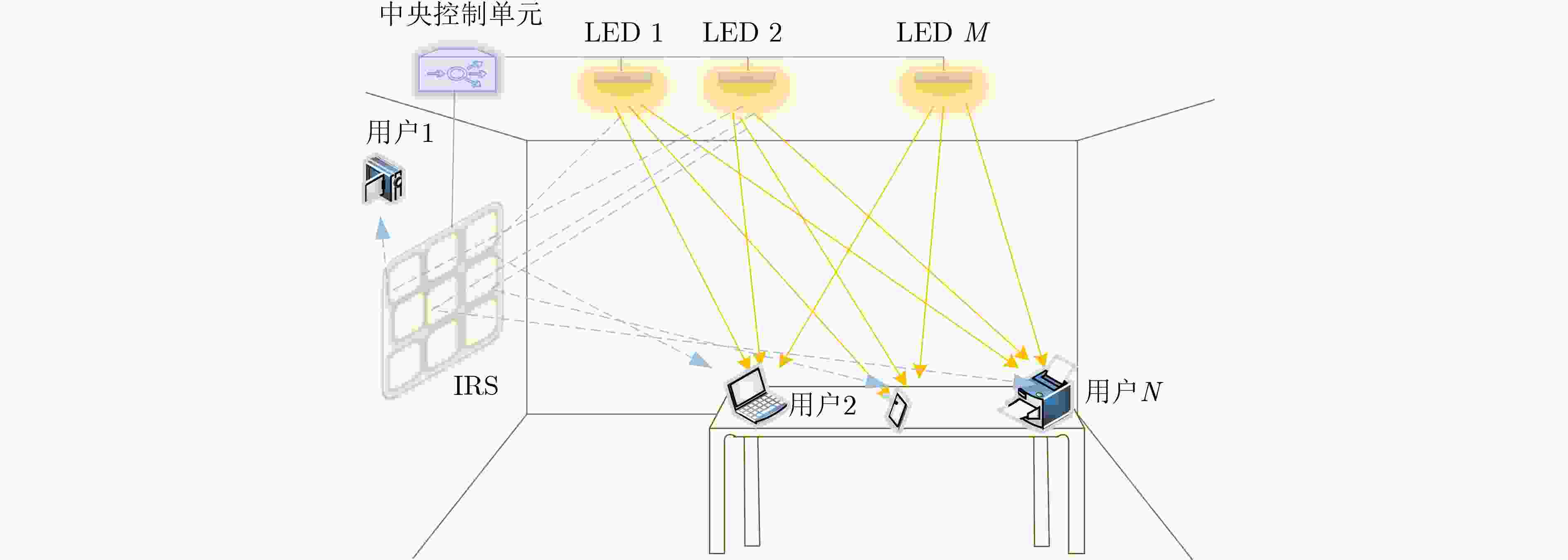

圖 1 可調制IRS輔助無蜂窩VLC 網絡示意圖

下載: 全尺寸圖片幻燈片

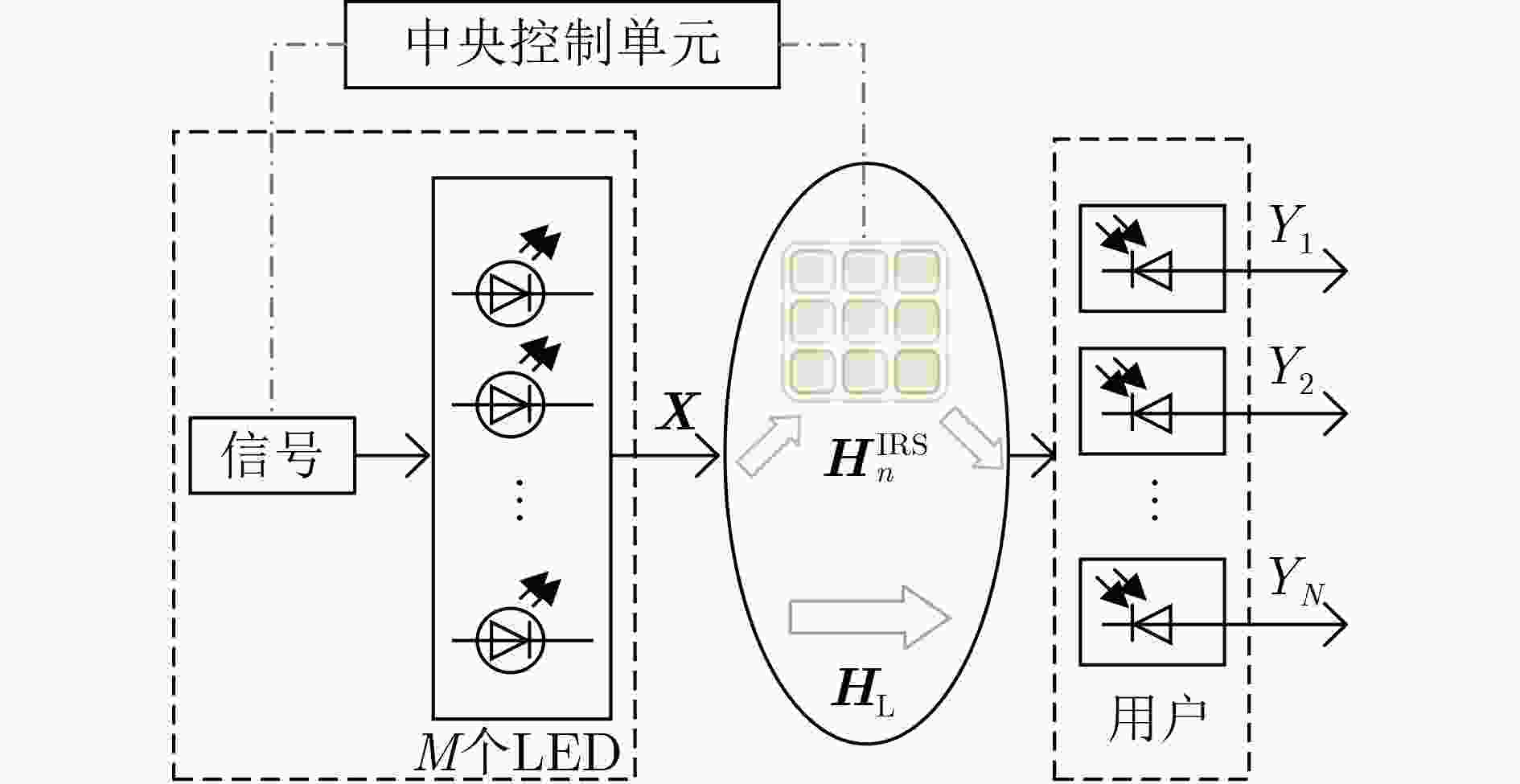

圖 2 可調制IRS輔助無蜂窩VLC 網絡系統模型圖

下載: 全尺寸圖片幻燈片

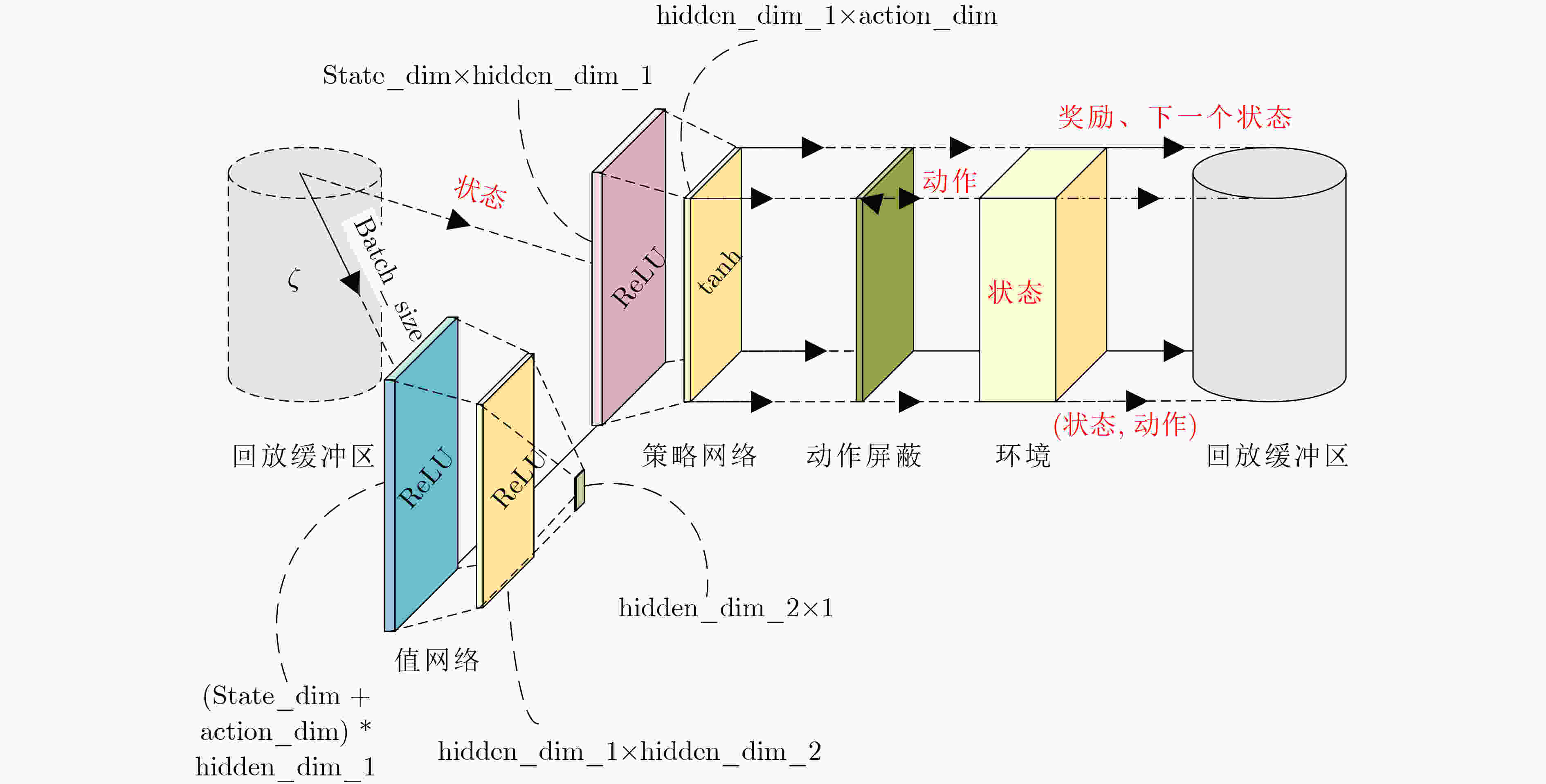

圖 3 基于DDPG的接入資源分配算法示意圖

下載: 全尺寸圖片幻燈片

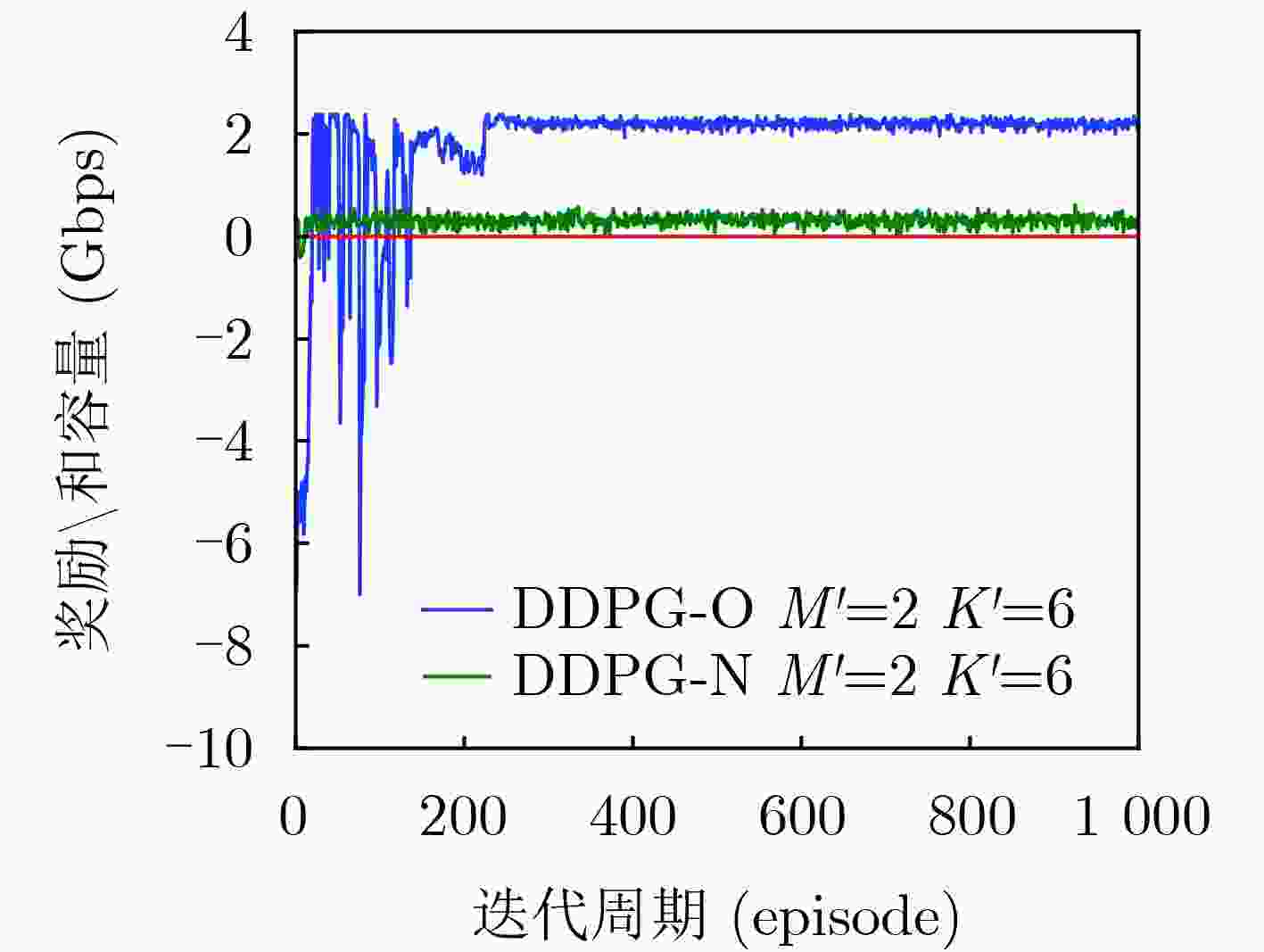

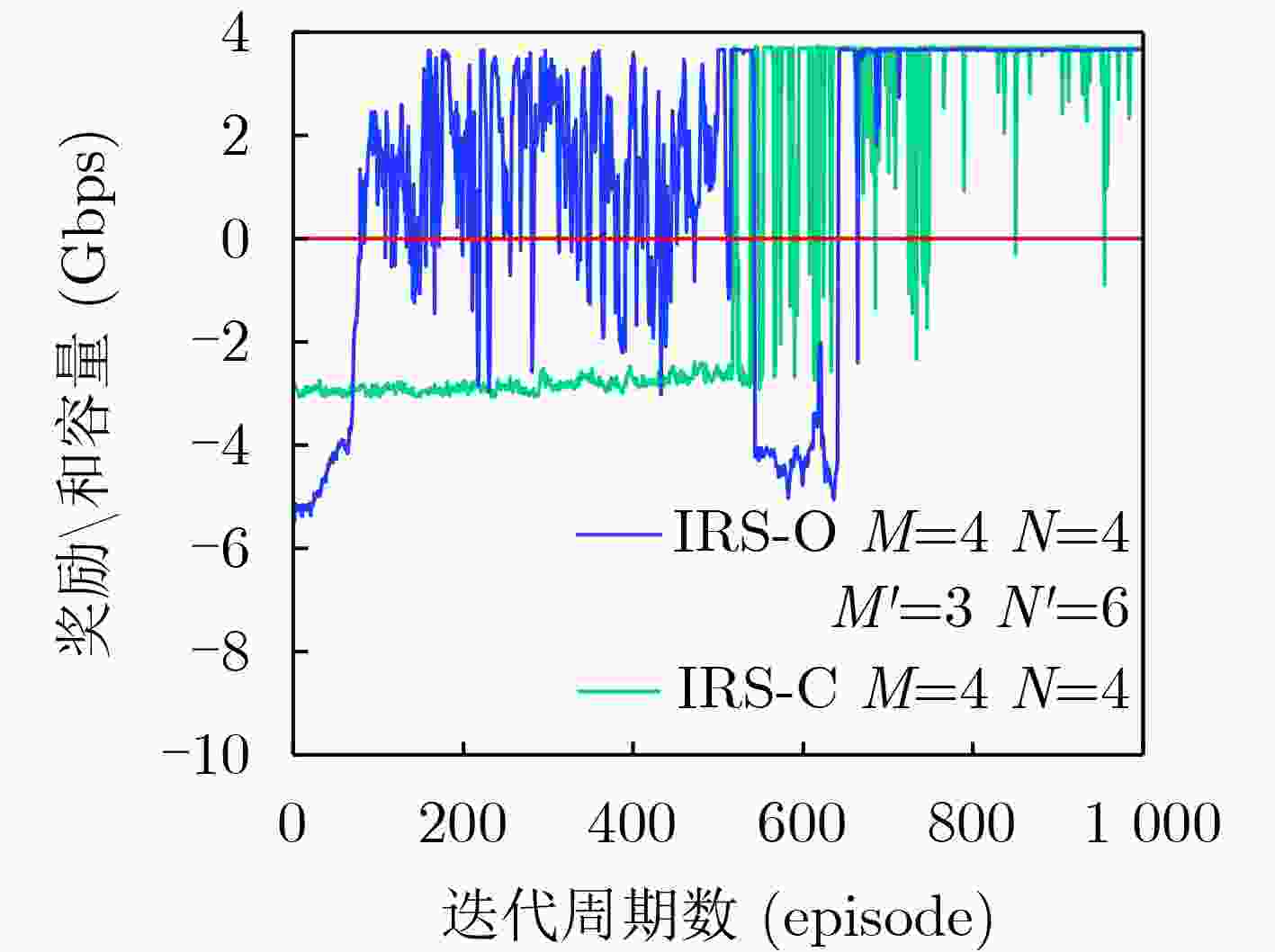

圖 4 DDPG-O和DDPG-N算法的收斂圖

下載: 全尺寸圖片幻燈片

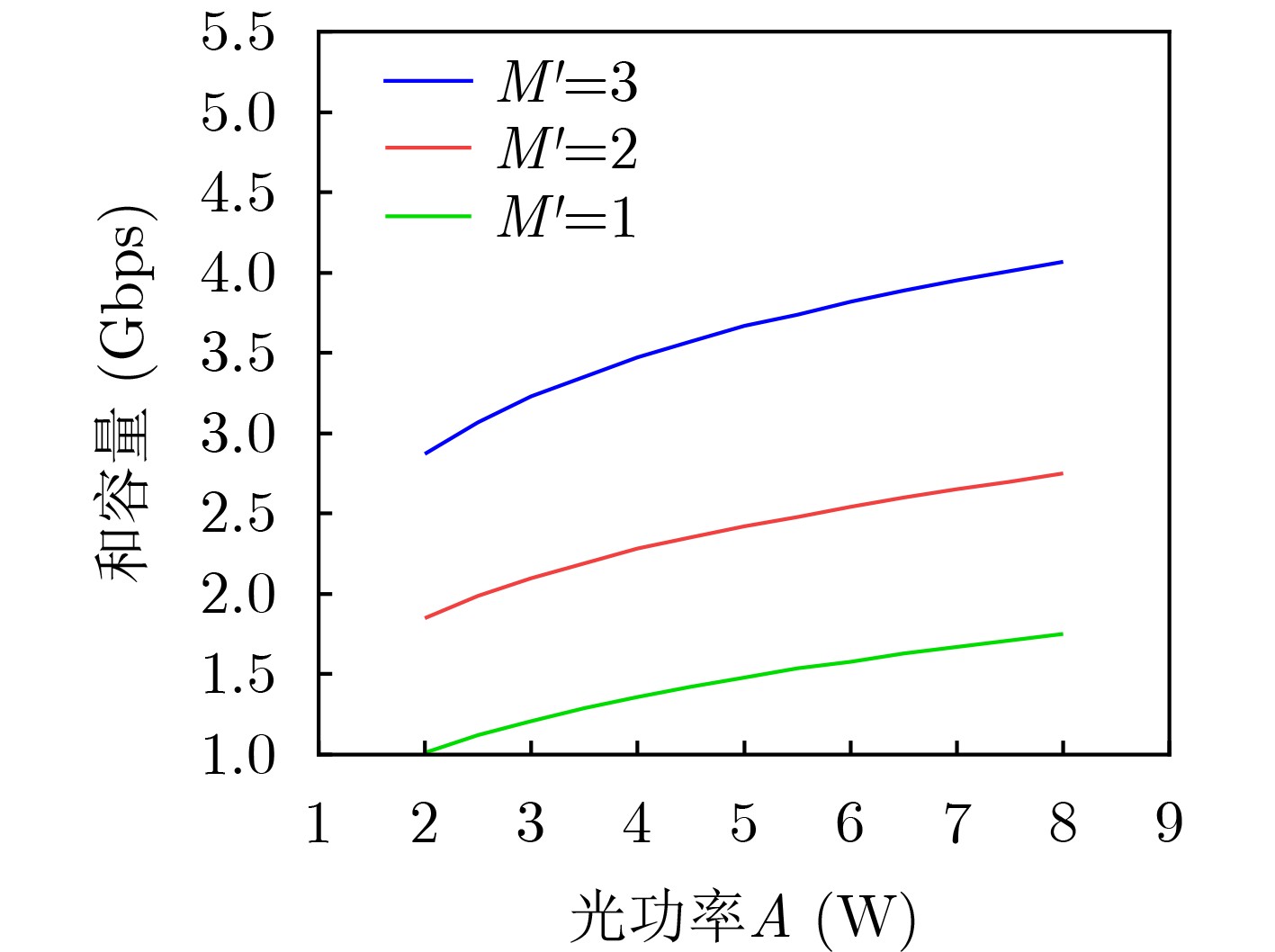

圖 5 不同的調制LED數對應的最大吞吐量

下載: 全尺寸圖片幻燈片

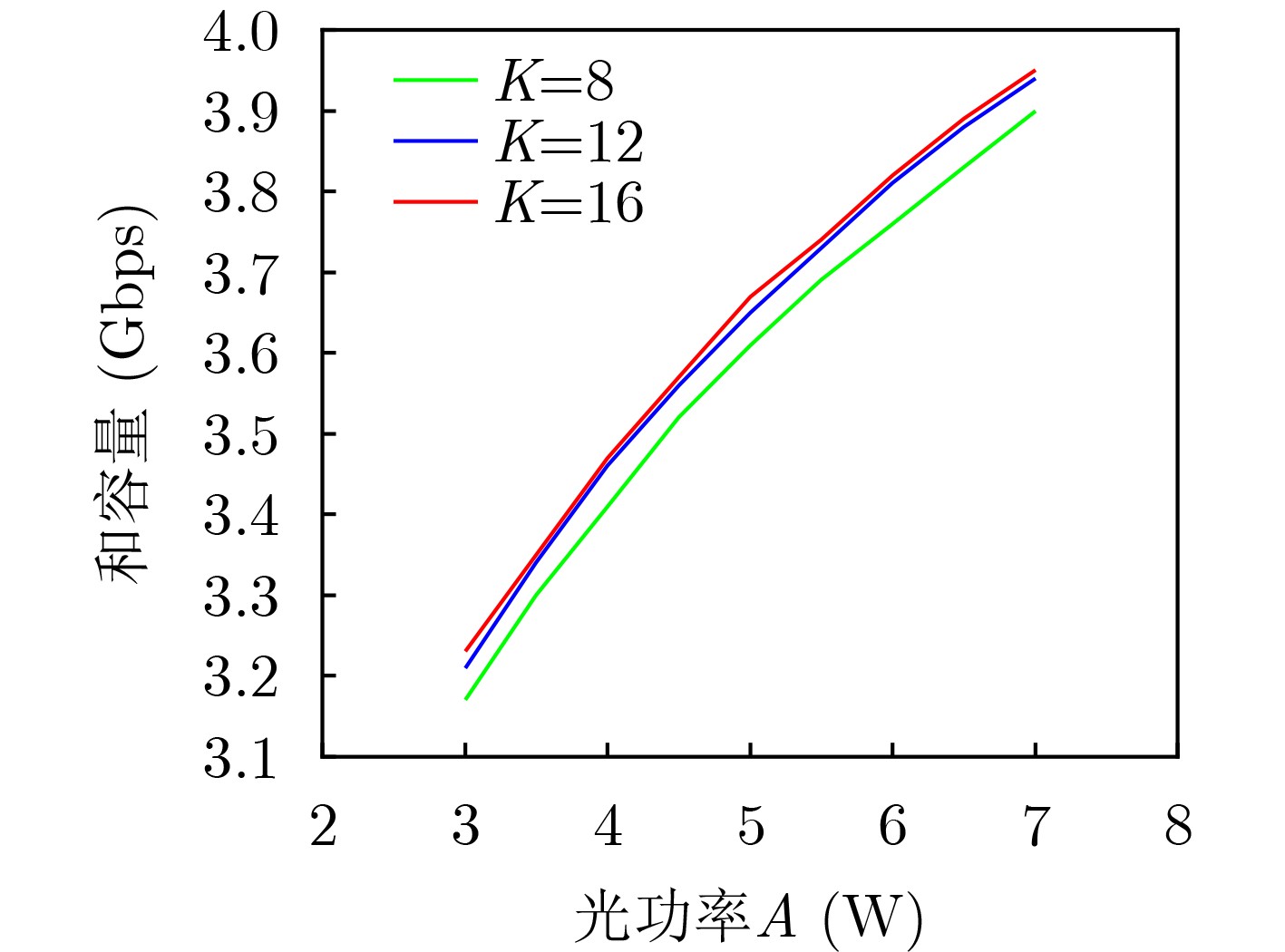

圖 6 不同IRS元件數對應的網絡最大吞吐量

下載: 全尺寸圖片幻燈片

圖 7 接入方案分析

下載: 全尺寸圖片幻燈片

1 DDPG-O：基于DRL的可調制IRS輔助無蜂窩VLC網絡接入?yún)?shù)優化

1. 初始化：Actor網絡、Critic網絡、target-Actor網絡、target- 　Critic網絡的參數和梯度
初始輸入：狀態${s_0}$、用于調制的LED數目$ M' $、用于反射的　IRS數目$K'$
輸出：系統用戶的和速率及對應的最優策略$\{ {\boldsymbol{L}},{\boldsymbol{I}},{\boldsymbol{G}},{\boldsymbol{F}}\} $
2. For episode$ \in $episodes do：
3. 　從Replay Buffer中隨機抽取初始狀態${\boldsymbol{{s}}_t}$，若Replay 　　　Buffer未準備好則采用${{\boldsymbol{s}}_0}$；初始化set=0；
4. 　For t $ \in $ Max steps do：
5. 　　根據當前的狀態${{\boldsymbol{s}}_t}$，Actor網絡基于當前的策略　　　　$\pi ({{\boldsymbol{s}}_t},{{\boldsymbol{a}}_t})$輸出動作${{\boldsymbol{a}}_t}$
6. 　　if set < 0：
選擇高斯噪聲${{\boldsymbol{N}}_1}(0,\sigma _1^2)$，與動作${{\boldsymbol{a}}_t}$疊加　　　　　${{\boldsymbol{a}}_t}^\prime = {{\boldsymbol{a}}_t} + {{\boldsymbol{N}}_1}$
else：
選擇高斯噪聲${{\boldsymbol{N}}_2}(0,\sigma _2^2)$，與動作${{\boldsymbol{a}}_t}$疊加　　　　　${{\boldsymbol{a}}_t}^\prime = {{\boldsymbol{a}}_t} + {{\boldsymbol{N}}_2}$
7.　　根據動作${{\boldsymbol{a}}_t}^\prime $，與環境交互，獲得獎勵${r_t}$、下一時刻狀態 　　　　${{\boldsymbol{s}}_{t + 1}}$
8.　　if ${r_t}$< 0，以概率$\varsigma $將其儲存到Replay Buffer；else 直接存　　　　入Replay Buffer
9.　　若Replay Buffer準備好，抽取Batch size個元組　　　　$({{\boldsymbol{s}}_t},{{\boldsymbol{a}}_t},{{\boldsymbol{s}}_{t + 1}},{r_t})$使智能體進行學習，通過梯度反向傳播　　　　更新Actor網絡和Critic網絡的參數；若未準備好則只存儲　　　　本次獲得的元組$({{\boldsymbol{s}}_t},{{\boldsymbol{a}}_t},{{\boldsymbol{s}}_{t + 1}},{r_t})$。
10.　軟更新target-Actor網絡參數、target-Critic網絡的參數
11.　計算近$\eta $次與環境交互獲得的獎勵$\bar r$，${\mathrm{set}} = \bar r$
12.　 ${{\boldsymbol{s}}_t} = {{\boldsymbol{s}}_{t + 1}}$
13. end for
14. end for
