智能反射面輔助短包通信中時效與能效間的折衷

張洋譯; 管新榮; 王權; 鄧誠; 朱澤源; 蔡躍明

doi:10.11999/JEIT240666

智能反射面輔助短包通信中時效與能效間的折衷

doi: 10.11999/JEIT240666 cstr: 32379.14.JEIT240666

1.
陸軍工程大學通信工程學院南京 210007
2.
中國人民解放軍32319部隊 烏魯木齊 830002
3.
中國人民解放軍32579部隊 桂林 541000

基金項目: 國家自然科學基金(62171461, 62171464)

詳細信息

作者簡介:
張洋譯：男，博士生，研究方向?yàn)橹悄艹砻婧投贪ㄐ?/p>
管新榮：男，博士，副教授，研究方向?yàn)橹悄艹砻婧投贪ㄐ?/p>
王權：男，碩士，助理工程師，研究方向?yàn)橐苿?dòng)通信、協同通信等

鄧誠：男，碩士，研究方向?yàn)橐苿?dòng)通信、協同通信等

朱澤源：男，博士生，研究方向?yàn)檎J(rèn)知無線電和短包通信

蔡躍明：男，博士，教授，研究方向?yàn)橐苿?dòng)通信、協同通信等

通訊作者:
管新榮　guanxr@aliyun.com

中圖分類號: TN926
計量
- 文章訪問數: 288
- HTML全文瀏覽量: 86
- PDF下載量: 95
- 被引次數: 0
出版歷程
- 收稿日期: 2024-07-29
- 修回日期: 2024-11-28
- 網絡出版日期: 2024-11-30
- 刊出日期: 2025-02-28

Tradeoff between Age of Information and Energy Efficiency for Intelligent Reflecting Surface Assisted Short Packet Communications

1.
College of Communication Engineering, Army Engineering University of PLA, Nanjing 210007, China
2.
Unit 32319 of PLA, Urumqi 830002, China
3.
Unit 32579 of PLA, Guilin 541000, China

Funds: The National Natural Science Foundation of China (62171461, 62171464)

摘要

摘要: 在監控物聯網中，一些感知設備需要在能耗受限條件下及時地將采集信息回傳給接入節點(AP)，信息年齡(AoI)和能量效率(EE)對系統都很重要。該文研究了多設備監控物聯網中時效與能效之間的折衷問題，其中感知設備在智能反射面(IRS)輔助下通過短包傳輸監控信息給AP。為了避免多個感知設備占用同一資源塊導致包的碰撞，該文提出了一個接入控制協議，并推導了平均AoI和EE的閉式表達式。在此基礎上，引入了平均AoI和EE之比這個指標，通過優化傳輸功率來最小化平均AoI和EE之比，以折衷時效性能與能效性能。仿真結果驗證了該文理論分析的正確性，并且表明所提協議能夠?qū)崿F(xiàn)更好的時效和能效性能。此外，所提算法能夠有效找出最優的時效-能效折衷點。
- 信息年齡 /
- 能量效率 /
- 短包通信 /
- 智能反射面
Abstract: Objective: In monitoring Internet of Things (IoT) systems, it is essential for sensor devices to transmit collected data to the Access Point (AP) promptly. The timely transmission of information can be enhanced by increasing transmission power, as higher power levels tend to improve the reliability of data transfer. However, sensor devices typically have limited transmission power, and beyond a certain threshold, increases in power yield diminishing returns in terms of transmission timeliness. Therefore, effectively managing transmission power to balance timeliness and Energy Efficiency (EE) is crucial for sensor devices. This paper investigates the trade-off between the Age of Information (AoI) and EE in multi-device monitoring systems, where sensor devices communicate monitoring data to the AP using short packets with support from Intelligent Reflective Surface (IRS). To address packet collisions that occur when multiple devices access the same resource block, an access control protocol is developed, and closed-form expressions are derived for both the average AoI and EE. Based on these expressions, the average AoI-EE ratio is introduced as a metric that can be minimized to achieve an optimal balance between AoI and EE through transmission power optimization. Methods: Deriving the closed-form expression for the average AoI is challenging due to two factors. Firstly, obtaining the exact distribution of the composite channel gain is difficult. Secondly, in short-packet communications, the packet error rate expression involves a complementary cumulative distribution function with a complex structure, complicating the averaging process. However, the Moment Matching (MM) technique can approximate the probability distribution of the composite channel gain as a gamma distribution. To address the second challenge, a linear function is used to approximate the packet error rate, yielding an approximate expression for the average packet error rate. Additionally, to examine the relationship between the ratio of average AoI and EE with transmission power, the second derivative of this ratio is calculated and analyzed. Finally, the optimal transmission power is determined using the binary search algorithm. Results and Discussions: Firstly, the paper examines the division of a time slot into varying numbers of resource blocks and analyzes their AoI performances. The findings indicate that AoI performance does not increase monotonically with an increase in the number of resource blocks. Specifically, while a greater number of resource blocks enhances the probability of device access, it concurrently reduces the size of each resource block, leading to an increase in packet error rates during information transmission. Therefore, it is essential to strategically plan the number of resource blocks allocated for each time slot. Additionally, the results demonstrate that the AoI performance of the proposed access control scheme exceeds that of traditional random access and periodic sampling schemes. In the random access scheme, devices occupy resource blocks at random, which may lead to multiple devices occupying the same block and resulting in transmission collisions that compromise the reliability of information transmission. Conversely, while devices in the periodic sampling scheme can reliably access resource blocks within each cycle, one cycle includes multiple time slots, thus necessitating a prolonged wait for information transmission. Moreover, it is noted that at lower information transmission power levels, the periodic sampling scheme can achieve higher EE. This is attributed to the low transmission power resulting in substantially higher packet error rates across all schemes; however, the periodic sampling scheme manages to secure larger resource blocks, leading to lower packet error rates and a reduced likelihood of energy waste during signal transmission. As information transmission power increases, the advantages of the periodic sampling scheme begin to diminish, and the EE of the proposed access control scheme ultimately exceeds that of the periodic sampling scheme. Finally, the paper investigates the relationship between the ratio of average AoI and EE with the information transmission power. The analysis reveals that this ratio is a convex function that initially decreases and subsequently increases with rising transmission power, indicating the existence of an optimal power level that minimizes the ratio. Conclusions: This study examines the trade off between timeliness and EE in IRS-assisted short-packet communication systems. An access control protocol is proposed to mitigate packet collisions, and both timeliness and EE are analyzed. The ratio of average AoI to EE is introduced as a metric to balance AoI and EE, with optimization of transmission power shown to minimize this ratio. Simulation results validate the theoretical analysis and demonstrate that the proposed access control protocol achieves an improved AoI-EE trade off. Future research will focus on optimizing the deployment location of the IRS to further enhance the balance between timeliness and EE.
- Age of Information (AoI) /
- Energy Efficiency (EE) /
- Short packet communications /
- Intelligent Reflecting Surface (IRS)

HTML全文

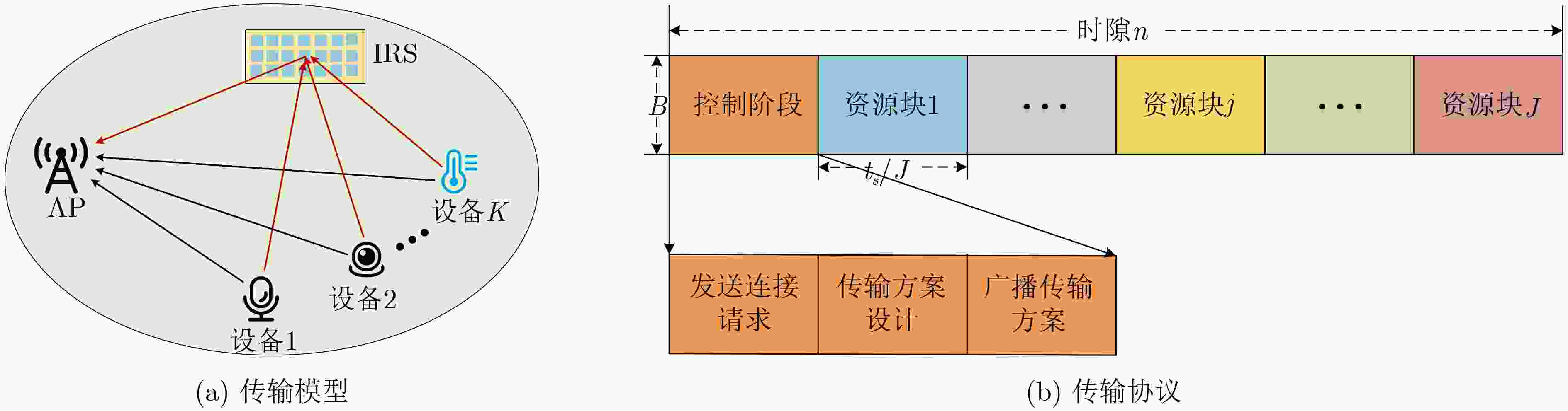

圖 1 IRS輔助短包通信系統

下載: 全尺寸圖片幻燈片

圖 2 AoI更新過程

下載: 全尺寸圖片幻燈片

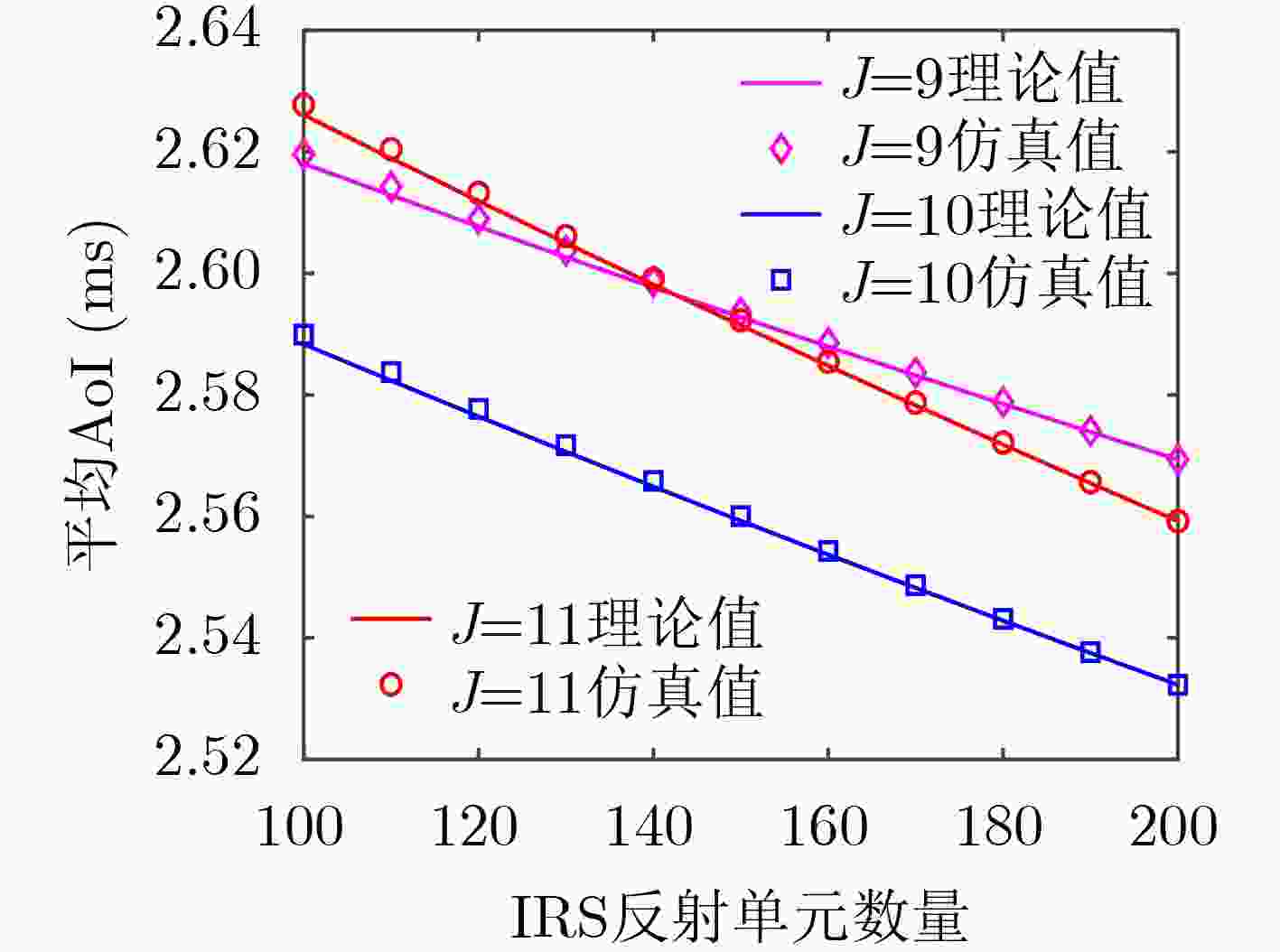

圖 3 平均AoI與IRS反射單元數量的關系

下載: 全尺寸圖片幻燈片

圖 4 平均AoI與信號傳輸功率的關系

下載: 全尺寸圖片幻燈片

圖 5 EE與信號傳輸功率的關系

下載: 全尺寸圖片幻燈片

圖 6 平均AoI與EE之比隨信號傳輸功率的變化關系

下載: 全尺寸圖片幻燈片

1 信號傳輸功率優化算法

初始化：$ {P_{{\text{low}}}} = {\sigma ^2}u/{\left( {{\varPsi } - \sqrt {\varTheta } } \right)^2} $, $ {P_{{\mathrm{up}}}} = {\sigma ^2}u/{\left( {\varPsi - 3\sqrt \varTheta } \right)^2} $
Repeat
If $ {\left. {{\textq7j3ldu95}\lambda /{\textq7j3ldu95}P} \right\|_{P = \left( {{P_{{\text{low}}}} + {P_{{\text{up}}}}} \right)/2}} < 0 $
$ {P_{{\text{low}}}} = \left( {{P_{{\text{low}}}} + {P_{{\text{up}}}}} \right)/2 $
Else
$ {P_{{\text{up}}}} = \left( {{P_{{\text{low}}}} + {P_{{\text{up}}}}} \right)/2 $
Until $ {P_{{\text{up}}}} - {P_{{\text{low}}}} \le \delta $
輸出：最優信號傳輸功率為$ {P^ * } = \left( {{P_{{\text{low}}}} + {P_{{\text{up}}}}} \right)/2 $

下載: 導出CSV
