面向物聯網的云邊端協同計算中任務卸載與資源分配算法研究

施建鋒; 陳忻陽; 李寶龍

doi:10.11999/JEIT240659

面向物聯網的云邊端協同計算中任務卸載與資源分配算法研究

doi: 10.11999/JEIT240659 cstr: 32379.14.JEIT240659

南京信息工程大學電子與信息工程學院南京 214442

基金項目: 國家自然科學基金(62201274, 62201275)，江蘇省自然科學基金(BK20210641)

詳細信息

作者簡介:
施建鋒：男，副教授，研究方向為空天地一體化網絡、用戶為中心網絡、B5G和6G網絡

陳忻陽：男，碩士生，研究方向為物聯網、衛星邊緣計算、資源分配

李寶龍：男，副教授，研究方向為無線光通信、數據管理、物聯網

通訊作者:
施建鋒　jianfeng.shi@nuist.edu.cn

中圖分類號: TN927
計量
- 文章訪問數: 696
- HTML全文瀏覽量: 357
- PDF下載量: 112
- 被引次數: 0
出版歷程
- 收稿日期: 2024-07-26
- 修回日期: 2024-12-10
- 網絡出版日期: 2024-12-17
- 刊出日期: 2025-02-28

Research on Task Offloading and Resource Allocation Algorithms in Cloud-edge-end Collaborative Computing for the Internet of Things

School of Electronic and Information Engineering, Nanjing University of Information Science and Technology, Nanjing 214442, China

Funds: The National Natural Science Foundation of China (62201274, 62201275), The Natural Science Foundation of Jiangsu Province (BK20210641)

摘要

摘要: 為滿足遠郊和災區物聯網(IoT)設備的時延與能耗需求，該文構建了由IoT終端、低地球軌道(LEO)衛星和云計算中心組成的新型動態衛星物聯網模型。在時延、能耗等實際約束條件下，將系統時延與能耗加權和視為系統開銷，構造了最小化系統開銷的任務卸載、功率和計算資源聯合分配問題。針對動態任務到達場景，提出一種模型輔助的自適應深度強化學習(MADRL)算法，實現任務卸載決策、通信資源和計算資源的聯合配置。該算法將問題分為兩部分解決，第1部分通過模型輔助、二分搜索算法和梯度下降法優化了通信資源與計算資源；第2部分通過自適應深度強化學習算法訓練出Q網絡以適應隨機任務的到達，進行卸載決策優化。該算法實現了有效的資源分配和可靠及時的任務卸載決策，且在降低系統開銷方面表現出優異的效果。仿真結果表明，引入衛星的移動性，使得系統開銷降低了41%。引入星間協作技術，使系統開銷降低了22.1%。此外，該文所提算法收斂性能好。與基準算法相比，該算法的系統開銷降低了3%，在不同環境下的性能表現都是最優。
- 云邊端協同計算 /
- 衛星物聯網 /
- 深度強化學習 /
- 任務卸載 /
- 資源分配.
Abstract: Objective With the rapid pace of digital transformation and the smart upgrading of the economy and society, the Internet of Things (IoT) has become a critical element of new infrastructure. Current wide-area IoT networks primarily rely on 5G terrestrial infrastructure. While these networks continue to evolve, challenges persist, particularly in remote or disaster-affected areas. The high cost and vulnerability of base stations hinder deployment and maintenance in these locations. Satellite networks provide seamless coverage, flexibility, and reliability, making them compelling alternatives to terrestrial networks for achieving global connectivity. Satellite-assisted Internet of Things (SIoT) can deliver ubiquitous and reliable connectivity for IoT devices. Typically, IoT devices offload tasks to edge servers or cloud platforms due to their limited power, computing, and caching resources. Mobile Edge Computing (MEC) helps reduce latency by caching content and placing edge servers closer to IoT devices. Low Earth Orbit (LEO) satellites with integrated processing units can also serve as edge computing nodes. Although cloud platforms offer abundant computing resources and a reliable power supply, the long distance between IoT devices and the cloud results in higher communication latency. With the explosive growth of IoT devices and the diversification of application requirements driven by 5G, it is essential to design a collaborative architecture that integrates cloud, edge, and end devices. Recent research has extensively explored MEC-enhanced SIoT systems. However, many studies focus solely on edge or cloud computing, with little emphasis on their integration, satellite mobility, or resource constraints. Furthermore, LEO satellites providing edge services face challenges due to their limited onboard resources and the high mobility of the satellite constellation, complicating resource allocation and task offloading. Single-satellite solutions may not satisfy performance expectations during peak demand. Inter-Satellite Collaboration (ISC) technology, which utilizes visible light communications, can significantly increase system capacity, extend coverage, reduce individual satellite resource consumption, and prolong network operational life. Although some studies address three-tier architectures involving IoT devices, satellites, and clouds, proposing load balancing mechanisms through ISC for optimizing offloading and resource allocation, many rely on static assumptions about network topologies and user associations. In practice, LEO satellites require frequent switching and dynamic adjustments in offloading strategies to maintain service quality due to their high-speed mobility. Therefore, there is a need for a method of task offloading and resource allocation in a dynamic environment that considers satellite mobility and limited resources. To address these research gaps, this paper proposes a dynamic ISC-enhanced cloud-edge-end SIoT network model. By formulating the joint optimization problem of offloading decisions and resource allocation as a Mixed Integer Non-Linear Programming (MINLP) problem, a Model-assisted Adaptive Deep Reinforcement Learning (MADRL) algorithm is developed to achieve minimum system cost in a changing environment. Methods The LEO satellite mobility model and the SIoT network model with ISC are constructed to analyze end-to-end latency and system energy consumption. This evaluation considers three modes: local computing, edge computing, and cloud computing. A joint optimization MINLP problem is formulated, focusing on task offloading and resource allocation to minimize system costs. A MADRL algorithm is introduced, integrating traditional optimization techniques with deep reinforcement learning. The algorithm operates in two parts. The first part optimizes communication and computational resource allocation using a model-assisted binary search algorithm and gradient descent method. The second part trains a Q-network to adapt offloading decisions based on stochastic task arrivals through an adaptive deep reinforcement learning approach. Results and Discussions Simulation experiments were conducted under various dynamic scenarios. The MADRL algorithm exhibits strong convergence properties, as demonstrated in the analysis. Comparisons of different learning rates and exploration decay factors reveal optimal parameter values. Incorporating satellite mobility reduces system costs by 41% compared to static scenarios, enabling dynamic resource allocation and improved efficiency. Integrating ISC reduces system costs by 22.1%. This demonstrates the effectiveness of inter-satellite load balancing in improving resource utilization. Additionally, the MADRL algorithm achieves a 3% reduction in system costs compared to the Deep Q Learning (DQN) algorithm, highlighting its adaptability and efficiency in dynamic environments. System costs decrease as satellite speed increases, with the MADRL algorithm consistently outperforming other methods. Conclusions This paper presents an innovative dynamic SIoT model that integrates IoT devices, LEO satellites, and a cloud computing center. The model addresses the latency and energy consumption issues faced by IoT devices in remote and disaster-stricken areas. The task offloading and resource allocation problem that minimizes system cost is constructed by incorporating ISC techniques to enhance satellite edge performance and by taking satellite mobility into account. A MADRL algorithm that combines traditional optimization with deep reinforcement learning is proposed. This approach effectively optimizes task offloading decisions and resource allocation. Simulation results demonstrate that our model and algorithm significantly reduce system costs. Specifically, the incorporation of satellite mobility and ISC technology leads to cost reductions of 41% and 22.1%, respectively. Compared to benchmark algorithms, the MADRL shows superior performance across various test environments, highlighting its significant application advantages.
- Cloud-edge-end collaborative computing /
- Satellite-assited Internet of Things (SIoT) /
- Deep Reinforcement Learning (DRL) /
- Task offloading /
- Resource allocation.

HTML全文

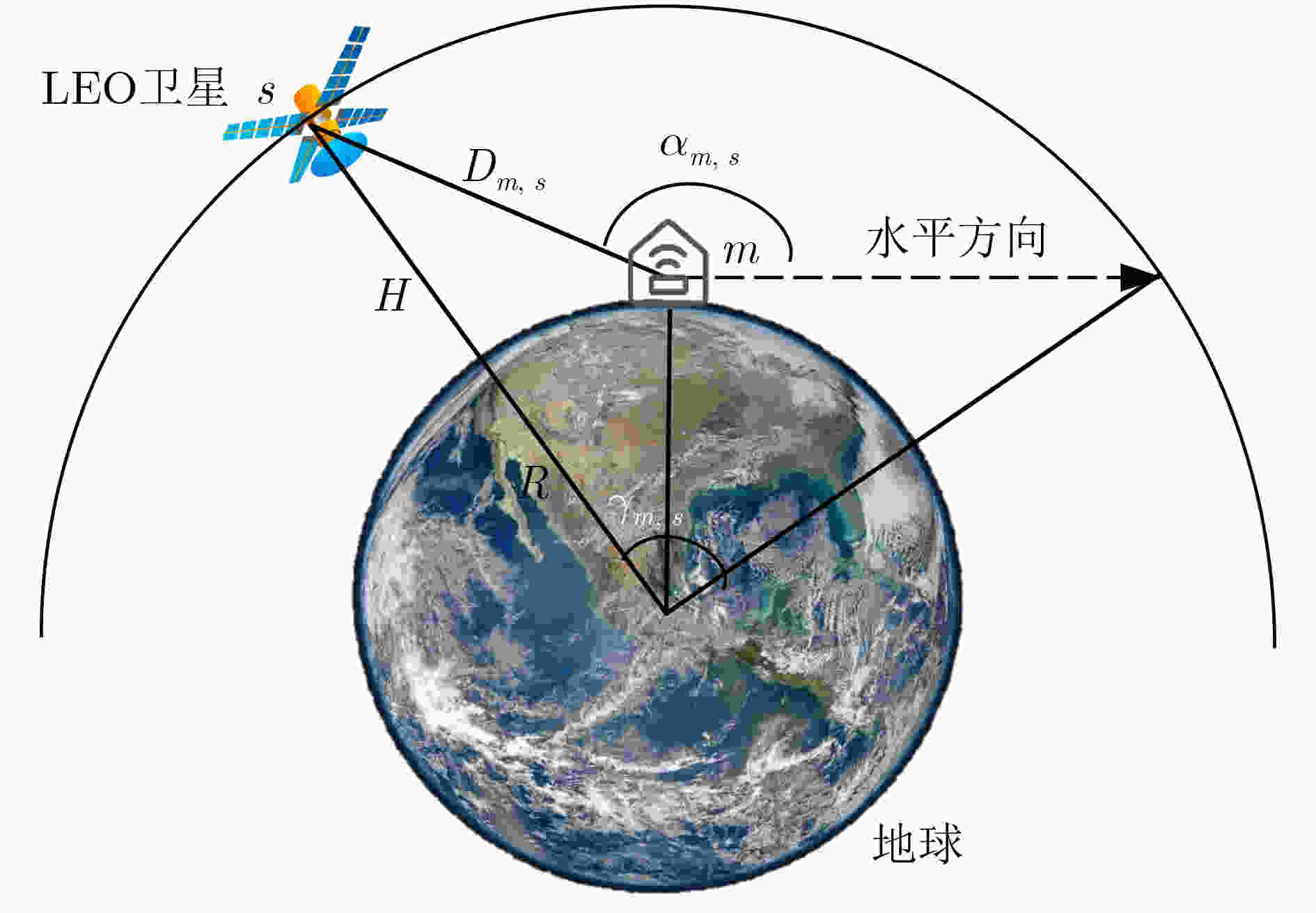

圖 1 LEO衛星s與設備m之間的幾何關系

下載: 全尺寸圖片幻燈片

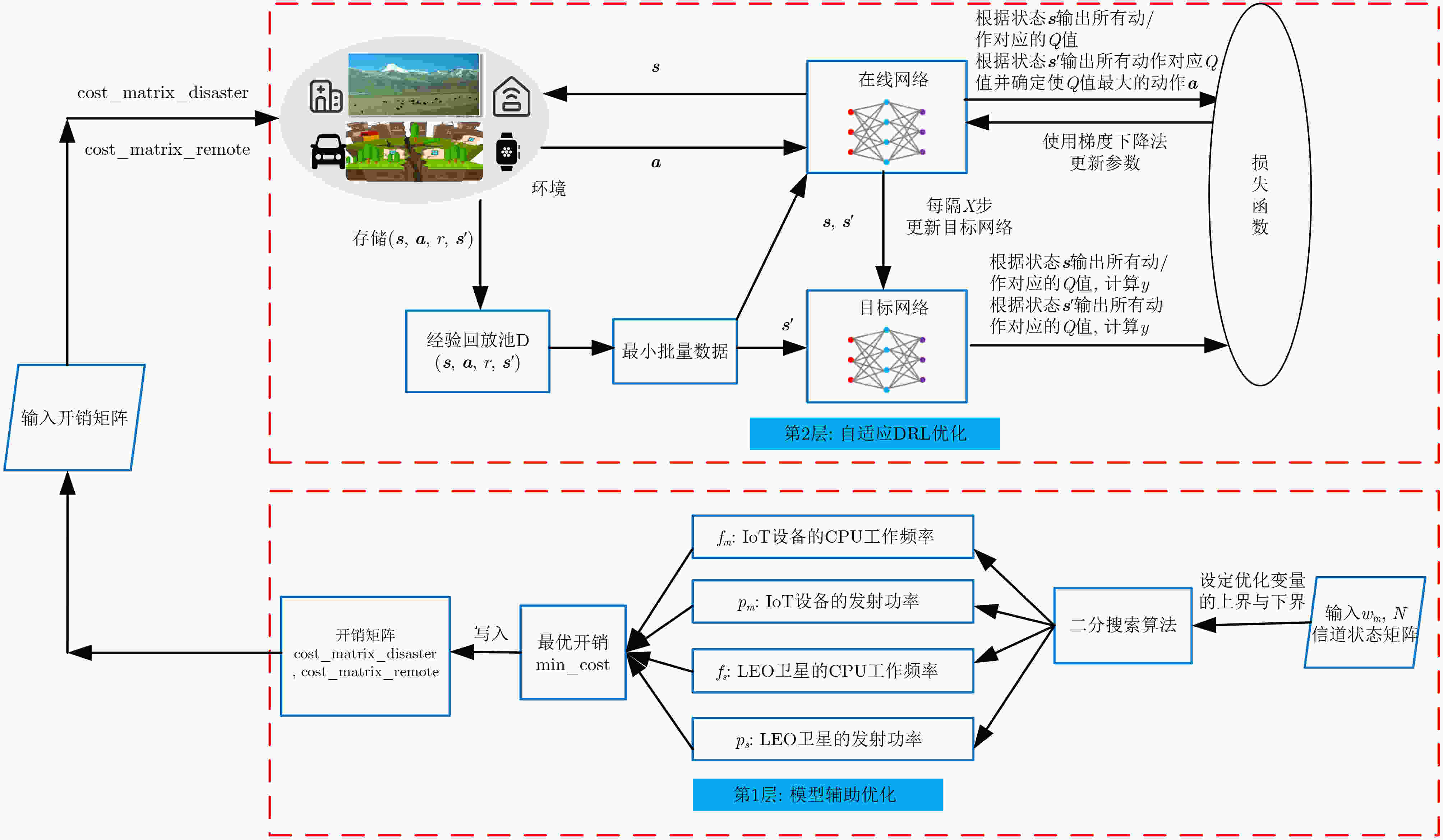

圖 2 MADRL 算法流程圖

下載: 全尺寸圖片幻燈片

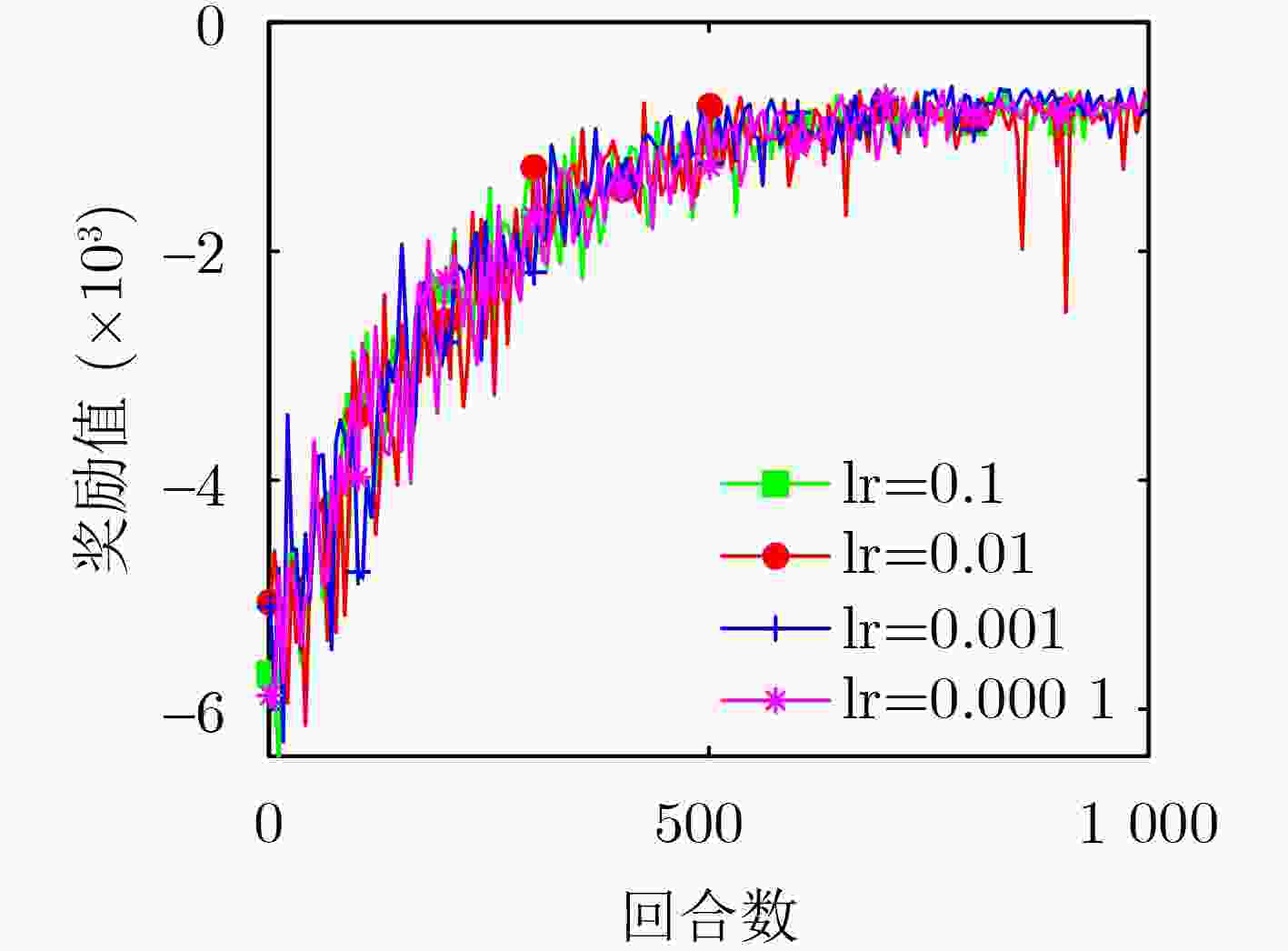

圖 3 不同學習率下的收斂性能

下載: 全尺寸圖片幻燈片

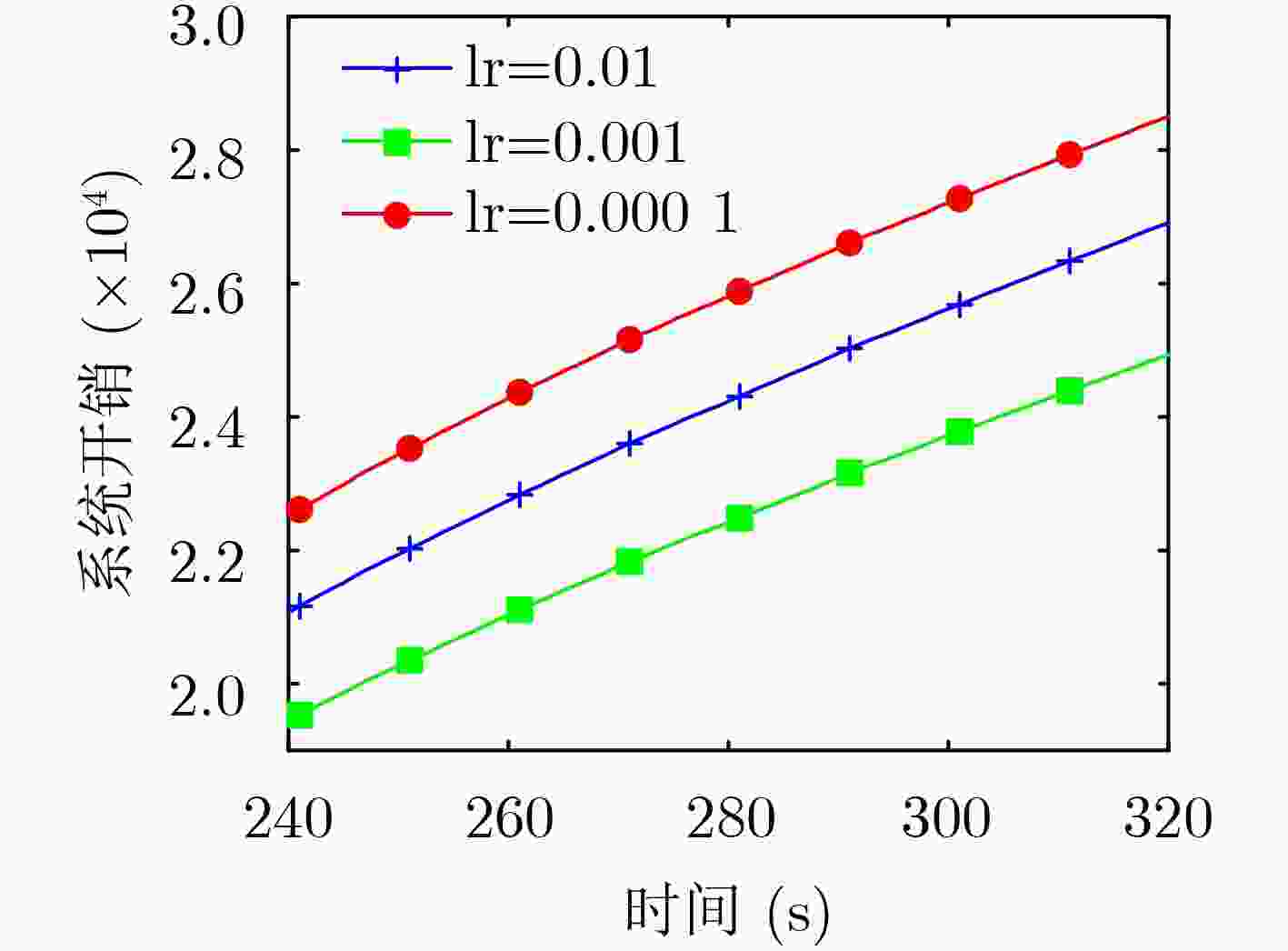

圖 4 不同學習率下的系統累積開銷

下載: 全尺寸圖片幻燈片

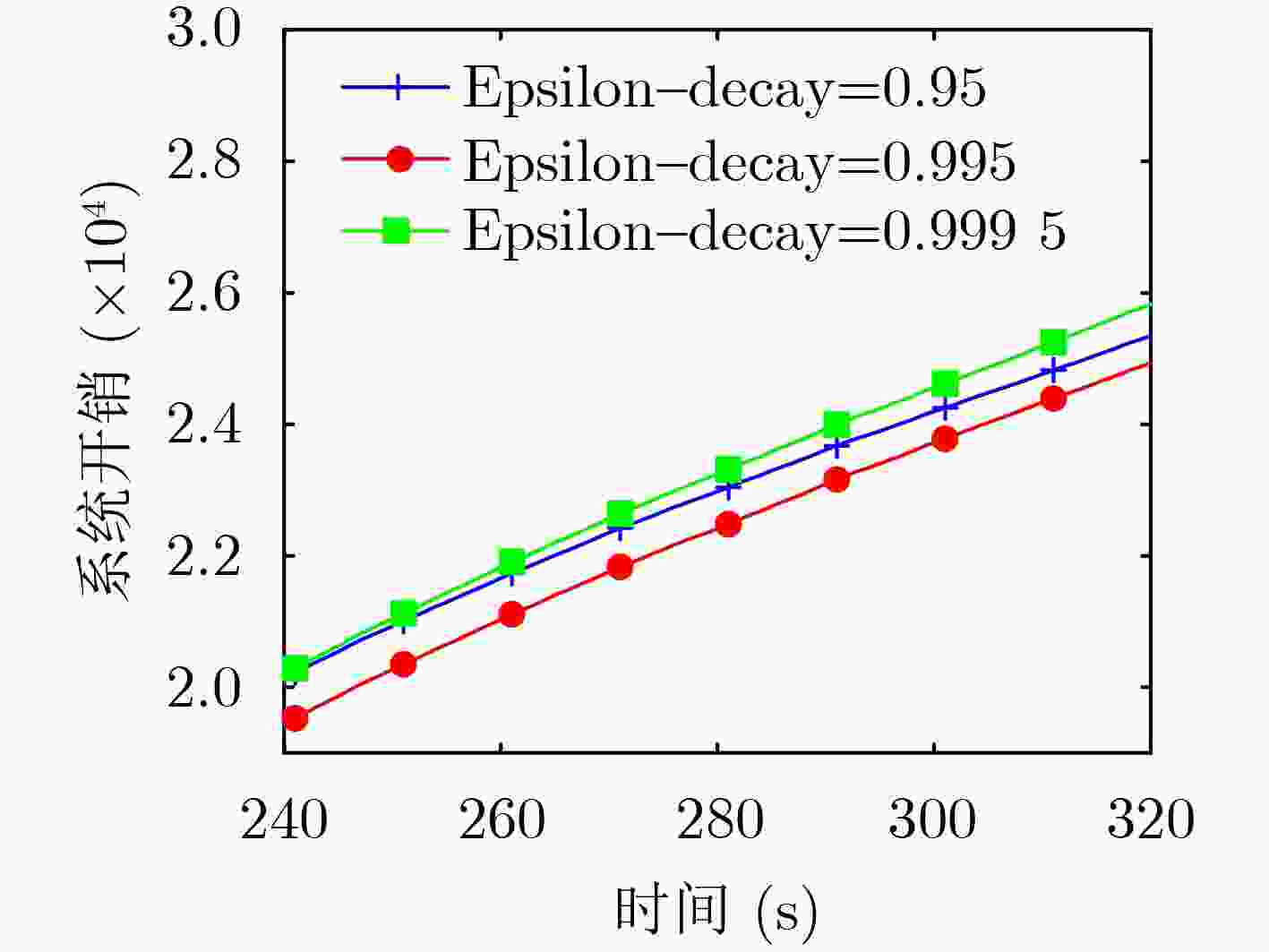

圖 5 不同衰減因子下的系統累積開銷

下載: 全尺寸圖片幻燈片

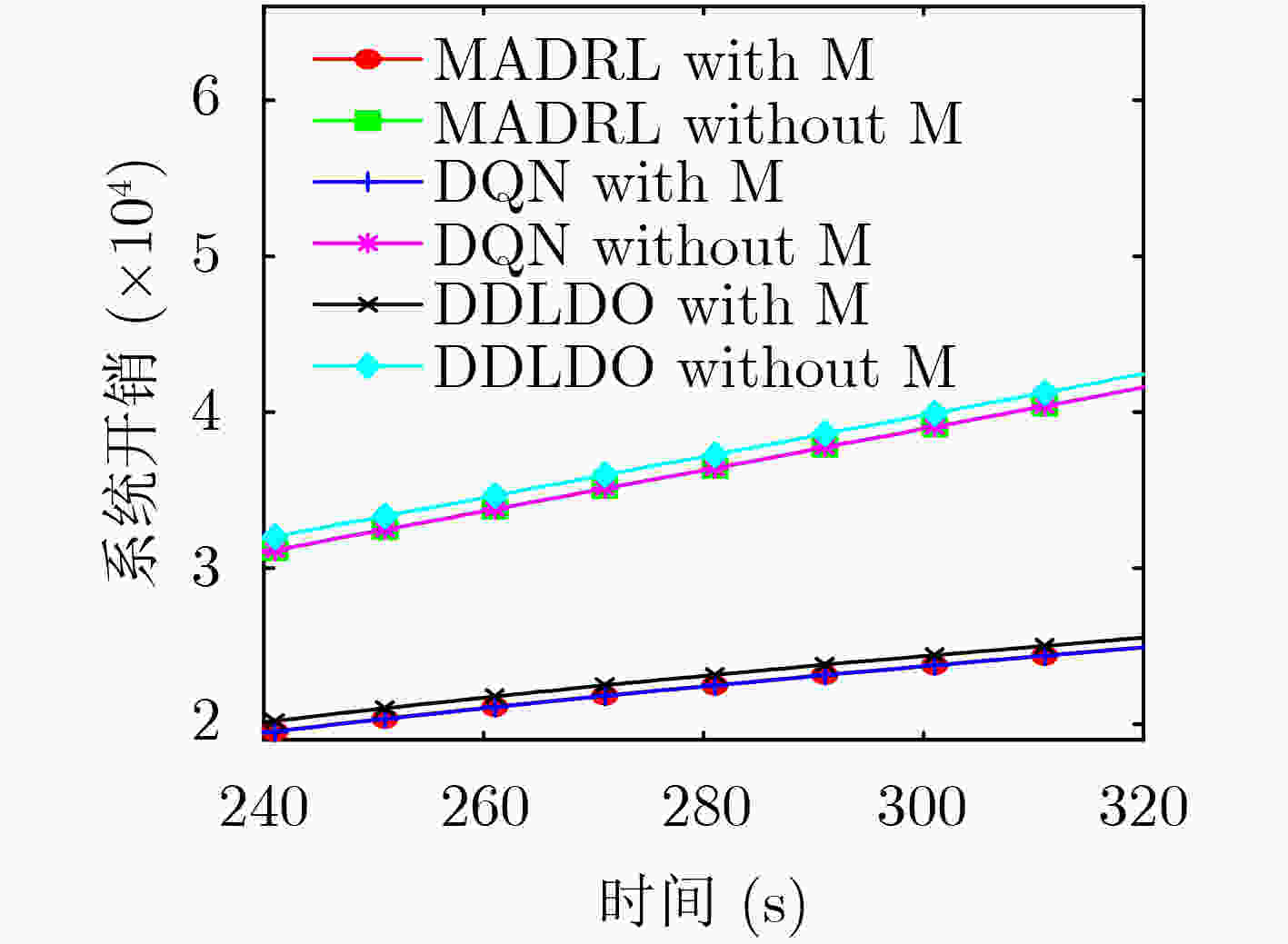

圖 6 衛星移動性對DQN, MADRL算法性能的影響

下載: 全尺寸圖片幻燈片

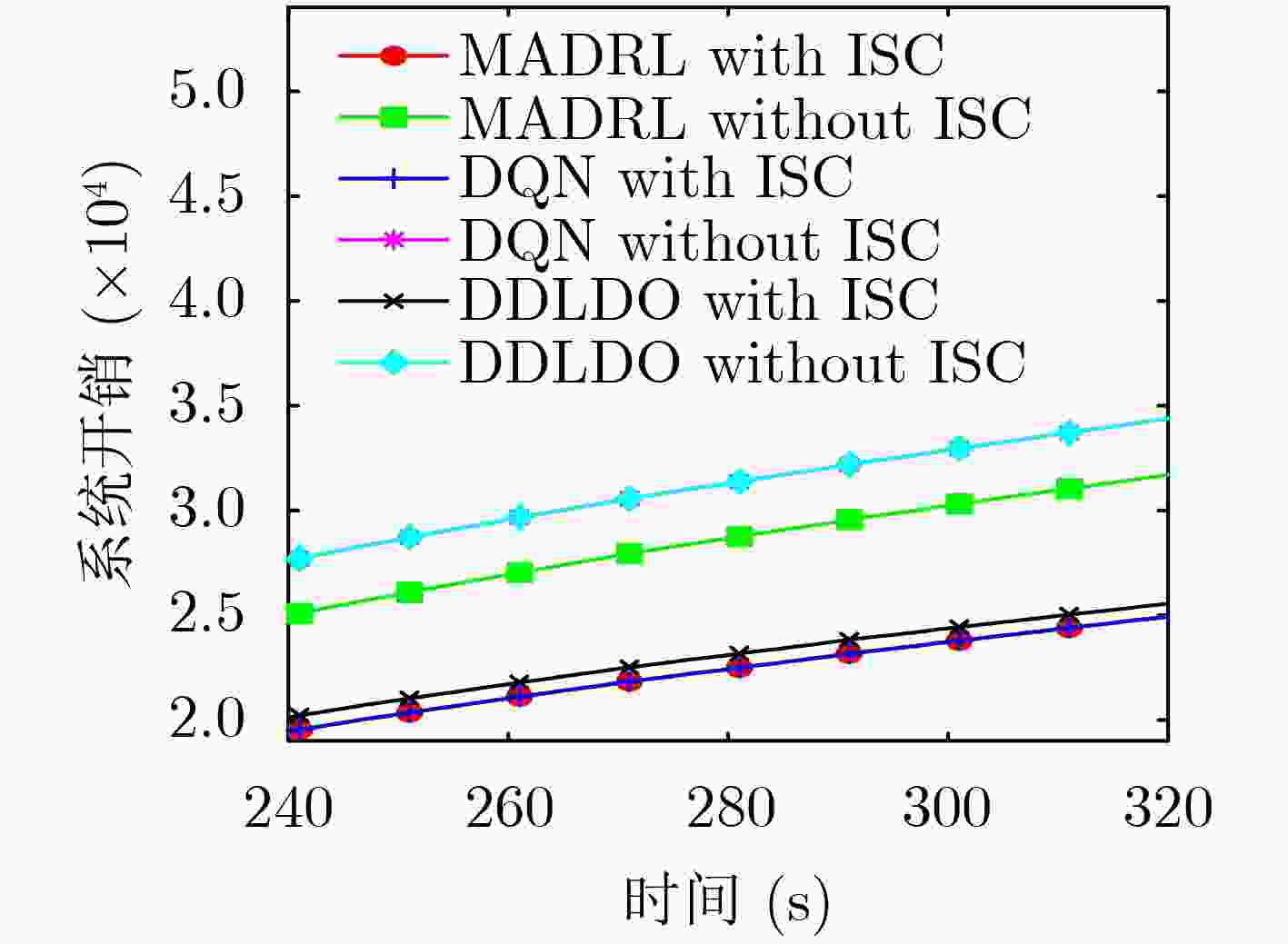

圖 7 ISC對DQN, MADRL算法性能的影響

下載: 全尺寸圖片幻燈片

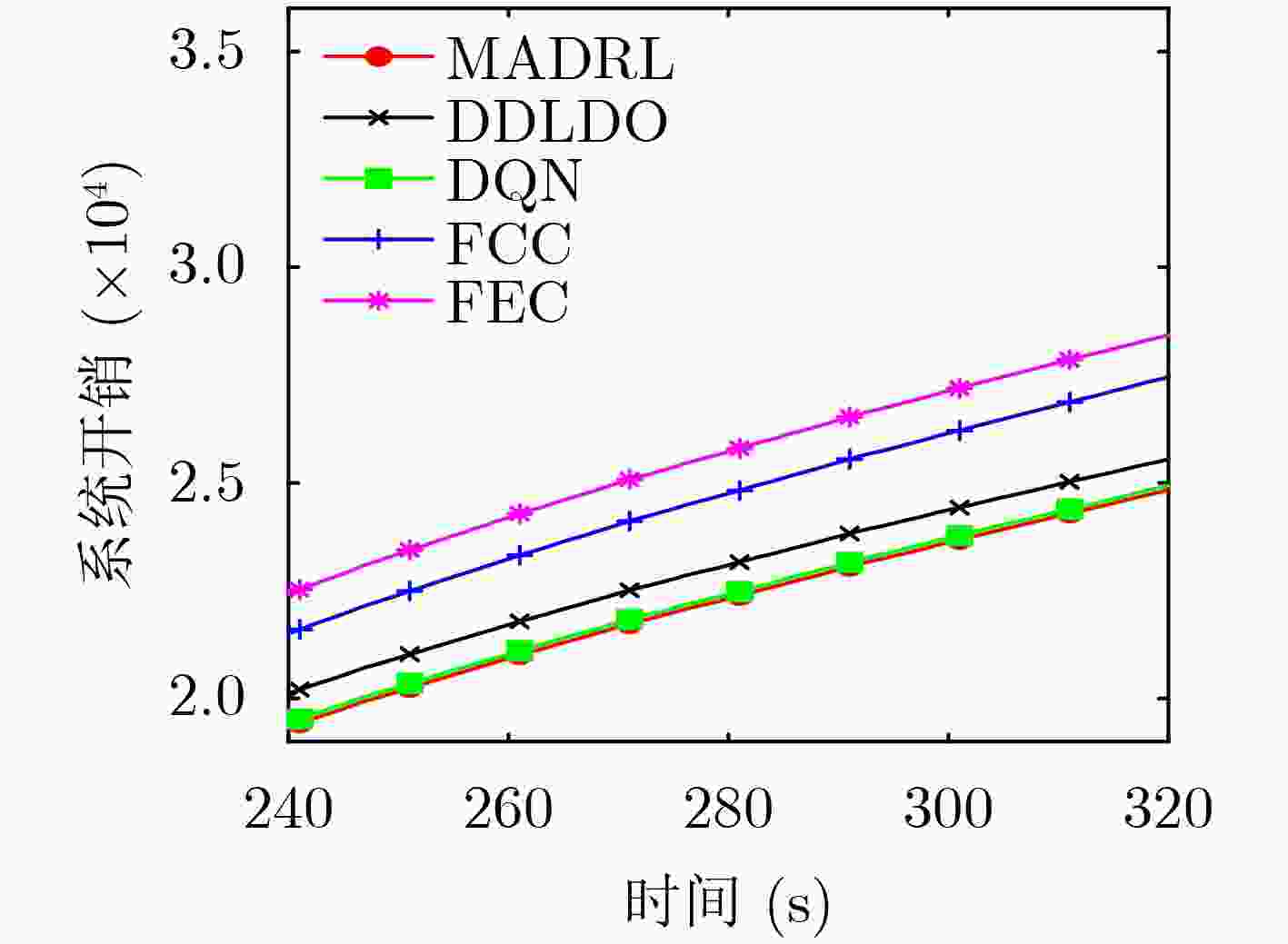

圖 8 不同算法下的累積系統開銷

下載: 全尺寸圖片幻燈片

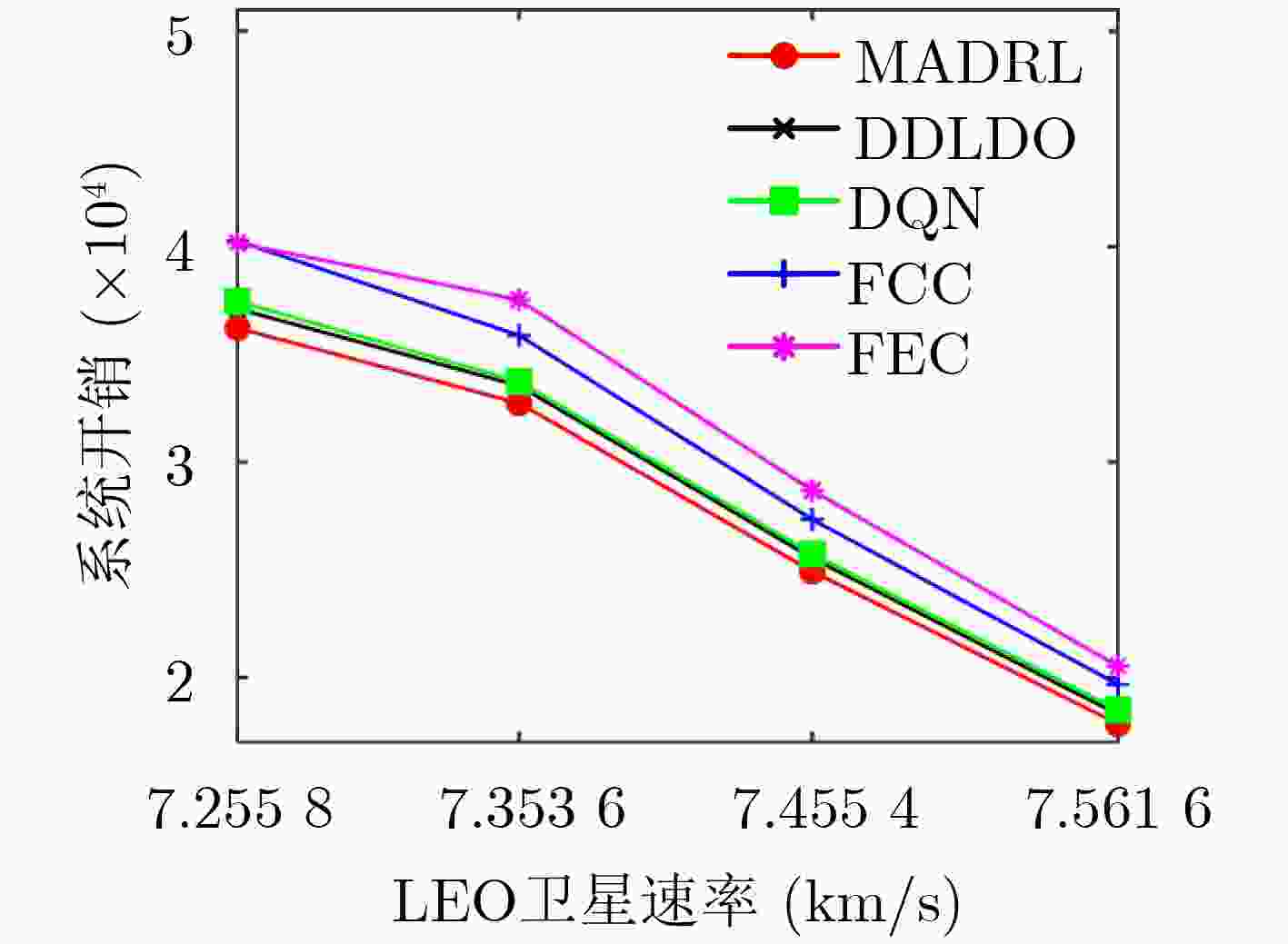

圖 9 不同算法下系統開銷與LEO衛星速率的關系

下載: 全尺寸圖片幻燈片

表 1 基本符號及其含義

符號	含義
$\mathcal{M}$	設備集合
$\mathcal{D}$	災區設備集合
$\mathcal{R}$	遠郊設備集合
$\mathcal{S}$	LEO衛星集合
$d_m^n$	時隙n設備m生成任務的大小
$c_m^n$	時隙n設備m的工作負載
$w_m^n$	時隙n設備m處理任務所需CPU周期數
$T_m^{n,\max }$	時隙n設備m處理任務的最大容忍時延
$x_m^n$	時隙n設備m的任務卸載決策
$f_m^n$	時隙n設備m的CPU工作頻率
$p_m^n$	時隙n設備m的傳輸功率
$t_m^n$	時隙n設備m的系統時延
$e_m^n$	時隙n設備m的系統能耗
$c_m^n$	時隙n設備m的系統開銷

下載: 導出CSV

1 自適應DRL算法

輸入：開銷矩陣
(1)初始化在線網絡Q和目標網絡Q_hat
(2)初始化訓練參數
(3) 　for episode =1 to n_ep do
(4) 　　初始化狀態 s
(5) 　　for n=1 to N do
(6) 　　　根據$\varepsilon $貪婪策略選擇動作a
(7) 　　　更新狀態$ {\boldsymbol{s}}' $
(8) 　　end for
(9) 　end for
(10) if ${\mathcal{D}} $的大小≥ n_b：
(11) 　從D中隨機抽取最小批量轉移元組
(12) 　根據任務狀態選擇DQN或DDQN計算y值
(13) end if
(14)計算損失函數${\text{Loss}}(\theta )$
(15)更新在線網絡Q
(16)每隔X步，更新目標網絡：Q_hat=Q
(17)更新狀態$ {\boldsymbol{s}} \leftarrow {\boldsymbol{s}}' $
(18)返回Q網絡

下載: 導出CSV

表 2 主要參數設置

參數	值
災區設備數D	300
遠郊設備數R	5
衛星服務范圍半徑r	1 400 km
任務大小$d_m^n$	[1e2,1e3,1e4,1e5,1e6] bit
任務負載$c_m^n$	[1,1.5] kcycle/bit
最大容忍時延$T_m^{n,\max }$	[0.05,0.1] s
電氣系數${{\varepsilon }}$	10^–28
信道帶寬B	10 MHz
天線增益G	20 dBi
噪聲溫度T	290 K
IoT設備m的最大能耗$E_m^{\max }$	5 W
LEO衛星s的最大能耗$E_s^{\max }$	2 000 W
云計算中心單核CPU工作頻率$f_{\text{c}}$	1.45 GHz
云計算中心核心數${N_{\text{c}}}$	256

下載: 導出CSV
