RIS輔助下的跨模態通信資源分配

陳鳴鍇; 孫振德; 萬雅芳

doi:10.11999/JEIT240619

RIS輔助下的跨模態通信資源分配

doi: 10.11999/JEIT240619 cstr: 32379.14.JEIT240619

陳鳴鍇^{1, 2, ,},
孫振德¹,
萬雅芳¹

1.
南京郵電大學通信與信息工程學院南京 210003
2.
南京郵電大學江蘇省通信與網絡技術工程研究中心南京 210019

基金項目: 國家自然科學基金(62001246)，江蘇省重點研發計劃項目(BE2023035)，江蘇省通信與網絡技術工程研究中心開放課題

詳細信息

作者簡介:
陳鳴鍇：男，副教授，研究方向?yàn)闊o線通信、信號處理、多媒體信息處理等

孫振德：男，碩士生，研究方向?yàn)檎Z義通信

萬雅芳：女，碩士生，研究方向?yàn)槎嗝襟w通信

通訊作者:
陳鳴鍇　mkchen@njupt.edu.cn

中圖分類號: TN911
計量
- 文章訪問數: 136
- HTML全文瀏覽量: 124
- PDF下載量: 31
- 被引次數: 0
出版歷程
- 收稿日期: 2024-07-17
- 修回日期: 2025-02-12
- 網絡出版日期: 2025-02-21
- 刊出日期: 2025-02-28

Resource Allocation for RIS-aided Cross-Model Communications

1.
School of Communication and Information Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
2.
Jiangsu Engineering Research Center of Communication and Network Technology, Nanjing University of Posts and Telecommunications, Nanjing 210019, China

Funds: The National Natural Science Foundation of China (62001246), The Key Reserch and Development Program of Jiangsu Province Key project and topics (BE2023035), Open Research Fundation of Jiangsu Engineering Research Center of Communication and Network Technology, NJUPT

摘要

摘要: 針對視頻和觸覺業務共存的跨模態業務場景，該文構建了可重構智能表面(RIS)輔助的共存網絡切片系統，用以提高視頻業務和觸覺業務的傳輸速率和可靠性。同時，為了有效降低觸覺業務通過穿孔帶給視頻業務的資源損耗，提出了動態被動波束賦形方案，允許RIS在不同時隙進行動態調整。基于上述方案，該文在確保觸覺業務傳輸?shù)臅r(shí)延和可靠性滿足約束的同時，構建最大化視頻業務傳輸速率的優化問題，以滿足跨模態業務共存需求，實現資源的合理分配。為求解此優化問題，該文將其建模為一個馬爾可夫決策過程(MDP)，通過深度確定性策略梯度(DDPG)算法來進行視頻數據和觸覺數據傳輸資源的聯合優化。仿真結果顯示，與現有方案相比，所提方案具有一定的優越性，在保證傳輸觸覺業務可靠性的前提下，提高了約66.67%的視頻業務和速率。
- 跨模態通信 /
- 可重構智能表面 /
- 網絡切片 /
- 資源分配
Abstract: Objective The rapid development of digital and intelligent technologies has driven the increasing demand for cross-modal communication systems to support a wide range of applications, such as high-bandwidth video streaming, ultra-reliable low-latency haptic interactions, and immersive virtual reality experiences. These applications require the concurrent transmission of heterogeneous services, each with distinct and often conflicting resource demands. For instance, video services necessitate high data rates and large bandwidth allocations for smooth playback, while haptic services require ultra-low latency (<0.3 ms) and high reliability (>99.999%) for real-time interaction. Existing resource allocation schemes, typically designed for single-service scenarios or static optimization, do not effectively address the dynamic nature of wireless channels or the stringent requirements of multi-service coexistence. This paper proposes a dynamic resource allocation framework that utilizes Reconfigurable Intelligent Surfaces (RIS) to optimize the transmission efficiency of video services and the reliability of haptic services, thereby enhancing spectrum utilization and improving the Quality of Experience (QoE) in cross-modal communication systems. Methods To address the resource competition between video and haptic services, this paper proposes an RIS-aided network slicing architecture. The RIS dynamically adjusts its phase shifts to reshape the wireless propagation environment, improving channel gain and reducing interference. A puncturing-based resource sharing mechanism is introduced, enabling haptic traffic to temporarily use resources allocated to video services during burst arrivals. This mechanism ensures the stringent latency and reliability requirements of haptic services are met without significantly affecting video service performance. The optimization problem is formulated as a Mixed-Integer Nonlinear Programming (MINLP) task, with the objective of maximizing the video service rate while satisfying the constraints of haptic services. To tackle the complexity of joint RIS phase optimization and resource allocation, the problem is modeled as a Markov Decision Process (MDP) with continuous state and action spaces. A Deep Deterministic Policy Gradient (DDPG) algorithm is employed, integrating actor-critic networks, experience replay, and target networks to learn optimal policies. The actor network generates decisions regarding resource block allocation, RIS phase shifts, and puncturing ratios, while the critic network evaluates the long-term reward, defined as the weighted sum of video throughput and haptic service satisfaction. Results and Discussions Simulation results demonstrate the effectiveness of the proposed scheme. Compared to the HMSA scheme, the proposed method significantly improves the total transmission rate for users, particularly under varying Base Station (BS) power levels (Fig. 4). The RIS phase optimization scheme outperforms both the random phase and no-RIS scenarios, highlighting the importance of dynamically adjusting RIS reflection coefficients to enhance channel gain (Fig. 5). Furthermore, the average delay of haptic data packets decreases as the number of RIS reflection units increases, and higher BS transmit power further reduces latency, confirming the synergy between RIS deployment and power allocation (Fig. 6). The user sum rate declines as the arrival rate of haptic data packets increases, due to intensified resource competition. However, deploying additional RIS reflection units mitigates this degradation, demonstrating the robustness of RIS-aided resource allocation (Fig. 7). The convergence behavior of the DDPG algorithm is analyzed, showing faster convergence in low-SNR environments (e.g., P = 0 dBm) compared to high-SNR scenarios (e.g., P = 30 dBm), where reward fluctuations are more pronounced (Fig. 8). Additionally, the learning rate is identified as a key hyperparameter, with a value of 0.001 providing the optimal balance between convergence speed and stability (Fig. 9). These results confirm that the proposed framework enhances video service throughput while ensuring the stringent reliability and low-latency requirements of haptic services, enabling efficient cross-modal resource coexistence. Conclusions This work presents an RIS-assisted dynamic resource allocation framework for cross-modal communication systems, effectively addressing the coexistence challenges of video and haptic services. Key innovations include the integration of RIS phase optimization with puncturing-based resource sharing and the application of DDPG to solve high-dimensional MINLP problems. The proposed scheme significantly enhances video throughput and haptic reliability, demonstrating its potential for 6G-enabled immersive applications. Future research will extend this framework to mobile user scenarios, multi-RIS collaborative systems, and multi-service coexistence environments with diverse QoS requirements. Specifically, the study will examine the impact of user mobility on RIS configuration and resource allocation strategies. Additionally, the benefits of deploying multiple RIS units in a coordinated manner will be explored to further enhance system performance and coverage. Finally, the framework will be expanded to support a broader range of services with varying latency, reliability, and bandwidth demands, paving the way for more versatile and efficient cross-modal communication systems.
- Cross-model communication /
- Reconfigurable Intelligent Surfaces (RIS) /
- Network slicing /
- Resource allocation

HTML全文

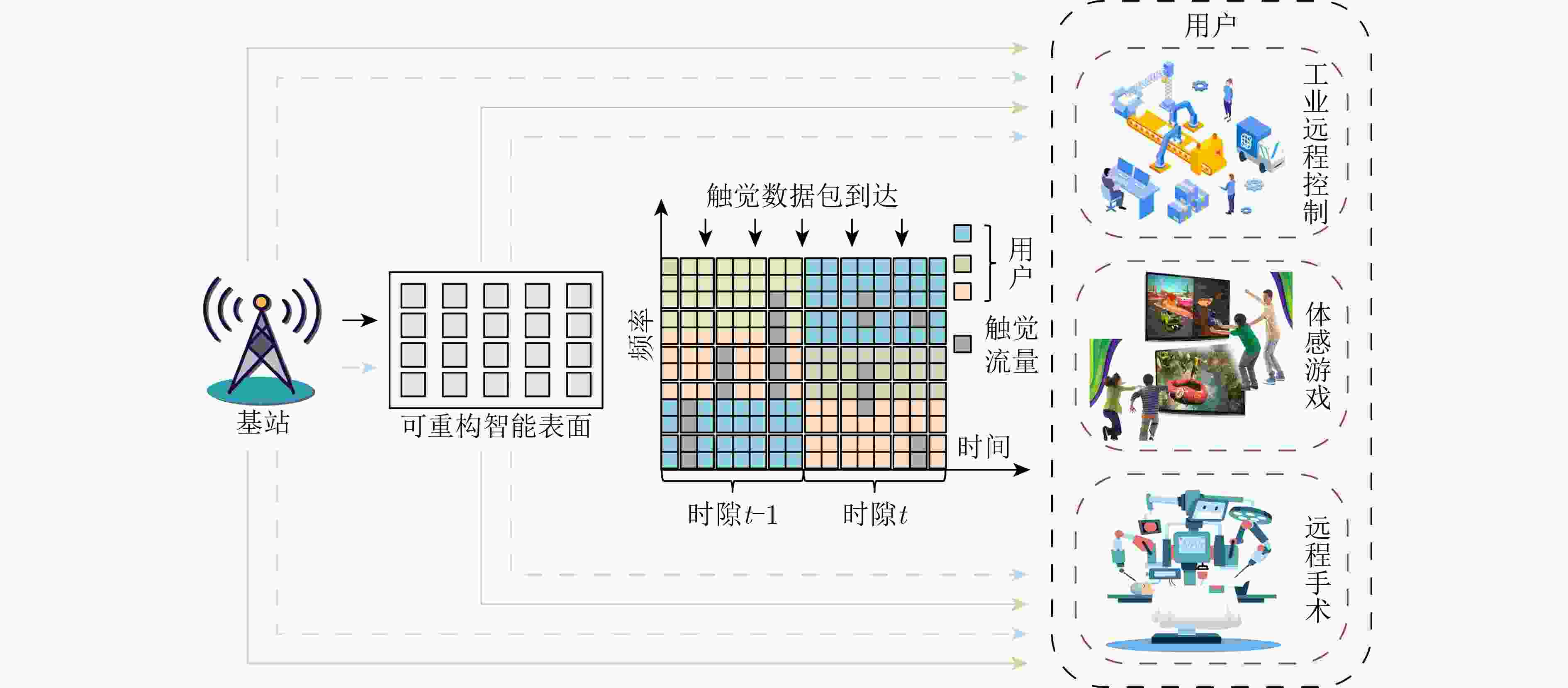

圖 1 基于穿孔方案的RIS輔助跨模態通信系統架構

下載: 全尺寸圖片幻燈片

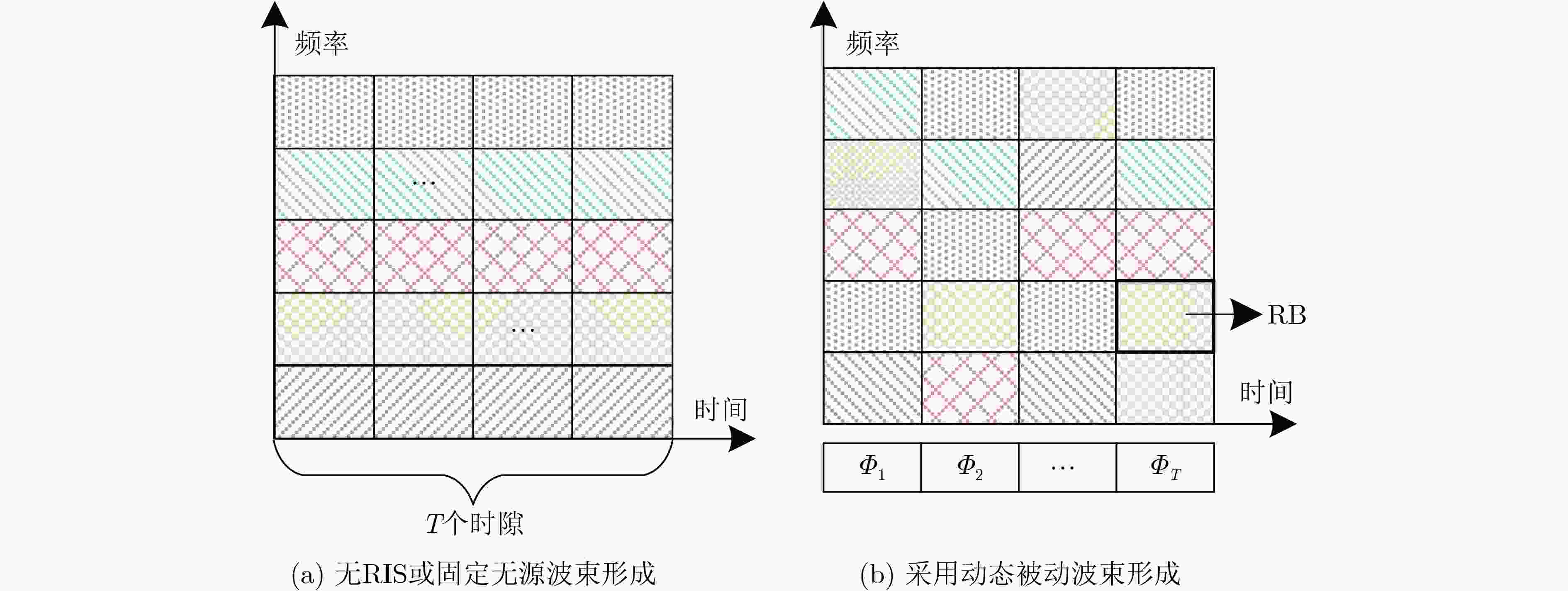

圖 2 資源塊的說明和提出的動態被動波束形成方案

下載: 全尺寸圖片幻燈片

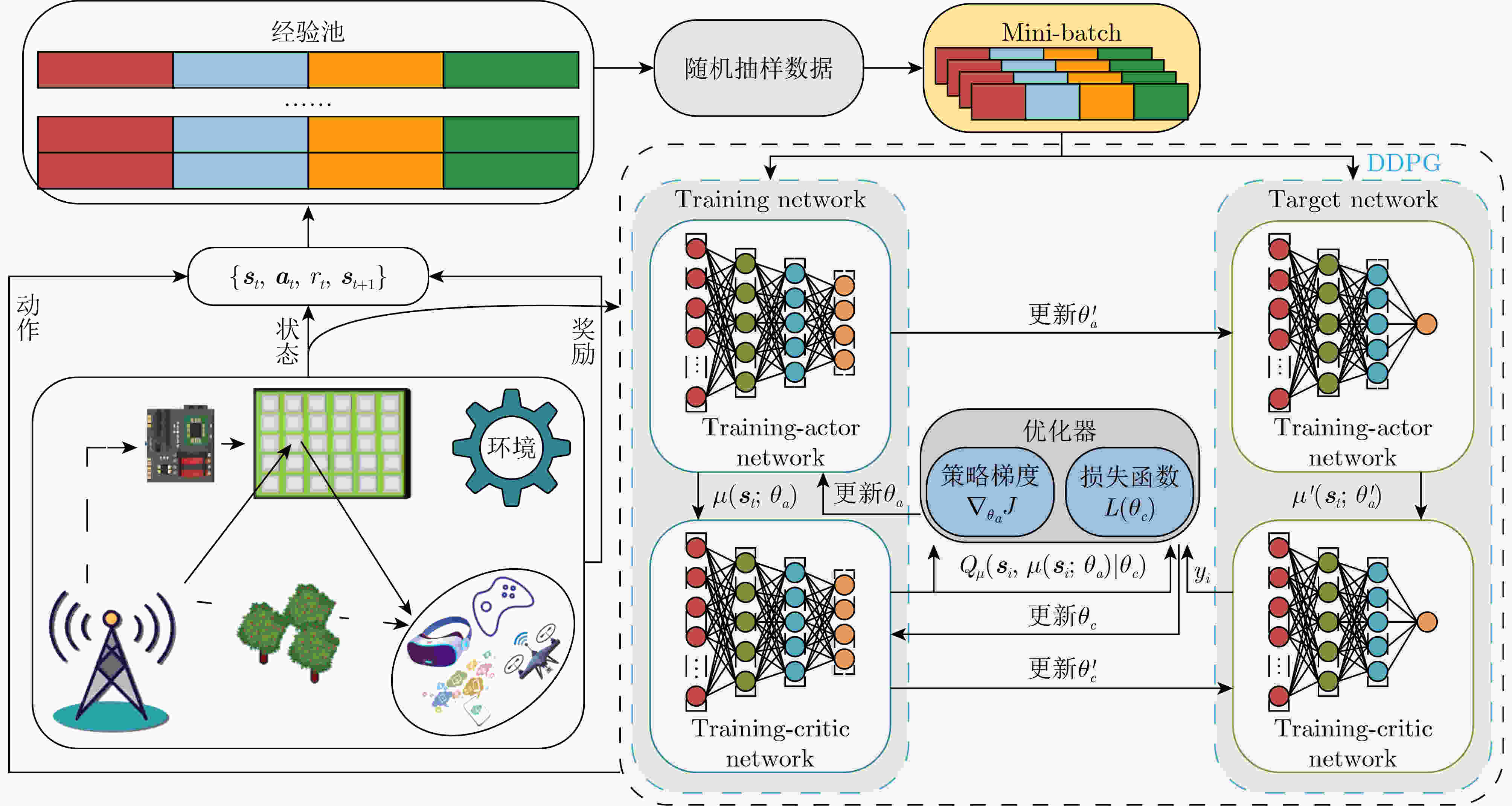

圖 3 基于actor-critic的DDPG算法框架圖

下載: 全尺寸圖片幻燈片

圖 4 不同方案下用戶和速率隨著基站功率的變化趨勢

下載: 全尺寸圖片幻燈片

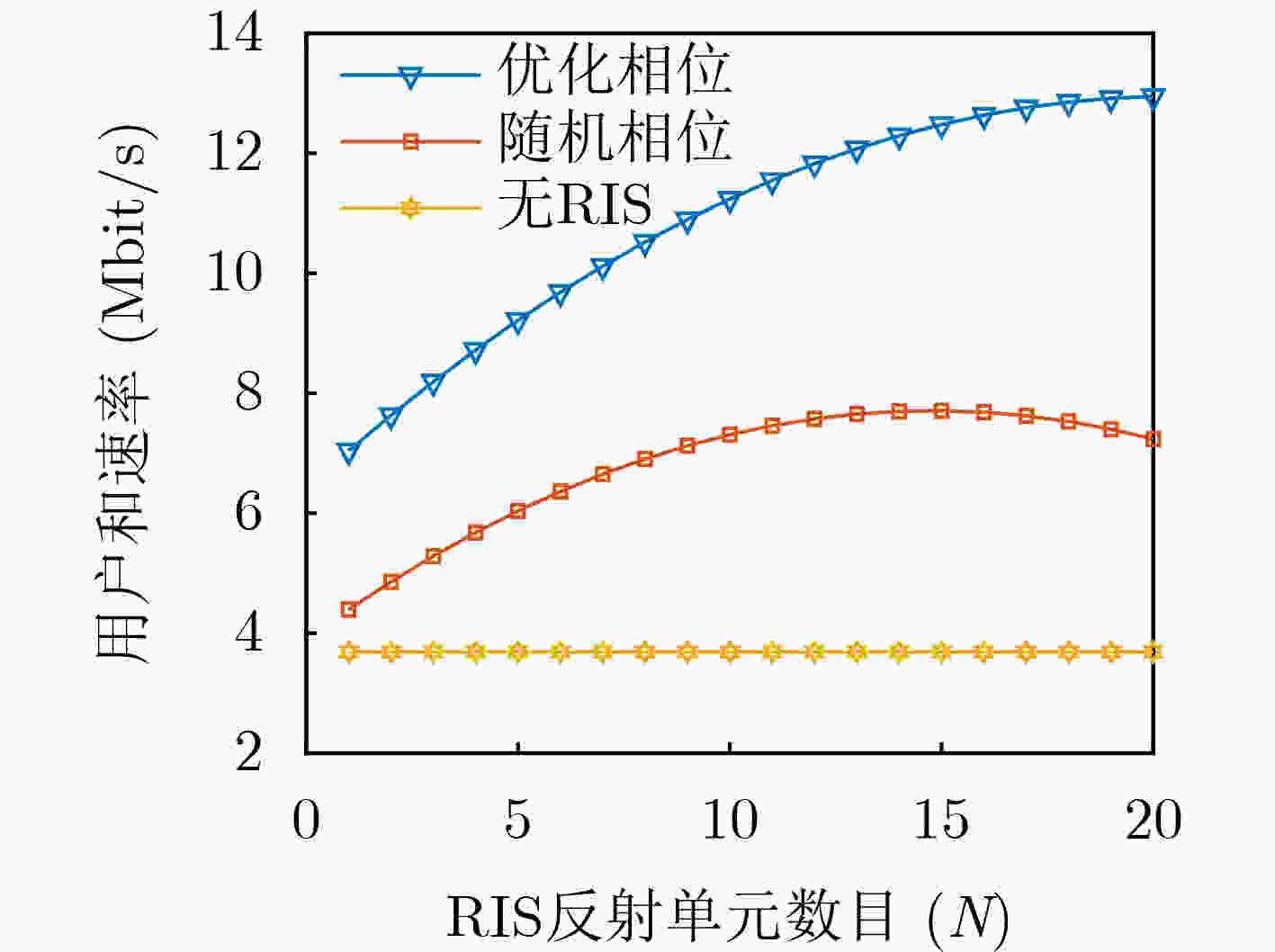

圖 5 不同方案下用戶和速率隨著RIS反射單元數量的變化趨勢

下載: 全尺寸圖片幻燈片

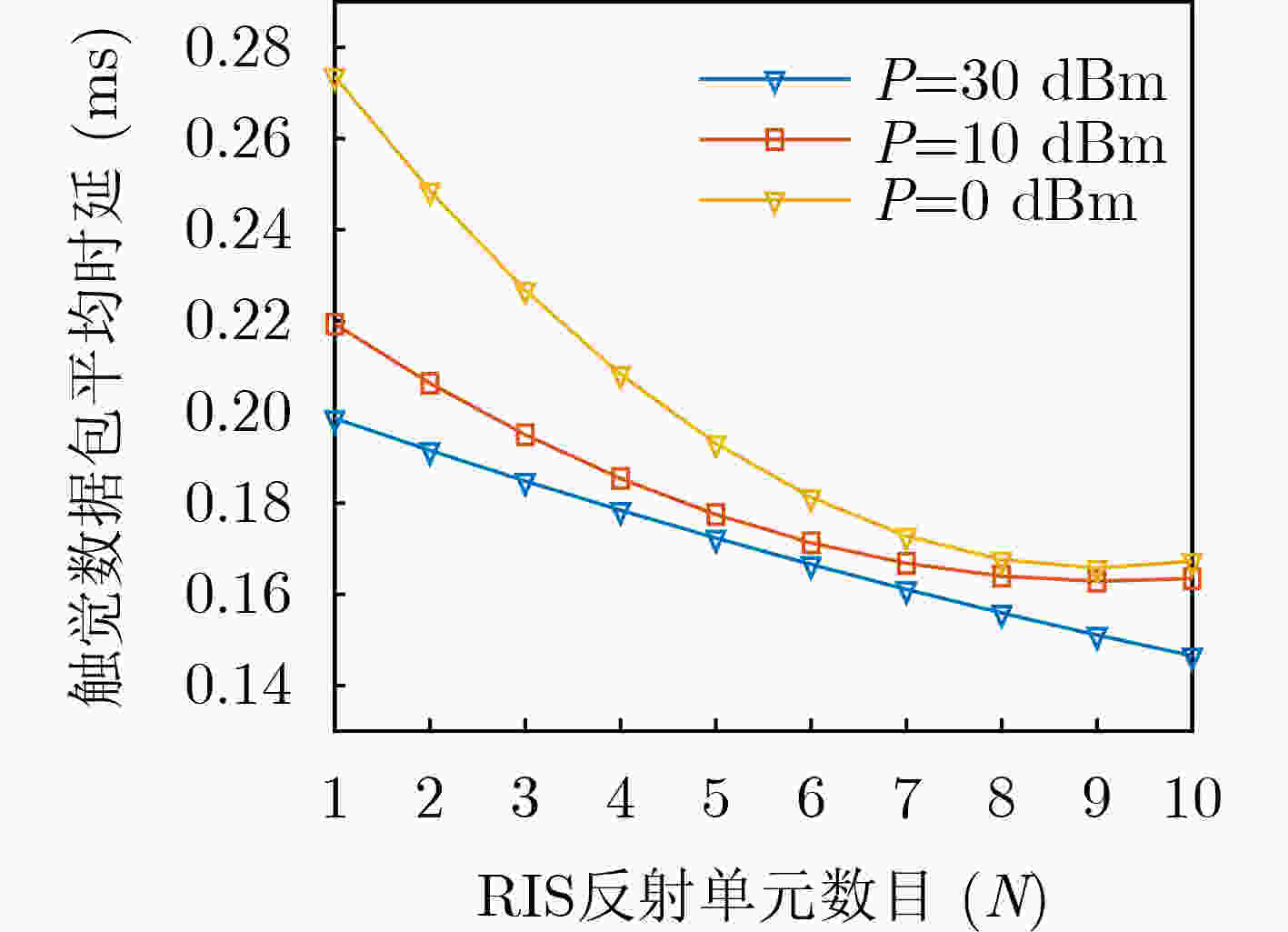

圖 6 不同基站功率和RIS反射單元數量對觸覺數據包平均時延的影響

下載: 全尺寸圖片幻燈片

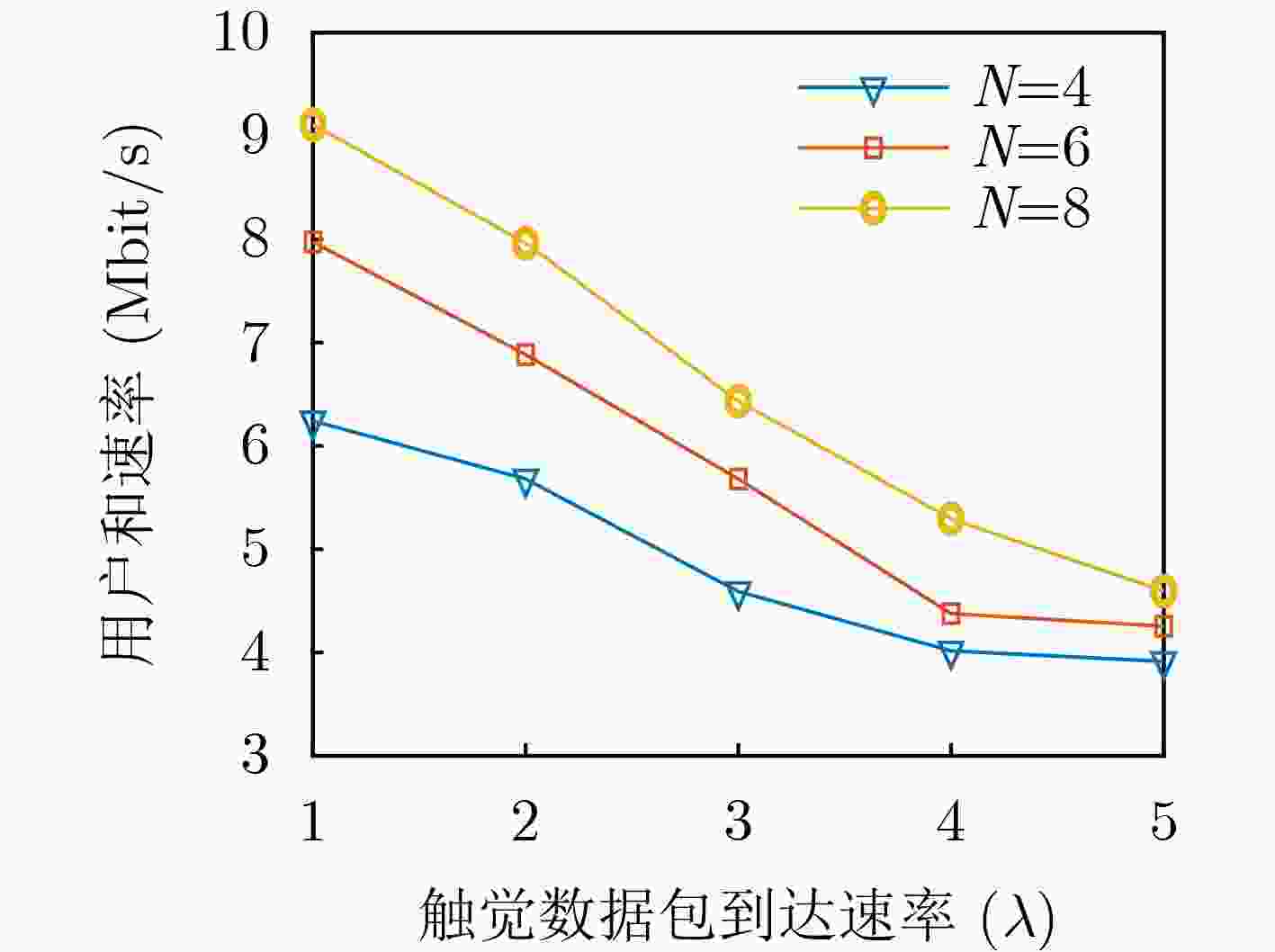

圖 7 不同觸覺數據包到達速率下用戶和速率的變化情況

下載: 全尺寸圖片幻燈片

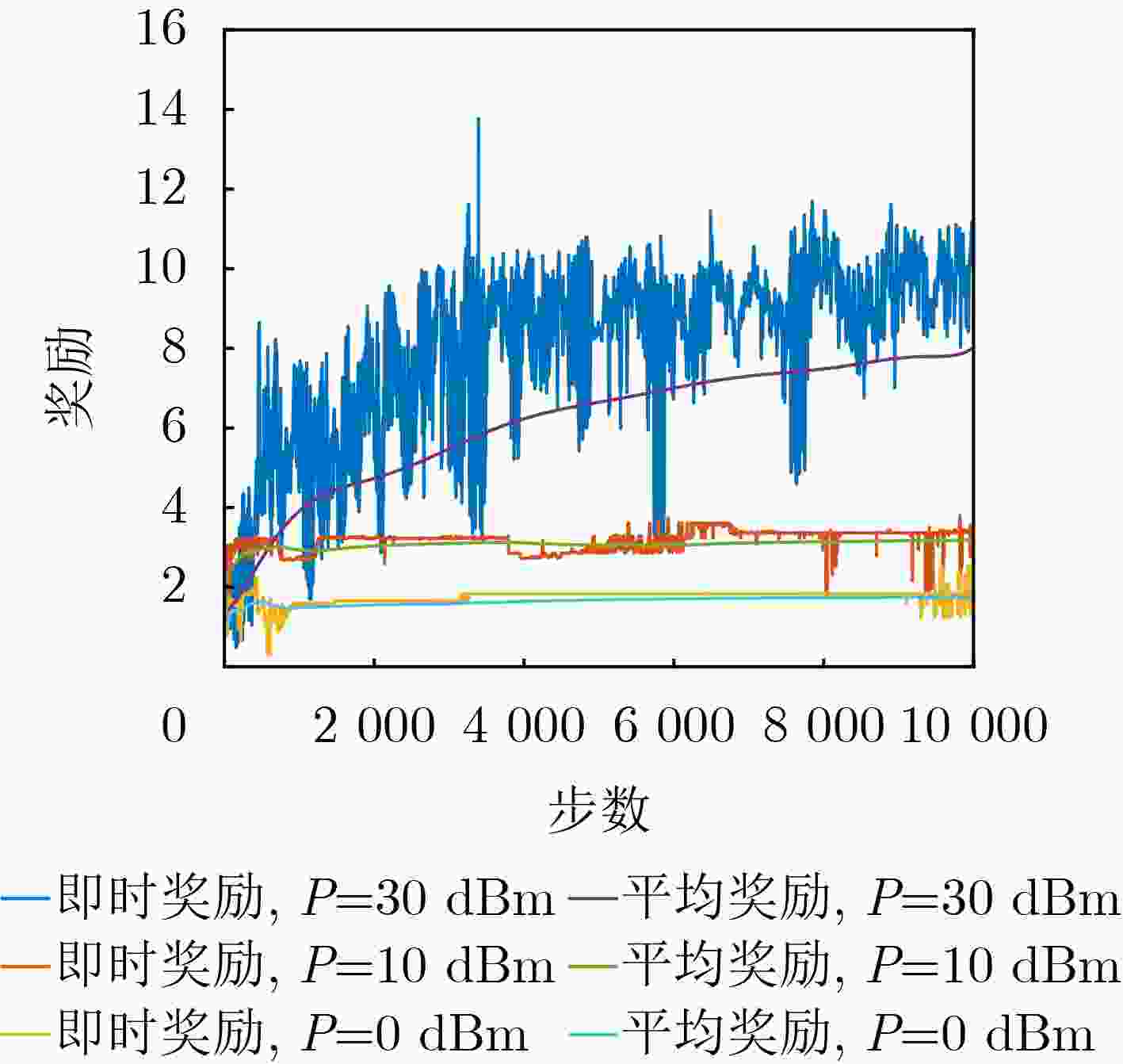

圖 8 不同功率下獎勵隨步長的變化

下載: 全尺寸圖片幻燈片

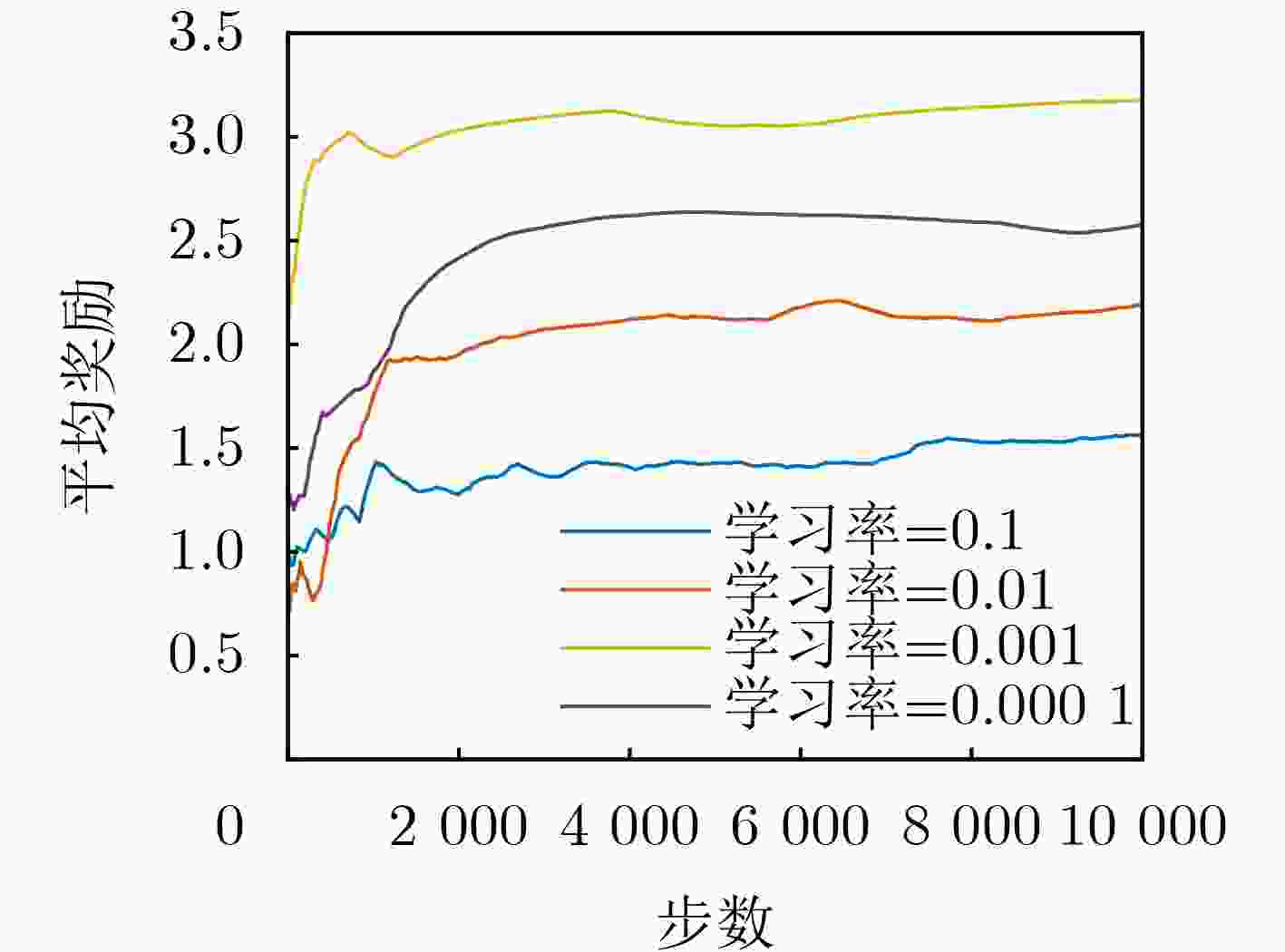

圖 9 不同學習率下平均獎勵隨步長的變化

下載: 全尺寸圖片幻燈片

1 DDPG算法

初始化：${s_1}$，${\theta _a}$，${\theta _c}$，${\theta '_a} \leftarrow {\theta _a}$和${\theta '_c} \leftarrow {\theta _c}$，經驗回放池$\mathbb{N}$，隨　機噪聲${{{\boldsymbol{N}}}_t}$
while 迭代回合$ \le $最大迭代回合 do
while $t \le T$ do
? 根據狀態${s_t}$和隨機噪聲${{{\boldsymbol{N}}}_t}$，通過actor網絡計算動作　　　${{\boldsymbol{a}}_t} = \mu ({{\boldsymbol{s}}_t};{\theta _a}) + {{\boldsymbol N}_t}$
? 執行動作${{\boldsymbol{a}}_t}$，獲得獎賞值$r({{\boldsymbol{s}}_t},{{\boldsymbol{a}}_t})$和下一狀態${{\boldsymbol{s}}_{t + 1}}$
? 將經驗$({{\boldsymbol{s}}_t},{{\boldsymbol{a}}_t},{r_t},{{\boldsymbol{s}}_{t + 1}})$存儲至經驗回放池$\mathbb{N}$中
? 從經驗回放池$\mathbb{N}$中隨機采樣${N_{{\mathrm{batch}}}}$個經驗樣本進行神經網 　　　絡訓練
? 通過式(26)的近似形式，計算得到當前訓練critic網絡的損　　　失函數
? 通過損失函數$L({\theta _c})$關于${\theta _c}$的梯度更新critic網絡的參數
? 通過式(23)更新actor網絡的參數${\theta _a}$
? 使用式(29)和式(30)來更新目標actor網絡和目標critic網絡 　　　的參數${\theta '_a}$和${\theta '_c}$
? $t \leftarrow t + 1$
end while
end while

下載: 導出CSV

表 1 仿真參數表

參數意義	設定數值
資源塊RB總數$K$	200
時隙個數$T$	20
一個時隙的持續時間	1 ms
一個微小時隙的持續時間$\varDelta $	0.125 ms
一個時隙內微小時隙個數${M}$	8
RB的頻率帶寬$B$	180 kHz
觸覺數據包到達速率$\lambda $	3
觸覺數據包的大小$D_l^{m,t}$	20 Byte
高斯隨機噪聲功率${\delta ^2}$	–93 dBm
觸覺數據包的解碼錯誤概率${\varepsilon _l}$	${10^{ - 6}}$

下載: 導出CSV
