基于雙卷積自編碼器的自適應波束形成

蔣伊琳; 李帥; 鄭沛; 唐元博

doi:10.11999/JEIT240486

基于雙卷積自編碼器的自適應波束形成

doi: 10.11999/JEIT240486 cstr: 32379.14.JEIT240486

蔣伊琳^{1, 2},
李帥^1, ,,
鄭沛³,
唐元博¹

1.
哈爾濱工程大學 哈爾濱 150001
2.
航空工業電磁頻譜協同探測與智能認知聯合技術中心哈爾濱 150001
3.
試驗物理與計算數學國家級重點實驗室北京 100876

基金項目: 國防科技基礎加強計劃 (2019-JCJQ-ZD-067-00)

詳細信息

作者簡介:
蔣伊琳：男，博士，副教授，研究方向?yàn)樯疃葘W(xué)習、信號處理

李帥：男，碩士生，研究方向?yàn)樯疃葘W(xué)習、信號處理

鄭沛：男，高級工程師，研究方向?yàn)殡姶蓬l譜感知

唐元博：男，碩士生，研究方向?yàn)樯疃葘W(xué)習、信號處理

通訊作者:
李帥　lishaui@hrbeu.edu.cn

中圖分類號: TN911.7
計量
- 文章訪問數: 237
- HTML全文瀏覽量: 94
- PDF下載量: 54
- 被引次數: 0
出版歷程
- 收稿日期: 2024-06-14
- 修回日期: 2025-02-11
- 網絡出版日期: 2025-02-19
- 刊出日期: 2025-02-28

Adaptive Beamforming Based on Dual Convolutional Autoencoder

JIANG Yilin^{1, 2},
LI Shuai^{1
, ,},
ZHENG Pei³,
TANG Yuanbo¹

1.
College of Information and Communication Engineering, Harbin Engineering University, Harbin 150001, China
2.
AVIC United Technology Center for Electromagnetic Spectrum Collaborative Detection and Intelligent cognition, Harbin 150001, China
3.
State Key Laboratory of Experimental Physics and Computational Mathematics, Beijing 100876, China

Funds: The National Defense Science and Technology Strengthening Program (2019-JCJQ-ZD-067-00)

摘要

摘要: 在低信噪比環境下，陣列天線獲取空域信號的來波方向極其困難，導致一般的波束形成方法無法準確形成正對入射信號的波束。針對上述問題，該文提出了一種基于雙卷積自編碼器的盲接收自適應波束形成(Dual Convolutional AutoEncoder-Adaptive Beamforming, DCAE-ABF)方法，該方法在基于大量空域統計信息的情況下，以時域-頻域聯合條件作為約束，利用兩個獨立的卷積自編碼器(CAE)分別對陣列接收信號與輻射源信號進行特征提取，并使用深度神經網絡(DNN)將兩個CAE的特征編碼進行連接，構建DCAE網絡，實現在低信噪比環境下，面對未知頻率和來波方向的入射信號時，也能夠自適應形成正對入射信號的波束，達到盲接收的效果。仿真實驗結果表明，在低信噪比環境下，單信號與雙信號入射時所帶來的信噪比增益均高于常規波束形成(CBF)方法與基于最小均方誤差的自適應波束形成(Minimum Mean Square Error-Adaptive BeamForming, MMSE-ABF)方法，以及基于卷積神經網絡的自適應波束形成方法(Convolutional Neural Networks- Adaptive BeamForming, CNN-ABF)，且該增益在入射信號頻率、角度變化時仍具有良好的穩定性。
- 自適應波束形成 /
- 卷積自編碼器 /
- 盲波束形成 /
- 信噪比增益
Abstract: Objective Most traditional beamforming techniques and adaptive beamforming methods rely on reference signals. These methods require prior knowledge of the signal frequency and Direction of Arrival (DOA) at the array for beamforming. However, in low Signal-to-Noise Ratio (SNR) environments, obtaining the frequency and DOA of the incident signals is extremely challenging. This difficulty leads to significant performance degradation in reference-signal-based beamforming, limiting its applicability in tasks such as electronic reconnaissance and electronic countermeasures in low SNR conditions. This paper addresses the challenge of enabling antenna arrays to perform adaptive beamforming for incident signals with unknown frequencies and DOAs in low-SNR environments. Methods This paper proposes a Dual Convolutional AutoEncoder-Adaptive Beamforming (DCAE-ABF) method for blind reception. The approach leverages dual Convolutional Autoencoders (CAEs) to extract features from both the array-received signal and the radiation source signal, utilizing extensive air-domain statistical information with joint time-frequency domain constraints. A Deep Neural Network (DNN) connects the feature encodings from the two CAEs to construct the DCAE network. This method enables adaptive beamforming in low SNR environments, even when the incident signal’s frequency and DOA are unknown, facilitating blind reception. Results and Discussions Simulation results demonstrate that the proposed DCAE-ABF method can rapidly and accurately adjust the beam direction for incident signals with unknown frequencies and directions of arrival in a low SNR environment, effectively orienting the beam towards the incident signals for optimal reception. This method improves the output signal’s SNR, with the SNR gain significantly exceeding that of traditional beamforming techniques (Fig. 4, Fig. 6). Furthermore, the SNR gain achieved by this method remains stable even when the frequency and angle of the incident signal vary (Fig. 5). Conclusions This paper presents an adaptive beamforming method based on dual convolutional autoencoders. The method outperforms the other three approaches discussed in this study when applied to incident signals with unknown directions of arrival in low SNR environments. Even when the DOA is unknown, the method effectively utilizes the spatial information accumulated during autoencoder training. It can extract features from the array signals and adaptively form beams directed at the incident signals, achieving optimal reception. This approach enables blind adaptive beamforming for signals with unknown frequencies and directions of arrival, significantly improving the SNR of the incident signals.
- Adaptive beamforming /
- Convolutional autoencoder /
- Blind beamforming /
- Signal-to-noise ratio gain

HTML全文

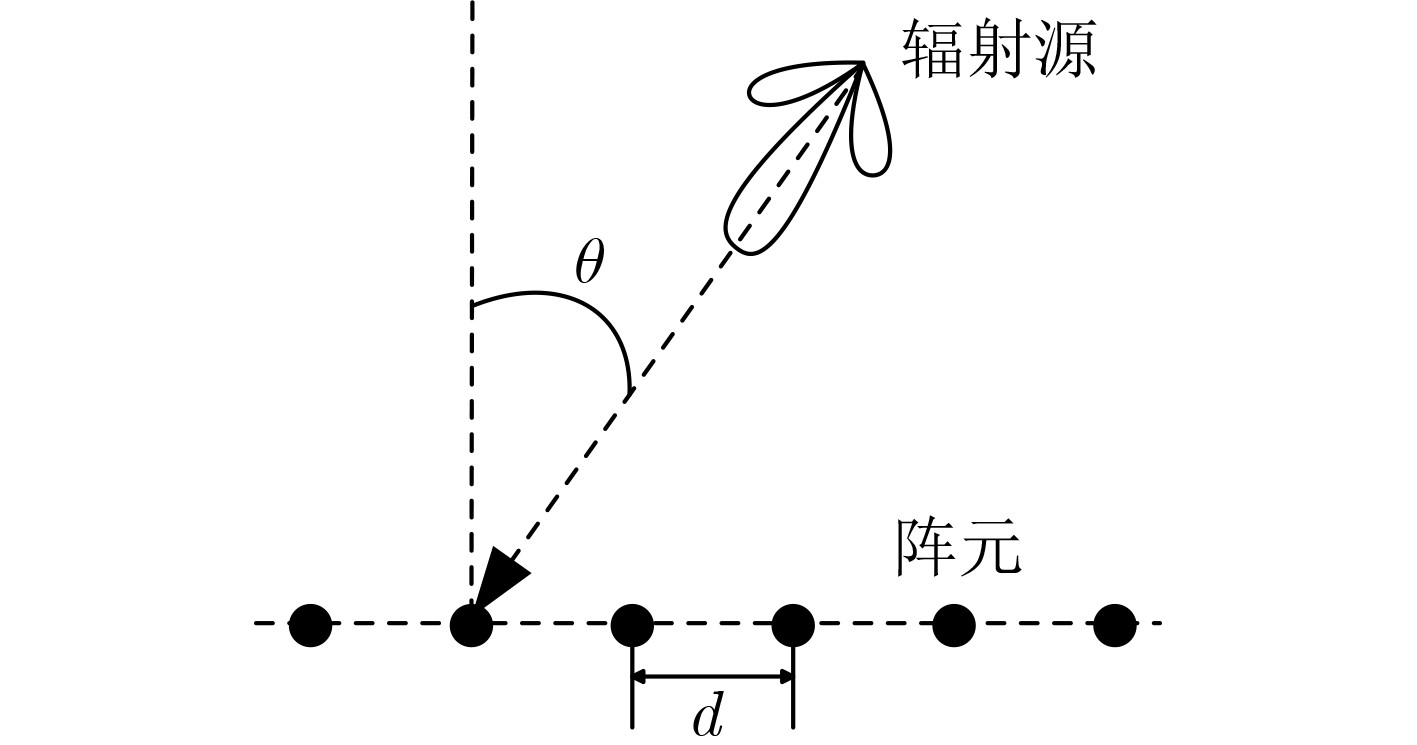

圖 1 信號接收模型示意圖

下載: 全尺寸圖片幻燈片

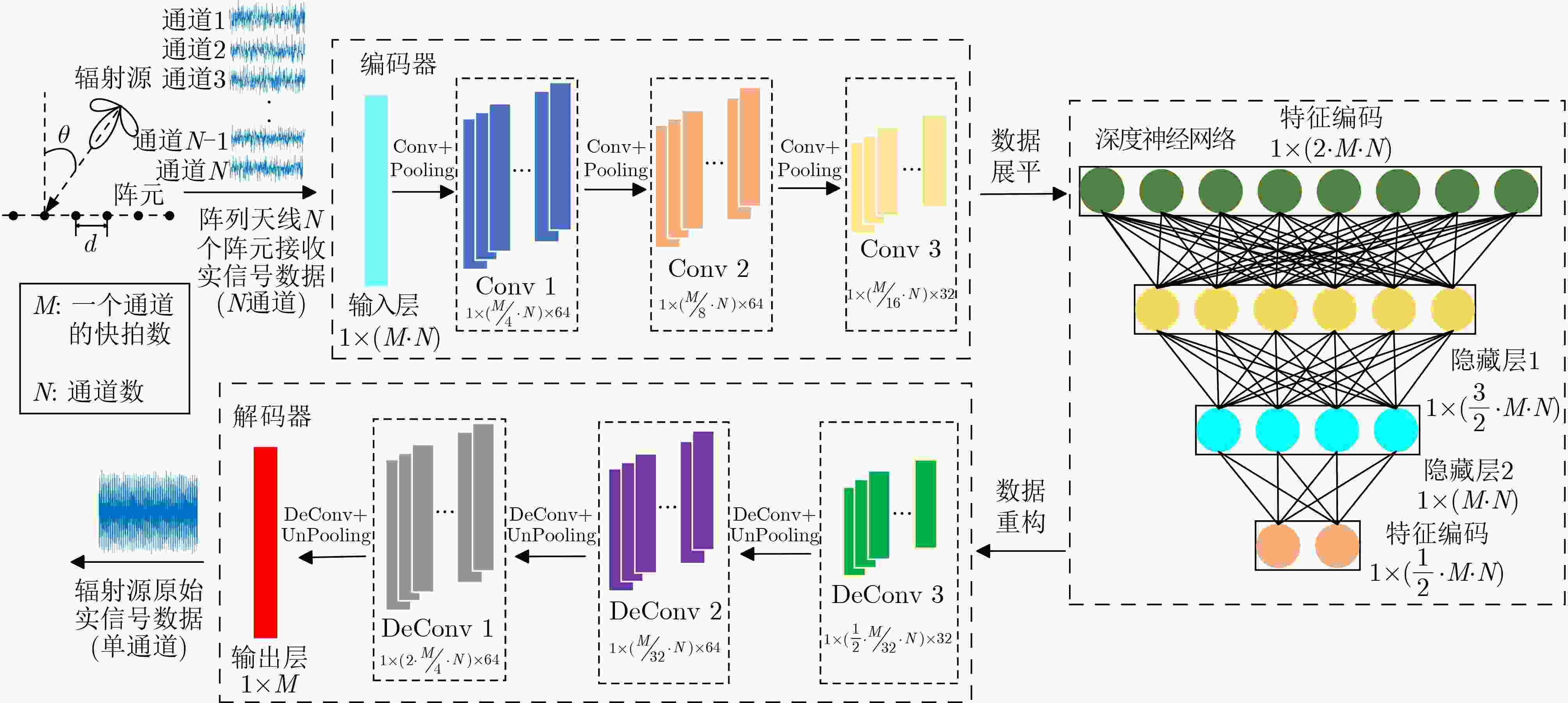

圖 2 DCAE-ABF示意圖

下載: 全尺寸圖片幻燈片

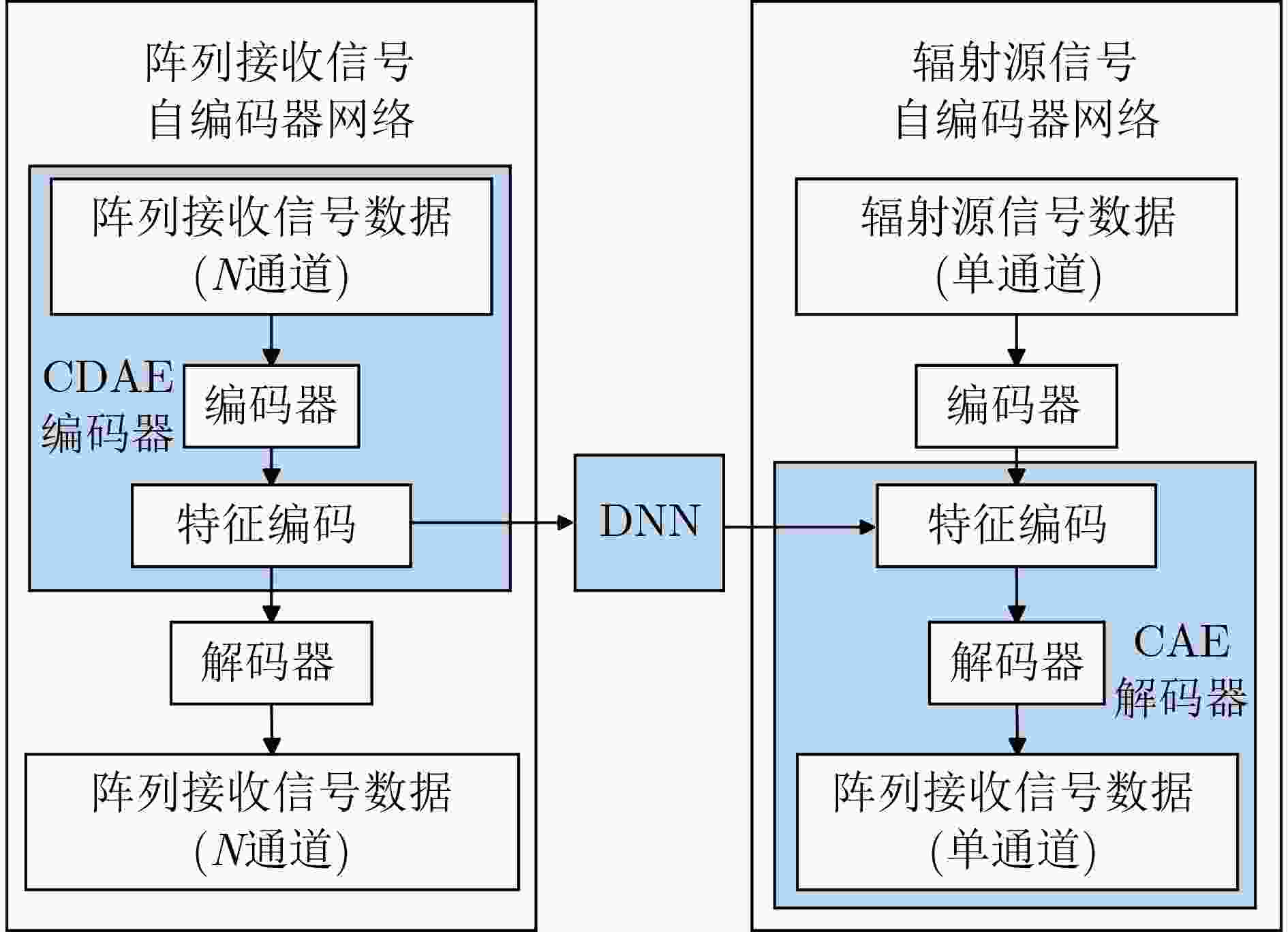

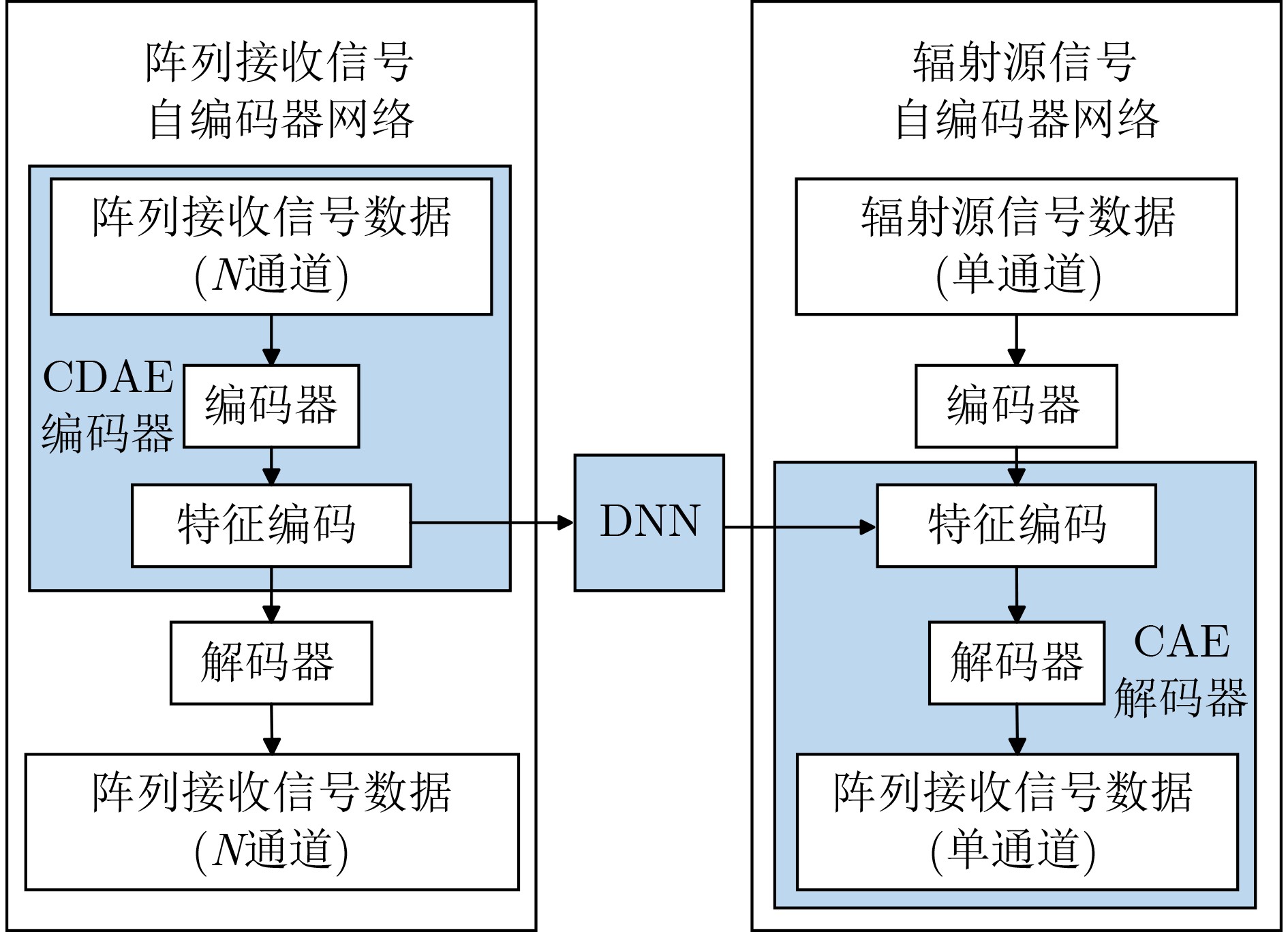

圖 3 DCAE網絡結構圖

下載: 全尺寸圖片幻燈片

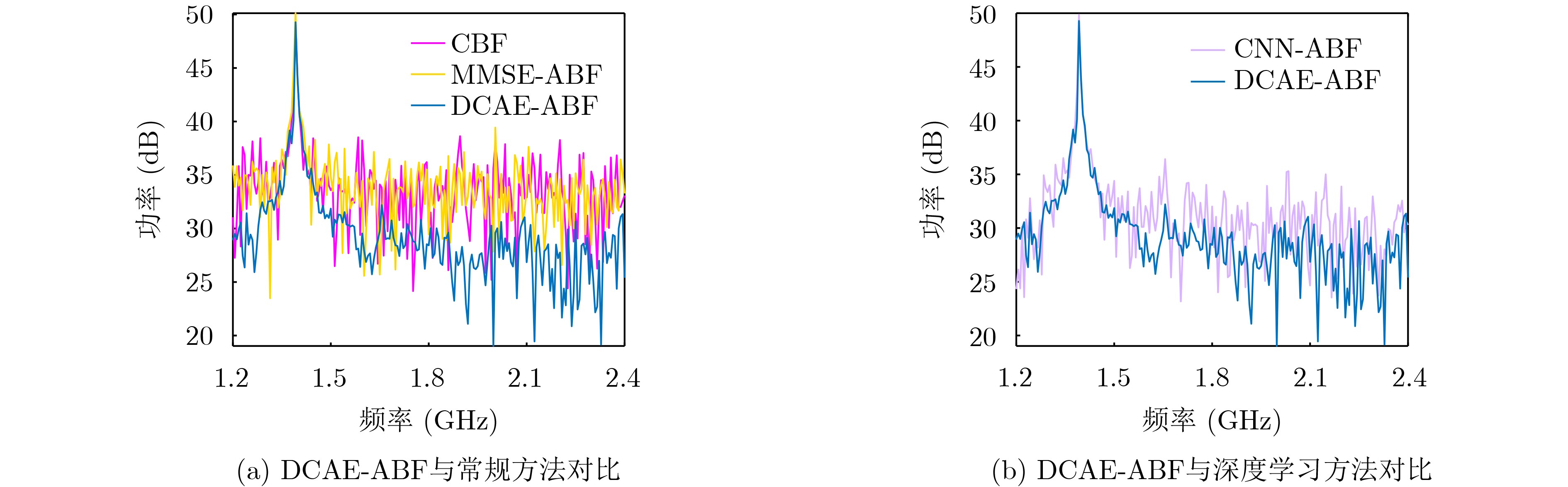

圖 4 4種方法處理后的單信號頻譜對比

下載: 全尺寸圖片幻燈片

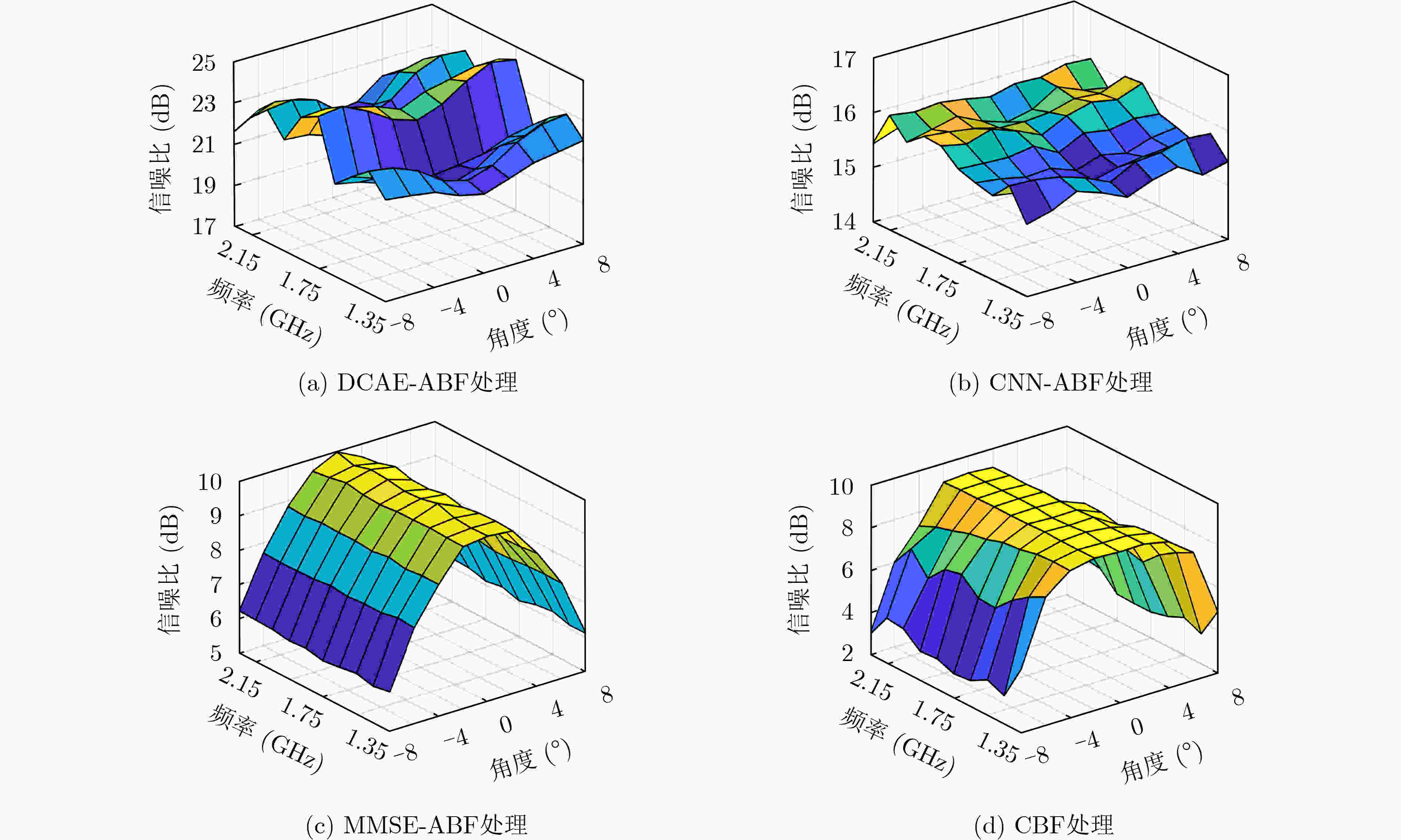

圖 5 4種方法處理后信噪比變化圖

下載: 全尺寸圖片幻燈片

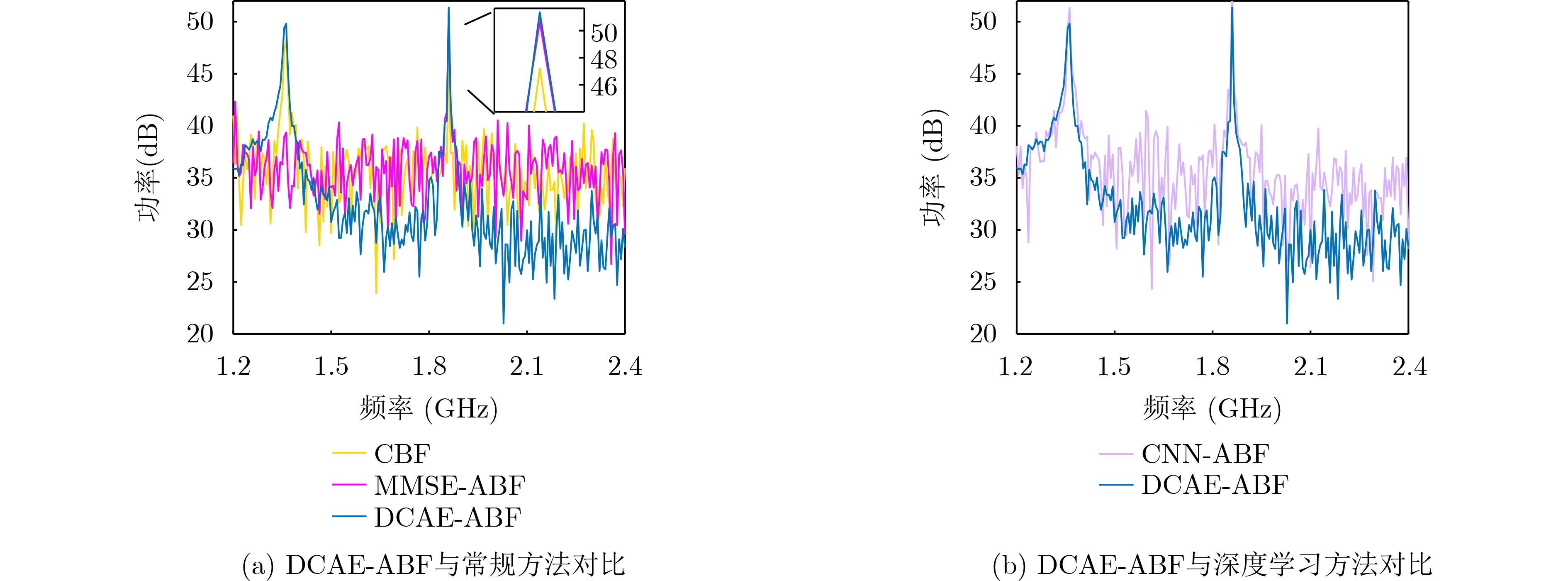

圖 6 4種方法處理后的雙信號頻譜對比

下載: 全尺寸圖片幻燈片

表 1 超參數對輸入測試結果帶來的部分影響

自編碼器層數	訓練時間	CDAE 學習率	DNN 學習率	CAE 學習率	信噪比增益(dB)
3層	適中	0.00007	0.0003	0.00003	20.9
		0.00008	0.0004	0.00004	21.08
		0.00009	0.0005	0.00005	21.56
		0.0001	0.0006	0.00006	21.13
4層	較長	0.00007	0.0003	0.00003	16.12
		0.00008	0.0004	0.00004	16.13
		0.00009	0.0005	0.00005	16.17
		0.0001	0.0006	0.00006	16.68

下載: 導出CSV

表 2 DCAE網絡訓練過程中的超參數

神經 網絡	初始學習率	學習率衰減率	網絡層數
CDAE	0.00009	0.95	3層
DNN	0.0005	–	3層
CAE	0.00005	–	3層

下載: 導出CSV

表 3 DCAE網絡的特征結構

		輸入形狀	輸出形狀
陣列接收信號自編碼器網絡的解碼器部分	輸入層	1×3200	–
	卷積層1	1×3200	1×3200×64
	池化層1	1×3200×64	1×800×64
	卷積層2	1×800×64	1×800×64
	池化層2	1×800×64	1×400×64
	卷積層3	1×400×64	1×400×32
	池化層3	1×400×32	1×200×32
DNN連接部分	數據展平	1×200×32	1×6400
	全連接層1	1×6400	1×4800
	全連接層2	1×4800	1×3200
	全連接層3	1×3200	1×1600
	數據重構	1×1600	1×50×32
輻射源原始信號自編碼器網絡的解碼器部分	反池化層1	1×50×32	1×100×32
	反卷積層1	1×100×32	1×100×64
	反池化層2	1×100×64	1×200×64
	反卷積層2	1×200×64	1×200×64
	反池化層3	1×200×64	1×400×64
	反卷積層3	1×400×64	1×400
	輸出層	1×400	1×400

下載: 導出CSV

參考文獻(18)

[1]	唐敏, 齊棟, 劉成城, 等. 基于多級阻塞的穩健相干自適應波束形成[J]. 電子與信息學報, 2019, 41(7): 1705–1711. doi: 10.11999/JEIT180332. TANG Min, QI Dong, LIU Chengcheng, et al. New adaptive beamformer for coherent interference based on multistage blocking[J]. Journal of Electronics & Information Technology, 2019, 41(7): 1705–1711. doi: 10.11999/JEIT180332.
[2]	沈季, 萬顯榮, 易建新, 等. 復雜干擾場景下的穩健自適應波束形成[J]. 系統工程與電子技術, 2023, 45(4): 941–949. doi: 10.12305/j.issn.1001-506X.2023.04.01. SHEN Ji, WAN Xianrong, YI Jianxin, et al. Robust adaptive beamforming in complex interference scenarios[J]. Systems Engineering and Electronics, 2023, 45(4): 941–949. doi: 10.12305/j.issn.1001-506X.2023.04.01.
[3]	WU Xun, ZHANG Shurui, MA Xiaofeng, et al. The adaptive wideband beamforming using convolutional neural network[C]. Proceedings of 2022 International Conference on Microwave and Millimeter Wave Technology, Harbin, China, 2022: 1–3. doi: 10.1109/ICMMT55580.2022.10022889.
[4]	王兆彬, 鞏朋成, 鄧薇, 等. 聯合協方差矩陣重構和ADMM的魯棒波束形成[J]. 哈爾濱工業大學學報, 2023, 55(4): 64–71. doi: 10.11918/202107104. WANG Zhaobin, GONG Pengcheng, DENG Wei, et al. Robust beamforming by joint covariance matrix reconstruction and ADMM[J]. Journal of Harbin Institute of Technology, 2023, 55(4): 64–71. doi: 10.11918/202107104.
[5]	GODARA L C. Application of antenna arrays to mobile communications. II. Beam-forming and direction-of-arrival considerations[J]. Proceedings of the IEEE, 1997, 85(8): 1195–1245. doi: 10.1109/5.622504.
[6]	ZAHARIS Z D, GRAVAS I P, LAZARIDIS P I, et al. An effective modification of conventional beamforming methods suitable for realistic linear antenna arrays[J]. IEEE Transactions on Antennas and Propagation, 2020, 68(7): 5269–5279. doi: 10.1109/TAP.2020.2977822.
[7]	SENTHILKUMAR K S, PIRAPAHARAN K, HOOLE P R P, et al. Single perceptron model for smart beam forming in array antennas[J]. International Journal of Electrical and Computer Engineering (IJECE), 2016, 6(5): 2300–2309. doi: 10.11591/ijece.v6i5.10719.
[8]	EL ZOOGHBY A H, CHRISTODOULOU C G, and GEORGIOPOULOS M. A neural network-based smart antenna for multiple source tracking[J]. IEEE Transactions on Antennas and Propagation, 2000, 48(5): 768–776. doi: 10.1109/8.855496.
[9]	RAMEZANPOUR P, REZAEI M J, and MOSAVI M R. Deep‐learning‐based beamforming for rejecting interferences[J]. IET Signal Processing, 2020, 14(7): 467–473. doi: 10.1049/iet-spr.2019.0495.
[10]	SALLOMI A H and AHMED S. Multi-layer feed forward neural network application in adaptive beamforming of smart antenna system[C]. Proceedings of 2016 Al-Sadeq International Conference on Multidisciplinary in IT and Communication Science and Applications, Baghdad, Iraq, 2016: 1–6. doi: 10.1109/AIC-MITCSA.2016.7759925.
[11]	MOHAMMADZADEH S, NASCIMENTO V H, DE LAMARE R C, et al. Robust beamforming based on complex-valued convolutional neural networks for sensor arrays[J]. IEEE Signal Processing Letters, 2022, 29: 2108–2112. doi: 10.1109/LSP.2022.3212637.
[12]	MALLIORAS I, ZAHARIS Z D, LAZARIDIS P I, et al. A novel realistic approach of adaptive beamforming based on deep neural networks[J]. IEEE Transactions on Antennas and Propagation, 2022, 70(10): 8833–8848. doi: 10.1109/TAP.2022.3168708.
[13]	ZAHARIS Z D, SKEBERIS C, XENOS T D, et al. Design of a novel antenna array beamformer using neural networks trained by modified adaptive dispersion invasive weed optimization based data[J]. IEEE Transactions on Broadcasting, 2013, 59(3): 455–460. doi: 10.1109/TBC.2013.2244793.
[14]	梁夢薇, 何勁, 舒汀, 等. 陣元位置互質的線性陣列: 陣列校正和波束形成[J]. 電子與信息學報, 2024, 46(1): 240–248. doi: 10.11999/JEIT221539. LIANG Mengwei, HE Jin, SHU Ting, et al. Linear coprime sensor location arrays: Array calibration and beamforming[J]. Journal of Electronics & Information Technology, 2024, 46(1): 240–248. doi: 10.11999/JEIT221539.
[15]	陳鵬, 景曉簪, 陳洋, 等. 穩健的特征空間基變換自適應波束形成[J]. 哈爾濱工業大學學報, 2023, 55(5): 71–77,113. doi: 10.11918/202112102. CHEN Peng, JING Xiaozan, CHEN Yang, et al. Robust eigenspace bases transition technique for adaptive beamforming[J]. Journal of Harbin Institute of Technology, 2023, 55(5): 71–77,113. doi: 10.11918/202112102.
[16]	ZHU Yi, WU Xindong, QIANG Jipeng, et al. Representation learning via an integrated autoencoder for unsupervised domain adaptation[J]. Frontiers of Computer Science, 2023, 17(5): 175334. doi: 10.1007/s11704-022-1349-5.
[17]	LU Cai, MU Zuochen, ZONG Jingjing, et al. Unsupervised VSP up-and downgoing wavefield separation via dual convolutional autoencoders[J]. IEEE Transactions on Geoscience and Remote Sensing, 2024, 62: 5900315. doi: 10.1109/TGRS.2023.3334309.
[18]	AL KASSIR H, ZAHARIS Z D, LAZARIDIS P I, et al. A review of the state of the art and future challenges of deep learning-based beamforming[J]. IEEE Access, 2022, 10: 80869–80882. doi: 10.1109/ACCESS.2022.3195299.
