LoRa網絡中基于深度強化學習的信息年齡優化

程克非; 陳彩蝶; 羅佳; 陳前斌

doi:10.11999/JEIT240404

LoRa網絡中基于深度強化學習的信息年齡優化

doi: 10.11999/JEIT240404 cstr: 32379.14.JEIT240404

程克非¹,
陳彩蝶¹,
羅佳^{1, 2, ,},
陳前斌²

1.
重慶郵電大學網絡空間安全與信息法學院重慶 400065
2.
重慶郵電大學通信與信息工程學院移動通信技術重點實驗室重慶 400065

基金項目: 重慶市教委科學技術研究項目(KJQN202400643)

詳細信息

作者簡介:
程克非：男，博士生導師，研究方向?yàn)闊o線通信網絡、云計算與大數據、嵌入式系統及應用、網絡空間安全等

陳彩蝶：女，碩士生，研究方向?yàn)長oRa物聯網

羅佳：男，講師，博士，研究方向?yàn)橄乱淮鸁o線通信網絡、人工智能、區塊鏈等

陳前斌：男，教授，博士生導師，研究方向?yàn)閭€(gè)人通信、多媒體信息處理與傳輸、異構蜂窩網絡等

通訊作者:
羅佳　s220802003@stu.cqupt.edu.cn

中圖分類號: TN929.5
計量
- 文章訪問數: 393
- HTML全文瀏覽量: 173
- PDF下載量: 28
- 被引次數: 0
出版歷程
- 收稿日期: 2024-04-04
- 修回日期: 2025-01-08
- 網絡出版日期: 2025-01-25
- 刊出日期: 2025-02-28

Optimizing Age of Information in LoRa Networks via Deep Reinforcement Learning

1.
School of Cyber Security and Information Law, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
Key Laboratory of Mobile Communication Technology, School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Funds: The Science and Technology Research Program of Chongqing Municipal Education Commission (KJQN202400643)

摘要

摘要: 信息年齡(AoI)是信息新鮮度的衡量指標，針對時間敏感的物聯網，最小化AoI顯得尤為重要。該文基于LoRa網絡的智能交通環境，分析Slot-Aloha協議下的AoI優化策略，建立了Slot-Aloha協議下數據包之間傳輸碰撞和等待時間的系統模型。通過分析指出，在LoRa上行傳輸過程中，隨著數據包數量增多，AoI主要受到數據包碰撞影響。為克服優化問題中動作空間過大導致難以實現有效求解的問題，該文采用連續動作空間映射離散動作空間的方式，使用柔性動作-評價 (SAC)算法對LoRa網絡下的AoI進行優化。仿真結果顯示，SAC算法優于傳統算法與傳統深度強化學習算法，可有效降低網絡的平均AoI。
- 信息年齡 /
- LoRa /
- 柔性動作-評價算法 /
- 深度強化學習 /
- 優化策略
Abstract: Age of Information (AoI) quantifies information freshness, which is critical for time-sensitive Internet of Things (IoT) applications. This paper investigates AoI optimization in an LoRa network under the Slot-Aloha protocol in an intelligent transportation environment. A system model is established to characterize transmission collisions and packet waiting times. Analytical results indicate that in LoRa uplink transmission, as the number of packets increases, AoI is primarily influenced by packet collisions. To address the challenge of a large action space hindering effective solutions, this study maps the continuous action space to a discrete action space and employs the Soft Actor-Critic (SAC) algorithm for AoI optimization. Simulation results demonstrate that the SAC algorithm outperforms conventional algorithms and traditional deep reinforcement learning approaches, effectively reducing the network’s average AoI. Objective With the rapid development of intelligent transportation systems, ensuring the real-time availability and accuracy of traffic data has become essential, particularly in transmission systems for traffic monitoring cameras and related equipment. Long-range, low-power radio frequency (LoRa) networks have emerged as a key technology for sensor connectivity in intelligent transportation due to their advantages of low power consumption, wide coverage, and long-distance communication. However, in urban environments, LoRa networks are prone to frequent data collisions when multiple devices transmit simultaneously, which affects information timeliness and, consequently, the effectiveness of traffic management decisions. This study focuses on optimizing data packet timeliness in LoRa networks to enhance communication efficiency. Specifically, it aims to improve AoI under the Slotted Aloha protocol by analyzing the effects of packet collisions and over-the-air transmission time. Based on this analysis, an optimization method using deep reinforcement learning is proposed, employing the SAC algorithm to minimize AoI. The goal is to achieve lower latency and a higher data transmission success rate in an intelligent transportation environment with frequent data transmissions, thereby improving overall system performance and ensuring real-time information availability to meet the freshness requirements of intelligent transportation systems. Method To address the requirements for information freshness in intelligent transportation scenarios, this study investigates the optimization of packet AoI in LoRa networks under the Slotted Aloha protocol. A system model is established to analyze packet collisions and over-the-air transmission time, providing theoretical support for enhancing information transmission efficiency. Given the Markovian nature of AoI evolution, the optimization problem is formulated as a Markov Decision Process (MDP) and solved using the SAC algorithm in deep reinforcement learning. Results and Discussions The study examines AoI variations during collisions (Fig. 2) and develops a collision model for data packet transmission (Fig. 4). Simulation results indicate that the SAC algorithm outperforms the Temporal Difference (TD) algorithm and conventional methods (Fig. 6). As the number of terminals increases, the system’s average AoI also increases (Fig. 7). Additionally, the variations in average AoI under different time slots for the SAC and TD3 algorithms are analyzed (Fig. 8). Conclusions Given the limited research on AoI in LoRa networks, this study examines the AoI optimization problem in LoRa uplink packet transmission within an intelligent traffic management environment and proposes a packet collision model under the Slotted Aloha protocol. The greedy algorithm and SAC algorithm are employed for AoI optimization. Simulation results demonstrate that the greedy algorithm outperforms conventional deep reinforcement learning algorithms but remains less effective than the SAC algorithm. The SAC algorithm significantly improves AoI optimization in LoRa networks. However, this study focuses solely on AoI optimization without considering energy consumption and packet loss rate. Future research should explore the trade-offs between energy efficiency, packet loss, and AoI optimization to minimize energy consumption and data loss. Additionally, this study does not address heterogeneous network scenarios. In environments where LoRa networks coexist with other communication technologies (e.g., Wi-Fi, Bluetooth, NB-IoT), challenges related to interoperability, data consistency, and network management arise. Investigating AoI optimization in heterogeneous transmission environments could further enhance the performance and reliability of LoRa networks in complex applications such as intelligent traffic management.
- Age of Information (AoI) /
- LoRa /
- Soft Actor-Critic algorithm (SAC) /
- Deep reinforcement learning /
- Optimization strategy

HTML全文

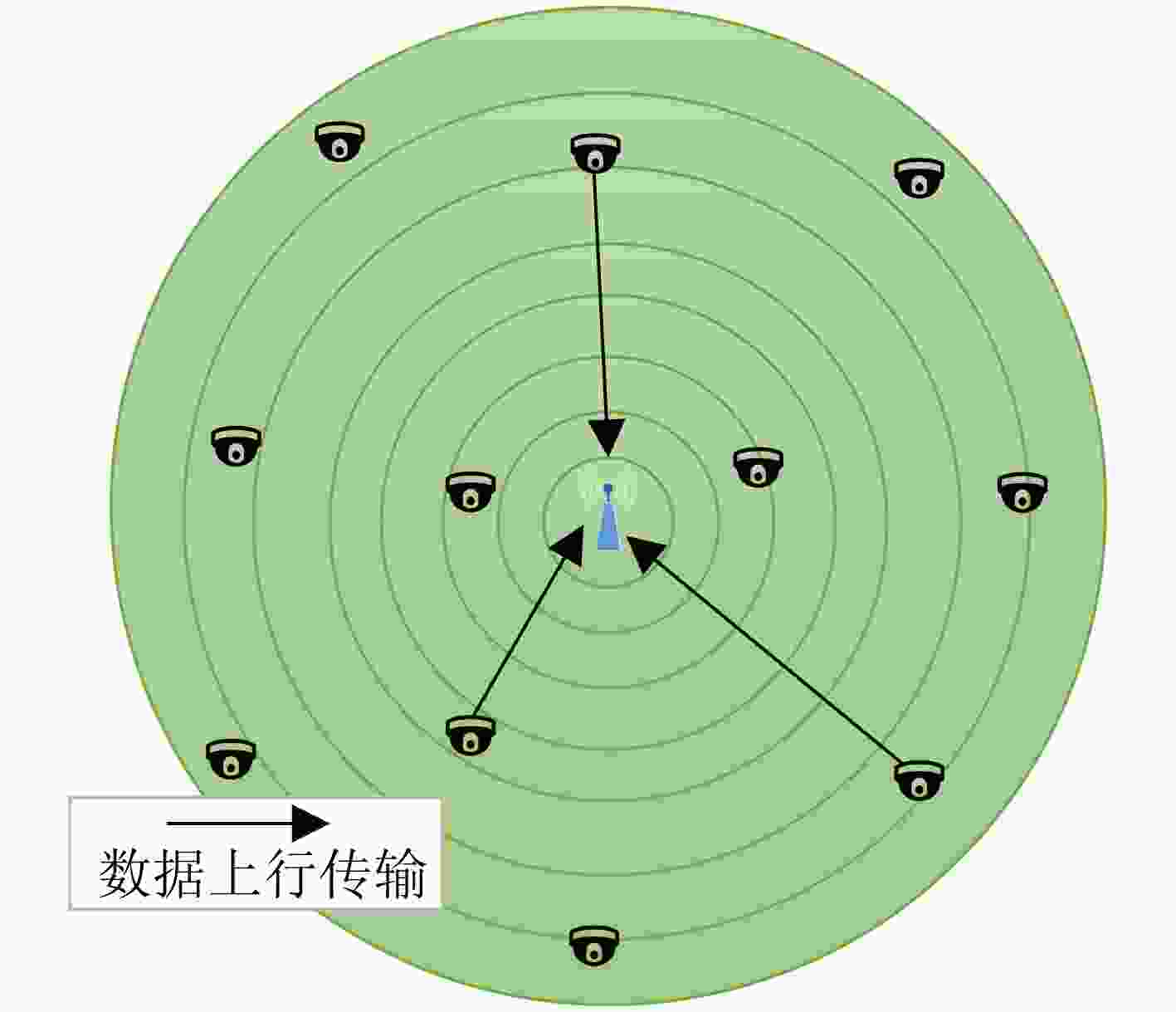

圖 1 系統模型

下載: 全尺寸圖片幻燈片

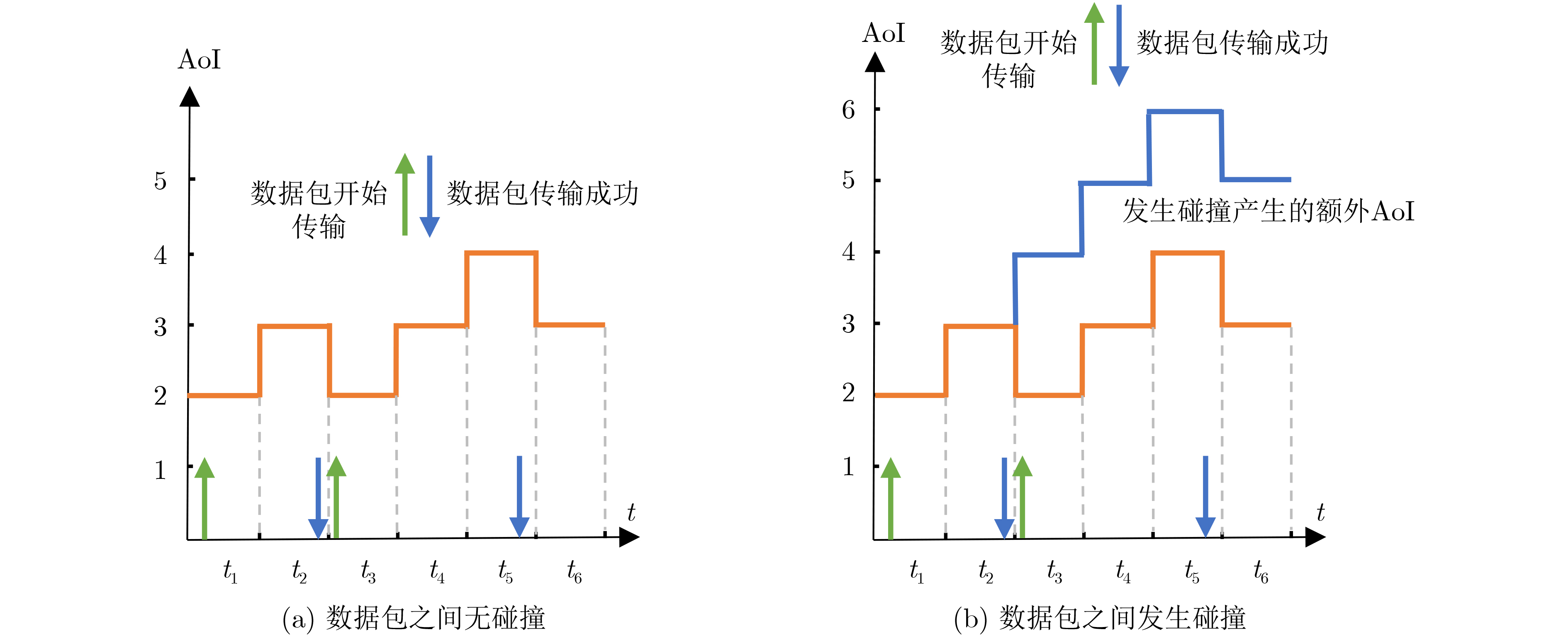

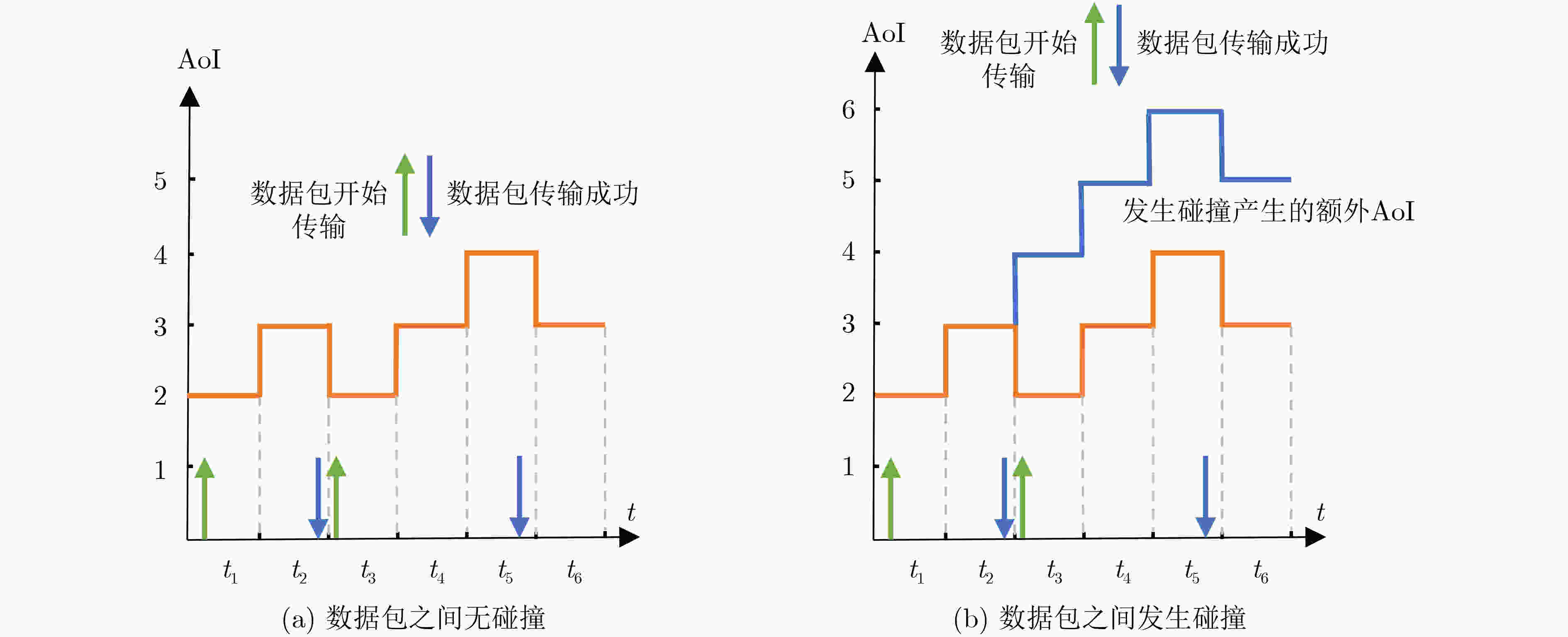

圖 2 基于時隙Aloha的數據包AoI變化情況

下載: 全尺寸圖片幻燈片

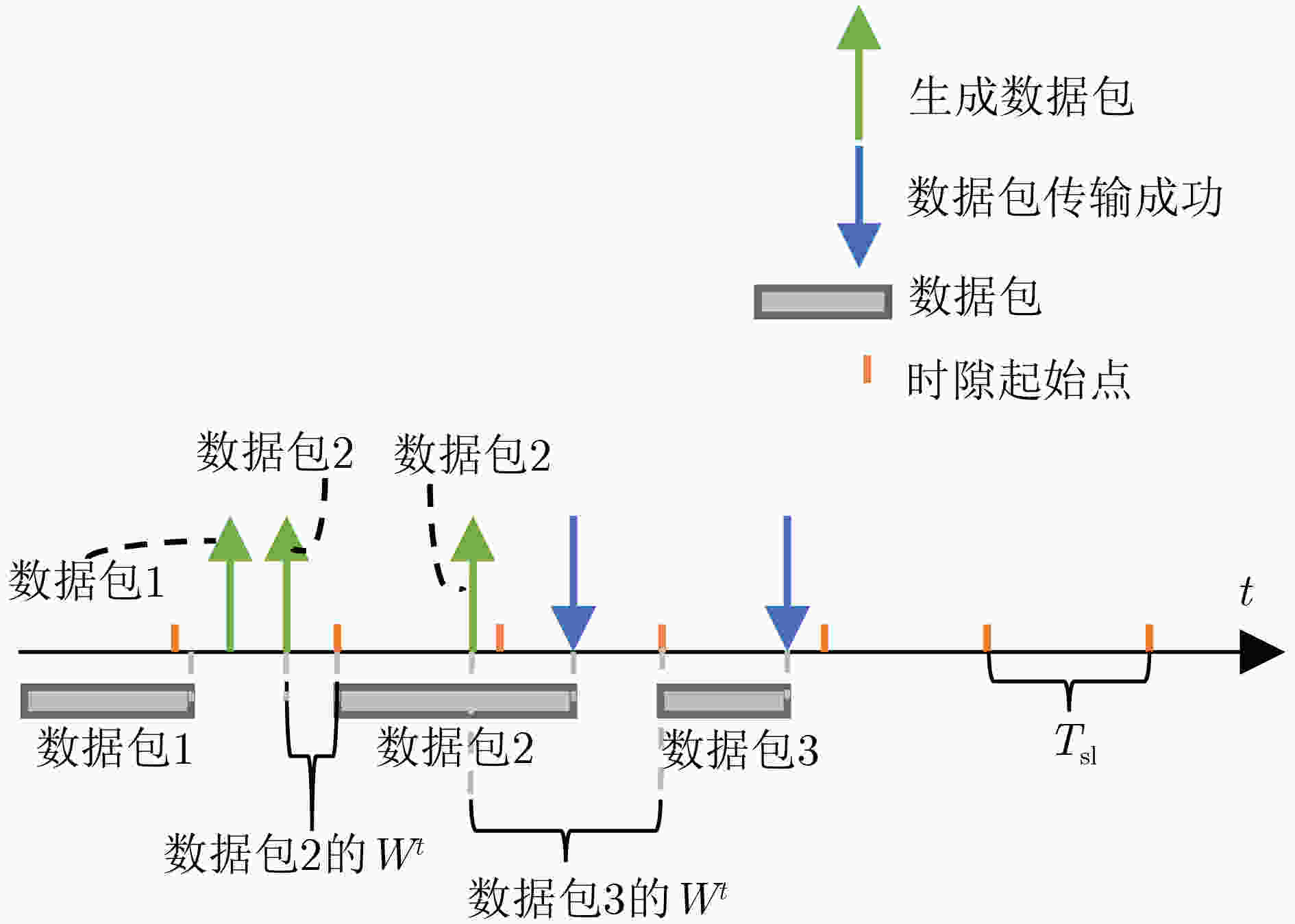

圖 3 數據包傳輸情況

下載: 全尺寸圖片幻燈片

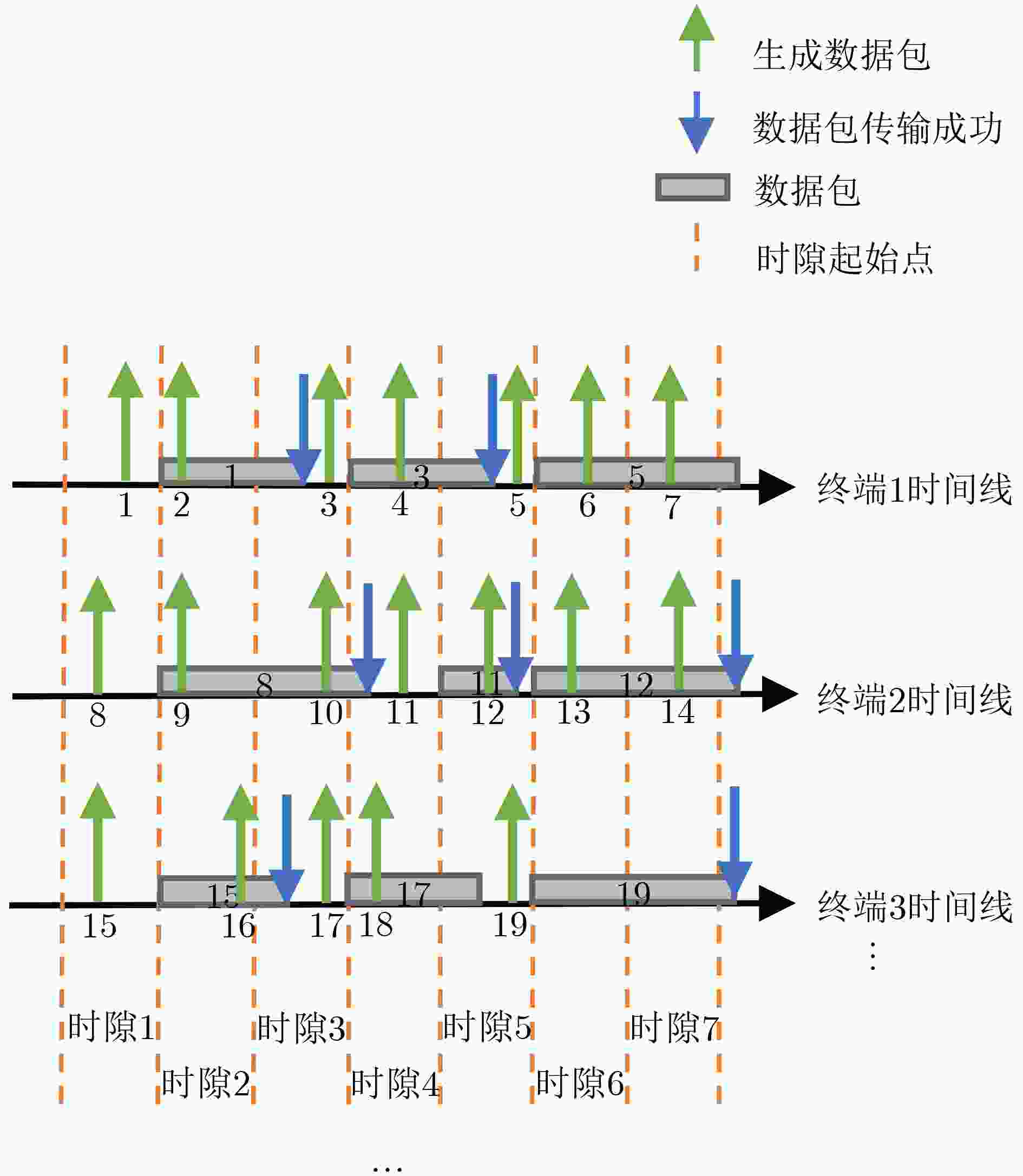

圖 4 各終端數據包傳輸情況

下載: 全尺寸圖片幻燈片

圖 5 狀態轉移圖

下載: 全尺寸圖片幻燈片

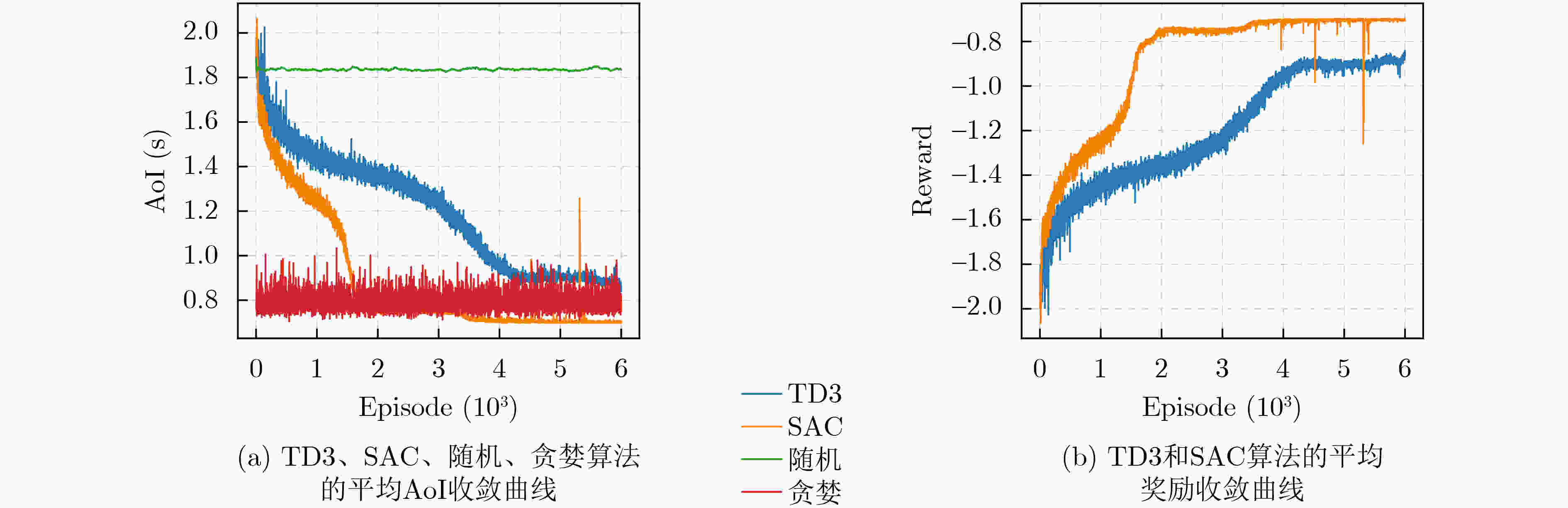

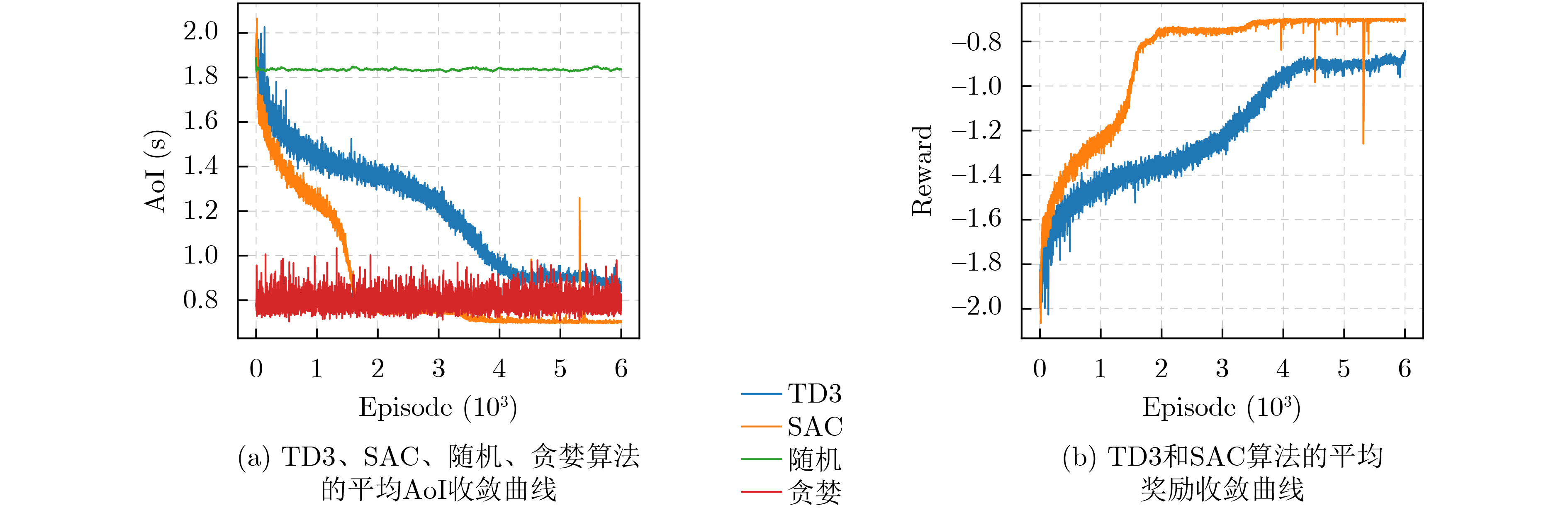

圖 6 不同算法的收斂曲線

下載: 全尺寸圖片幻燈片

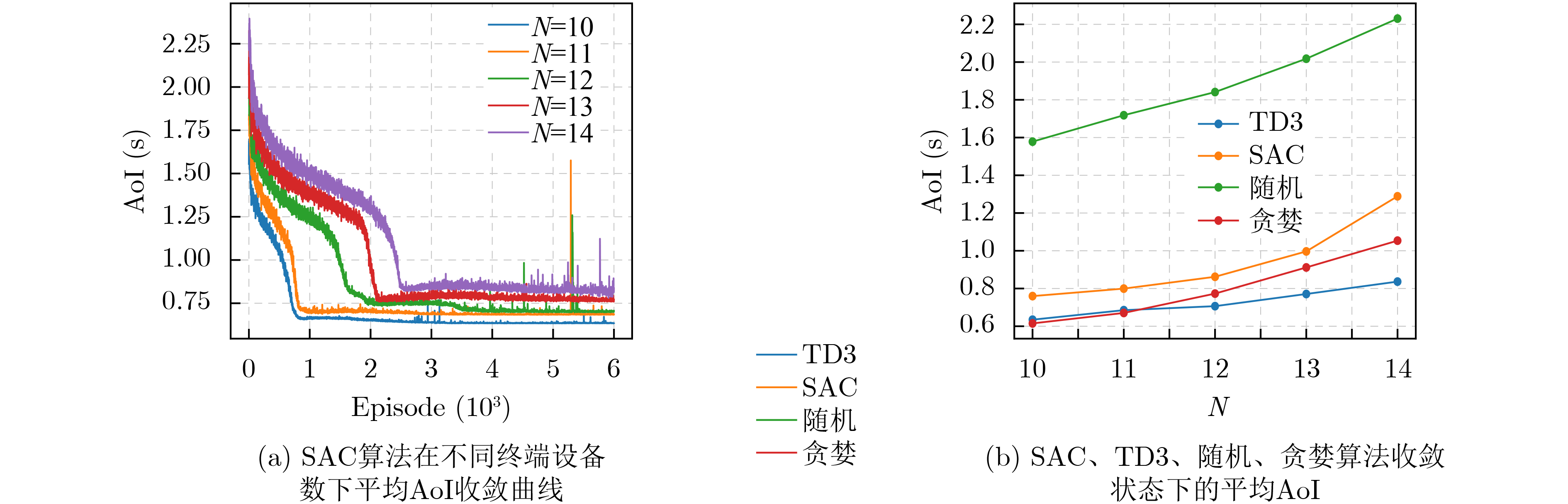

圖 7 不同終端數量下的AoI

下載: 全尺寸圖片幻燈片

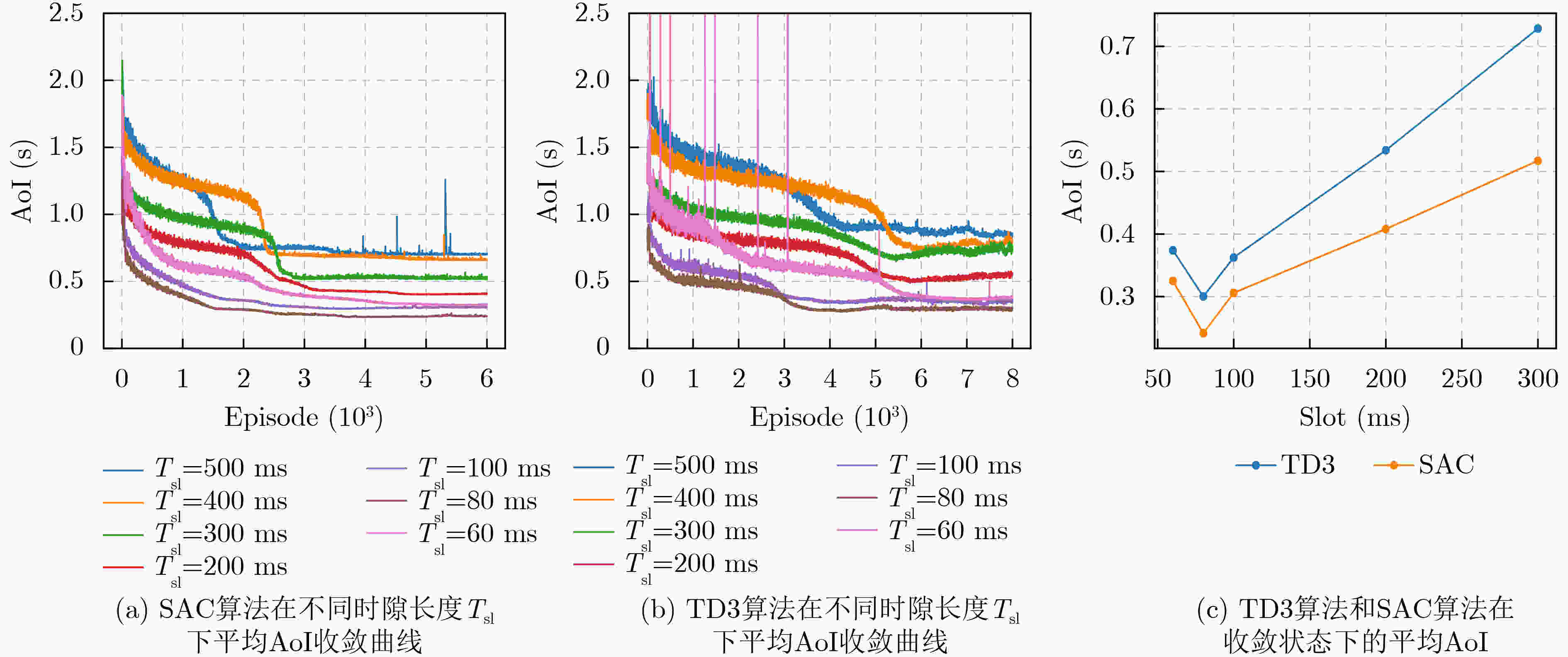

圖 8 TD3算法和SAC算法在不同時隙長度$ {T}_{\mathrm{s}\mathrm{l}} $下平均AoI變化

下載: 全尺寸圖片幻燈片

表 1 空中傳輸時間

SF	7	8	9	10	11	12
$ {T}^{\mathrm{a}} $ (ms)	73.1	128	227.6	409.6	744.7	1365.3

下載: 導出CSV

1 貪婪算法

輸入：終端集合$ \mathrm{s}\mathrm{e}\mathrm{n}\mathrm{s}\mathrm{o}\mathrm{r}\mathrm{s}=\{{\mathrm{s}\mathrm{e}\mathrm{n}}_{1},{\mathrm{s}\mathrm{e}\mathrm{n}}_{2},\cdots ,{\mathrm{s}\mathrm{e}\mathrm{n}}_{n}\} $
輸出：每個終端分配的SF和信道集合
$ \mathrm{r}\mathrm{e}\mathrm{s}\mathrm{u}\mathrm{l}\mathrm{t}=\{\left({\mathrm{S}\mathrm{F}}_{1},{C}_{1}\right),\left({\mathrm{S}\mathrm{F}}_{2},{C}_{2}\right),\cdots ,({\mathrm{S}\mathrm{F}}_{n},{C}_{n}\left)\right\} $
(1) $ \mathrm{r}\mathrm{e}\mathrm{s}\mathrm{u}\mathrm{l}\mathrm{t} \leftarrow \mathrm{\varnothing },\mathrm{s}\mathrm{f}\in \left\{\mathrm{7,8},\cdots ,12\right\},\mathrm{信}\mathrm{道}C\in \{\mathrm{0,1},\cdots, c\} $
(2) $ \bf{f}\bf{o}\bf{r}\;i=\mathrm{1,2},\cdots ,N\;\bfq7j3ldu95\bf{o} $
(3) 　$ {\mathrm{S}\mathrm{F}}_{i}\leftarrow \mathrm{隨}\mathrm{機}\mathrm{從}{\bf{s}\bf{f}}\mathrm{集}\mathrm{合}\mathrm{中}\mathrm{選}\mathrm{擇} $
(4) 　$ {{C}}_{i}\leftarrow \mathrm{隨}\mathrm{機}\mathrm{從}C\mathrm{集}\mathrm{合}\mathrm{中}\mathrm{選}\mathrm{擇} $
(5) 　$ \mathrm{r}\mathrm{e}\mathrm{s}\mathrm{u}\mathrm{l}\mathrm{t}\leftarrow \mathrm{r}\mathrm{e}\mathrm{s}\mathrm{u}\mathrm{l}\mathrm{t}\cup ({\mathrm{S}\mathrm{F}}_{i},{C}_{i}) $
(6) $ \bf{e}\bf{n}\bfq7j3ldu95\;\bf{f}\bf{o}\bf{r} $
(7) $ \bf{f}\bf{o}\bf{r}\;j=\mathrm{1,2},\cdots ,N\;\bfq7j3ldu95\bf{o} $
(8) 　記錄第$ j $時隙下最優的SF $ {\mathrm\mathrm{e}\mathrm{s}\mathrm{t}{\mathrm{SF}}}_{j}=0 $
(9) 　記錄第$ j $時隙下最優的信道C $ {\mathrm\mathrm{e}\mathrm{s}\mathrm{t}C}_{j}=0 $
(10) 　$ \mathrm{m}\mathrm{i}\mathrm{n}\mathrm{ }\mathrm{ }\mathrm{ }\mathrm{ }\mathrm{ }\mathrm{ }\mathrm{a}\mathrm{v}\mathrm{g}\mathrm{A}\mathrm{o}\mathrm{I}=\mathrm{M}\_\mathrm{I}\mathrm{N}\mathrm{T} $
(11) 　$ \bf{f}\bf{o}\bf{r}\;\mathrm{s}\mathrm{f}\mathrm{ }\leftarrow \mathrm{ }\mathrm{ }\mathrm{ }\mathrm{ }\mathrm{ }\mathrm{ }7\;\mathrm{t}\mathrm{o}\;12\;\bfq7j3ldu95\bf{o} $
(12) 　　$ \bf{f}\bf{o}\bf{r}\;C\leftarrow 0\;\mathrm{t}\mathrm{o}\;c\;\bfq7j3ldu95\bf{o} $
(13) 　　$ \mathrm{a}\mathrm{v}\mathrm{g}\mathrm{A}\mathrm{o}\mathrm{I}=\mathrm{a}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{g}\mathrm{e}\left(\mathrm{A}\mathrm{o}\mathrm{I}\right) $
(14) 　　$ \text{if avgAoI < minavgAoI} $
(15) 　　　$ \text{minavgAoI=avgAoI} $
(16) 　　　$ {\mathrm\mathrm{e}\mathrm{s}\mathrm{t}\mathrm{S}\mathrm{F}}_{j}=\mathrm{s}\mathrm{f} $
(17) 　　　$ {\mathrm\mathrm{e}\mathrm{s}\mathrm{t}C}_{j}=C $
(18) 　　$ \bf{end}\;\bf{f}\bf{o}\bf{r} $
(19) 　　$ \bf{e}\bf{n}\bfq7j3ldu95\;\bf{f}\bf{o}\bf{r} $
(20) 　$ \mathrm{r}\mathrm{e}\mathrm{s}\mathrm{u}\mathrm{l}\mathrm{t}\leftarrow \mathrm{r}\mathrm{e}\mathrm{s}\mathrm{u}\mathrm{l}\mathrm{t}\cup ({\mathrm\mathrm{e}\mathrm{s}\mathrm{t}\mathrm{S}\mathrm{F}}_{i},{\mathrm\mathrm{e}\mathrm{s}\mathrm{t}C}_{i}) $
(21) 　$ \bf{e}\bf{n}\bfq7j3ldu95\;\bf{f}\bf{o}\bf{r} $
(22) $ \bf{r}\bf{e}\bf{t}\bf{u}\bf{r}\bf{n}\;\bf{r}\bf{e}\bf{s}\bf{u}\bf{l}\bf{t} $

下載: 導出CSV

表 2 實驗參數值

參數名	值
信道數量($ c $)	2
終端數量($ N $)	12
SF數量	6
編碼率($ \mathrm{C}\mathrm{R} $)	4/5
帶寬($ \mathrm{B}\mathrm{W} $)	125 kHz
數據包大小($ {L}_{\mathrmq7j3ldu95} $)	50 Byte
step總數($ {T}_{\mathrm{s}\mathrm{t}} $)	500
時隙長度($ {T}_{\mathrm{s}\mathrm{l}} $)	500 ms

下載: 導出CSV
